Build Specs

Engine

Porsche 993 3.6 Liter Base Engine, Ceramic Coated Case
Mahle Motorsports X LN Engineering 3.9 Liter Big Bore Cylinders & Pistons
Crankshaft – Cross Drilled, Balanced & Micro Polished
Pauter Lightweight Connecting Rods
Pauter Lightweight Mechanical Rocker Arms
Race Timing Chains
Custom-Spec Purpose Built Camshafts by Webcam
Cylinder Heads – Ported, Larger RS Valves, Race Springs, Titanium Retainers
ARP Cylinder Head Studs
Tarett Engineering Billet Valve Covers
Tarett Engineering Semi-Solid Engine Mounts
Porsche 991 GT3RS Titanium Exhaust Muffler, Valved
Titanium 935 Style Exhaust Tips, Fabricated by SV Auto
Hytech Tuned Headers, Ceramic Coated
Clewett Engineering Serpentine Belt Drive
Fiberglass 911 Engine Shroud Kit
Ceramic Coated Fan Housing & Fan Blade
Porsche 997 GT3 Oil Pump
“Pro Gold” “Ac” Hose Ends & “Pro Gold” “Ar” High-Temperature Polymer Braid Engine Oil & Fuel Lines by BMRS
Dual Engine Oil Cooler System by CSF Cooling

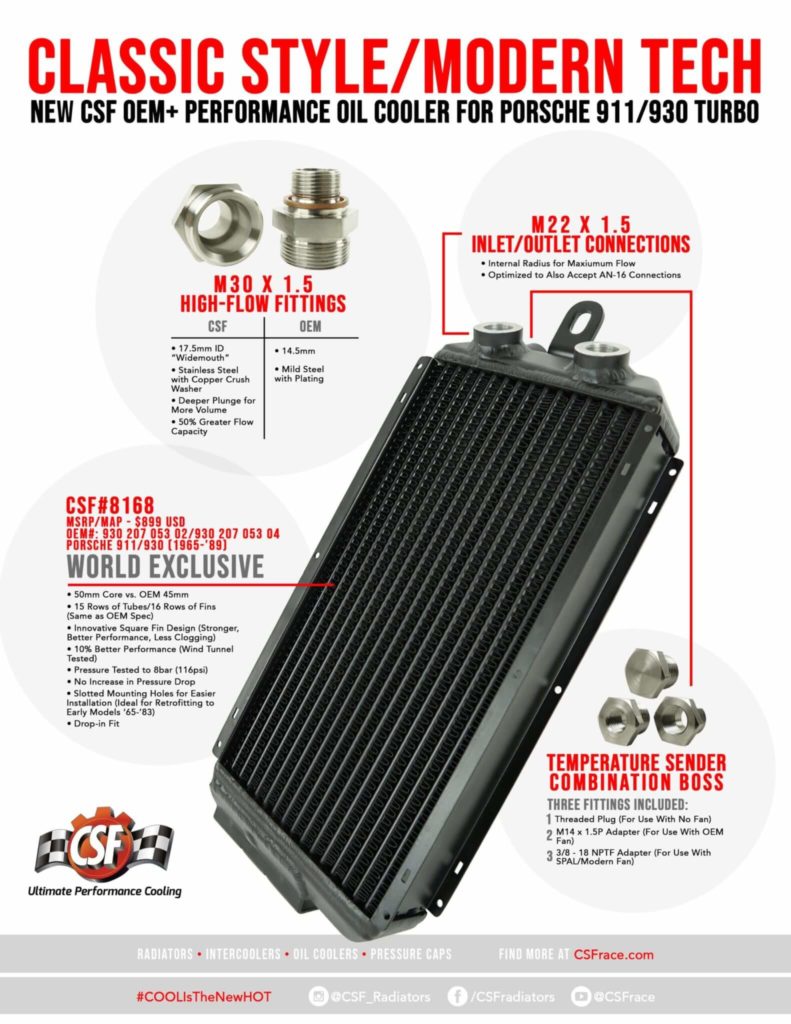

OEM+ Right Fender Oil Cooler (CSF #8168)
‘73 Rs Style Front Center Oil Cooler (CSF #8201)
Spal Electric Cooling Fans for Both Engine Oil Coolers
G50 Transmission, Short Bell Housing Conversion by Patrick Motorsports, Ceramic Coated & Fully Restored
CAE Racing Ultra Shifter for Porsche 993 With Custom Anodized Shift Knob
Billet Transmission Differential Side Cover
Wavetrac Limited Slip Differential
Sachs Performance Clutch Kit
Aasco Motorsports Lightweight Single Mass Flywheel
Race Steel Synchro Rings
Billet Transmission Bracket
Turbo Drive Axles
Bosch Coil On Plug Ignition System
Motec M130 Engine Management with Numerous Fail Safe Features
Rywire Motorsports Electronics Milspec Engine Harness
Rywire Motorsports Electronics Power Control Module
Kinsler Fuel Injection Porsche Gt Individual Throttle Body Manifold Package with Drive-By Wire & Motorsport Actuators
Kinsler Billet Air Intake Plenum with Wiggins Ferrules, Anodized
Custom Anodized Black Wiggins Clamps by BMRS
AEM Fuel Pump
Injector Dynamics 1050X Fuel Injectors

Body

Sunroof Delete

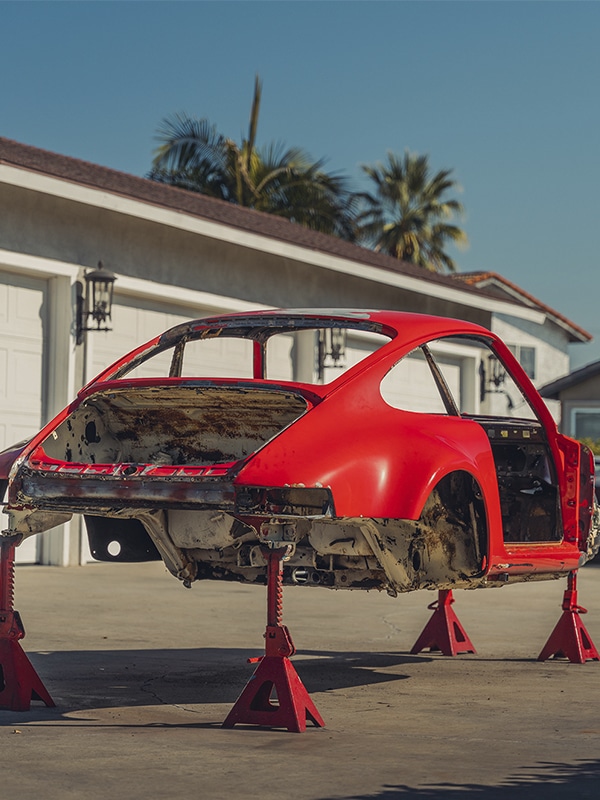

Body Dipped to Bare Metal
Steel Turbo Fender Flares, Hand Fabricated

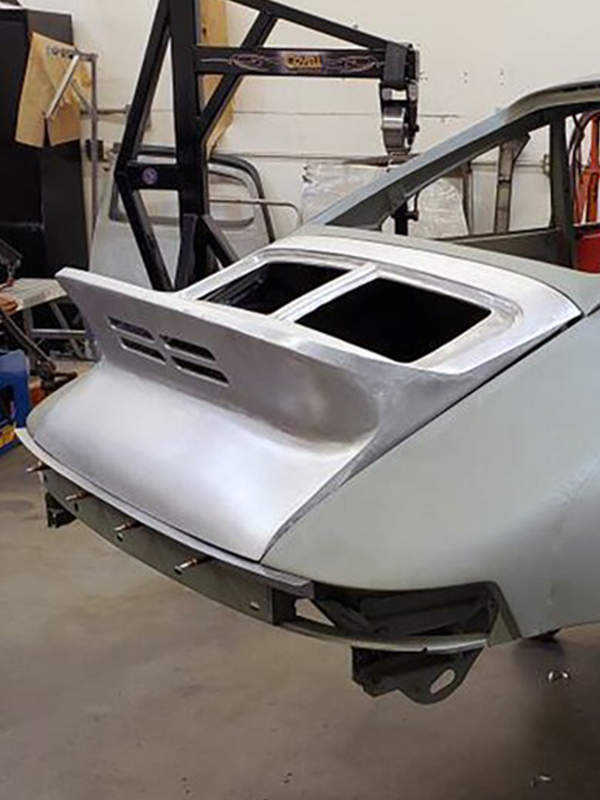

Aluminum Duck Tail, Hand Fabricated

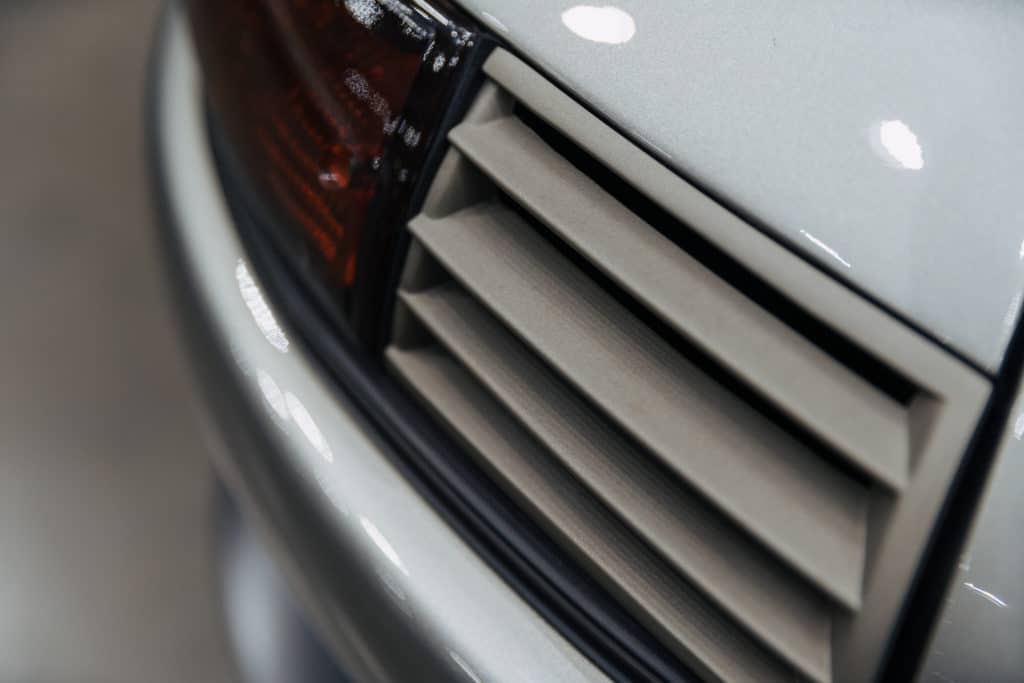

Steel Bumpers, Hand Fabricated with 959 Style Vents & Custom Carbon Fiber Vanes
Aluminum Hood with 959 Gas Door
Reinforced Rear Suspension Mounts
Reinforced Rear Shock Absorber Mounts
Reinforced Turbo Torsion Tube
Early Nose Panel for Long Hood Latch Panel
Front Tub Cut-Out for Proper Airflow Through Front Mounted Engine Oil Cooler
Custom-Made Carbon Fiber Rear Diffuser, Front Spoiler, & Decklid Grille
All Body Exterior Trim Ceramic Coated by Embee Performance
Antigravity H5/Group 47 Lithium Car Battery – 40ah 1500cca, 16 Lbs, With Wi-Fi Tracker & Built-In Charger
Body Wire Harness by Kroon Wiring Harnesses
Rennline Billet Hood & Engine Lid Struts
Achtungkraft Billet Rear View Mirror, Ceramic Coated
Car-Bone Custom Built Dual LED Headlights with Paint-Matched Housings
Classic Retrofit Electric Air Conditioning with Classic Retrofit Under Dash Nozzles and Wosp 175 Amp Billet Alternator
Achtungkraft Aluminum Engine Lid Hinges, Anodized
Hidden Rear Body Harness
Period-Correct OEM Green Tinted Glass

Suspension & Brakes

KW Suspension “Clubsport” Coil Over Adjustable Suspension
Tarett Engineering / E.R.P. RSR Sway Bars, Front & Rear
Tarett Engineering / E.R.P. RSR Front Suspension Kit
Tarett Engineering / E.R.P. 935 Rear Spring Plate Kit
Tarett Engineering / E.R.P. Bump Steer Kit
Elephant Racing 935x Triangulated Strut Brace System
Turbo Tie Rod Kit
Stoptech “Level 3 Street” Brake System – 6 Piston Front, 4 Piston Rear, Anodized
Stoptech Vented Brake Rotors
Stoptech Brake Hoses

INTERIOR

Sparco SPX Seats, Modified and Upholstered by Rogelio’s Auto Upholstery Using Authentic Goyard Handbags for Inserts & Details
Streetfighter LA Fiberglass Interior Panels, Wrapped in Alcantara with Deviating Stitching
Authentic Goyard Rear Seat Pads
Alcantara Headliner
Alcantara Carrera Dash with Deviating Stitching

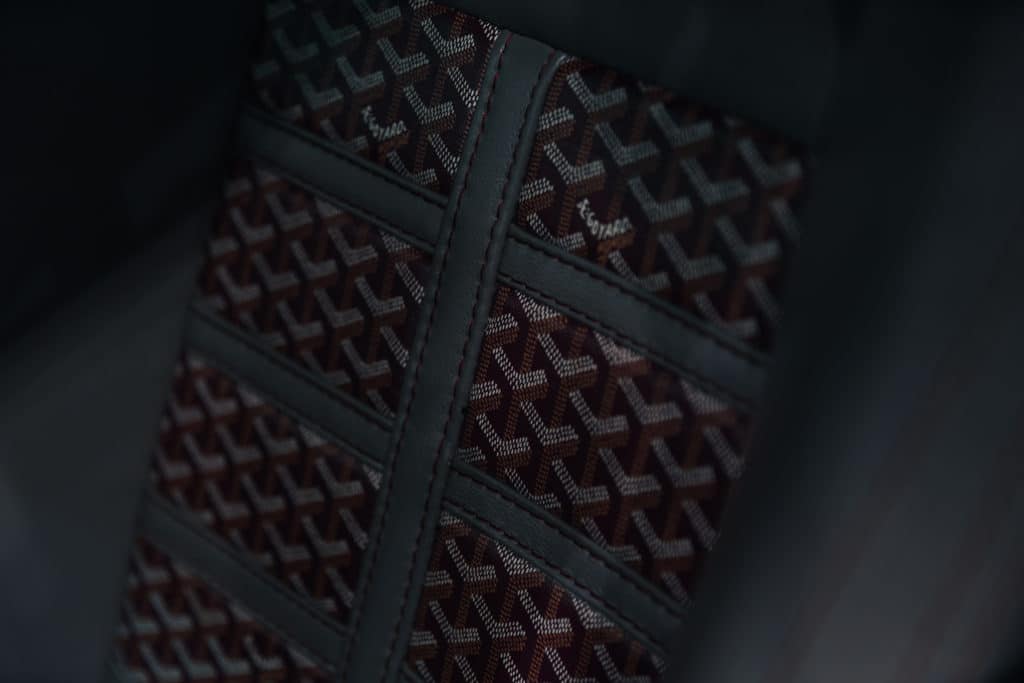

Leather & Alcantara Door Panels with Goyard Trim & Door Pulls
Early 911 Style Green Instruments, Custom Built by North Hollywood Speedometer
German Square Weave Wool Carpets with Leather Binding
Under Dash Area Alcantara Trimmed
Dynamat Double Sound Deadening for Doors, Floors & Ceiling

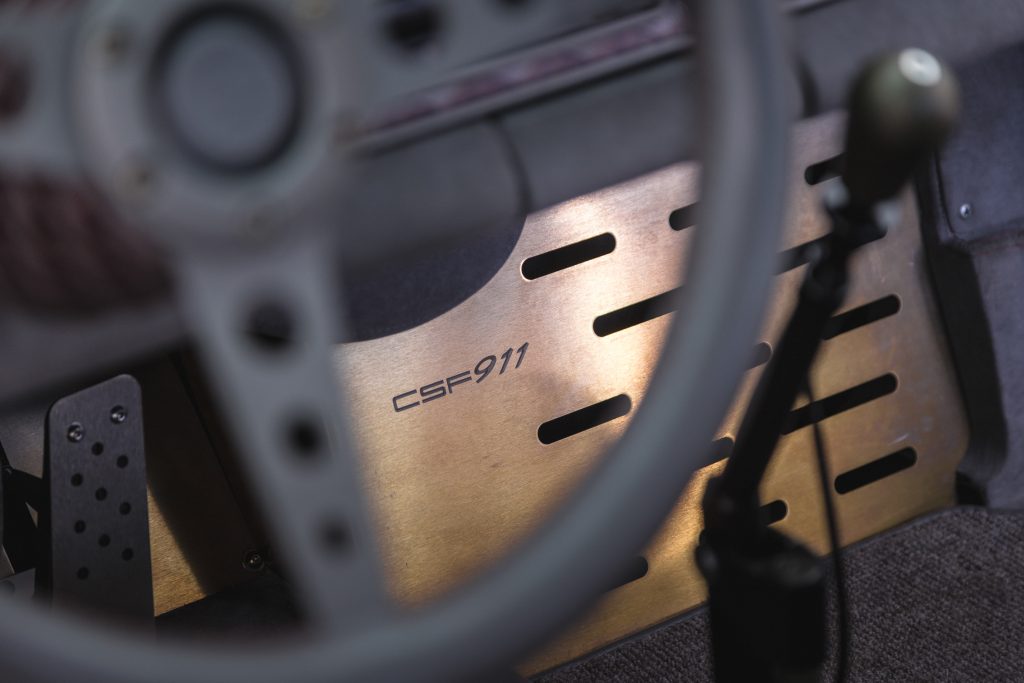

Titanium & Custom Colored Floor Boards & Pedals By Chasing Js
Titanium & Custom Colored Hardware by Chasing Js

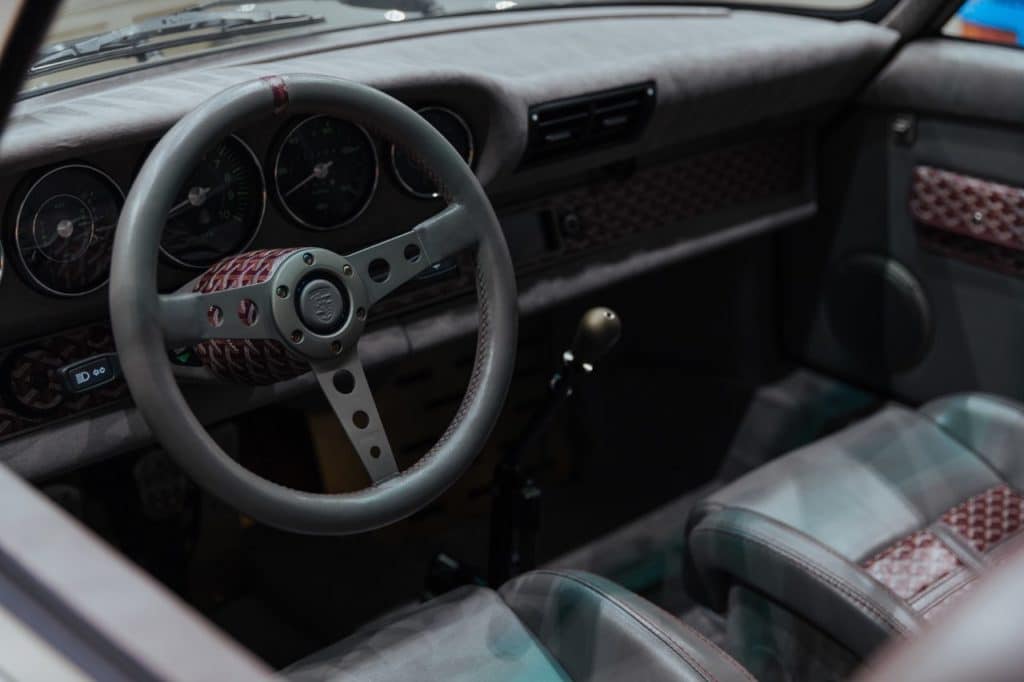

Ceramic Coated Momo Steering Wheel, Wrapped in Leather with Goyard Racing Stripe by Car-Bone
Goyard Trimmed Momo Steering Wheel Adapter
Achtungkraft Radio & Dash Trim, Ceramic Coated, Goyard Trimmed
Porsche Classic Navigation Radio
Rennline Billet HVAC Controls
Rennline Billet Headlight & Glove Box Knobs

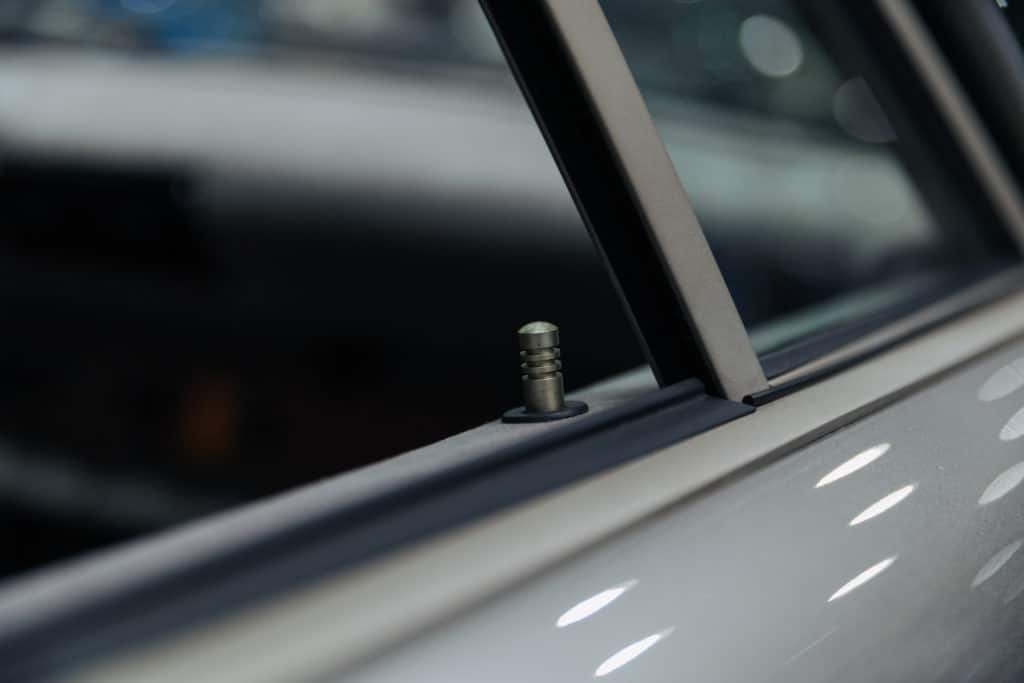

Rennline Billet Engine Lid, Hood & Door Lock Knobs
Sun Visors Trimmed in Alcantara & Goyard by Rogelio’s Auto Upholstery
Repa Seat Belts, Color Matched
Repa 4-Point Race Harnesses (Optional)
GMG Racing Billet Harness Retainers, Anodized
Custom Fabricated Bolt-On Roll Bar with Removable Harness Bar, Ceramic Coated & Trimmed with Goyard
Goyard Trimmed Parking Brake Handle
Car-Bone Trunk Lining Kit, Goyard Trimmed
Stuttgart Classica Billet Indicator/Wiper Stalks

WHEELS & TIRES

Rotiform Custom Designed 17” Centerlock “CMP” 3-Piece Wheels, Ceramic Coated & Anodized
- 17×8.5 Et28
- 17×11 Et 10
Stanceworks Billet Center Lock Wheel Hubs with Safety Pins, Anodized
Falken Azenis RT-660 Tires
- Front 225/45/17
- Rear 275/40/17

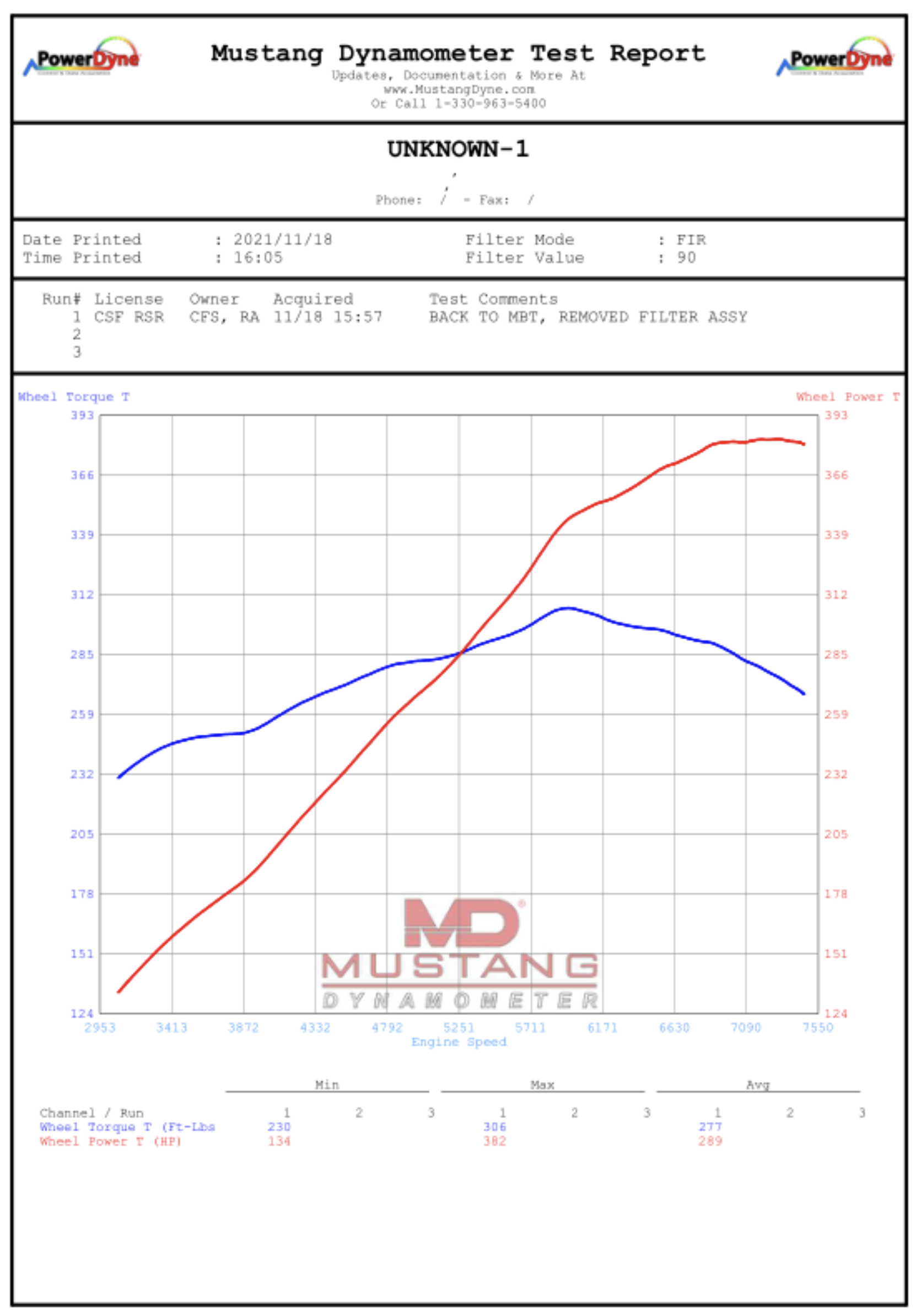

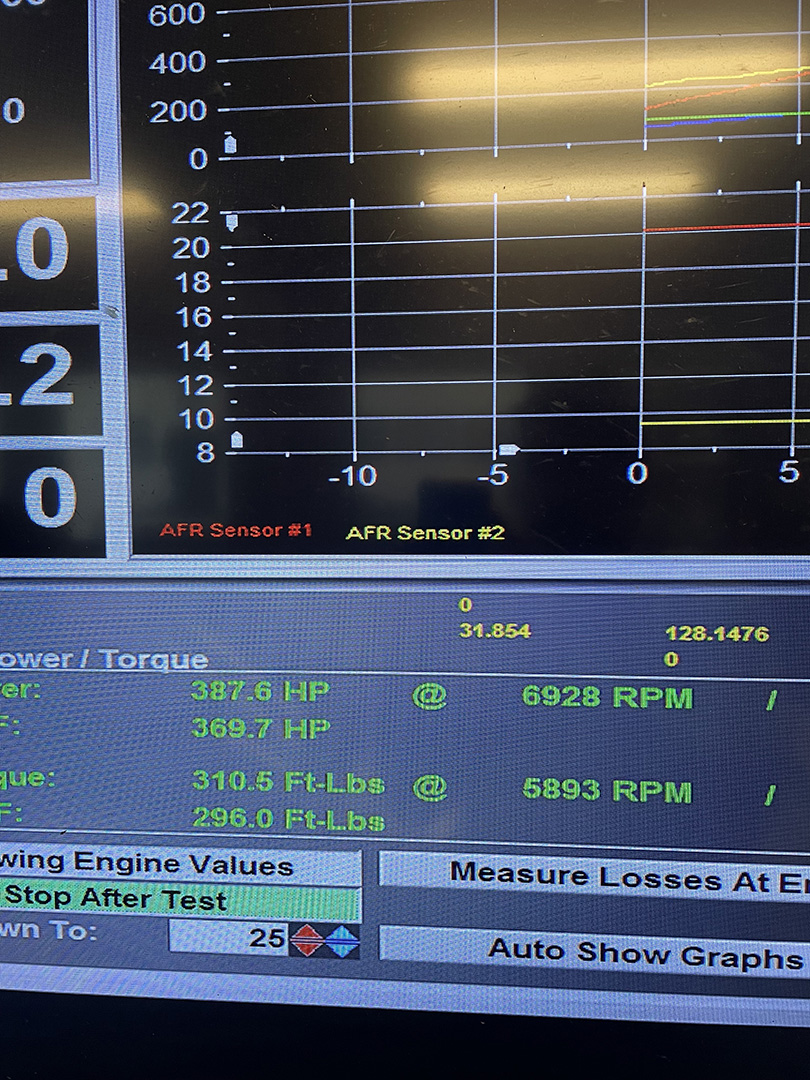

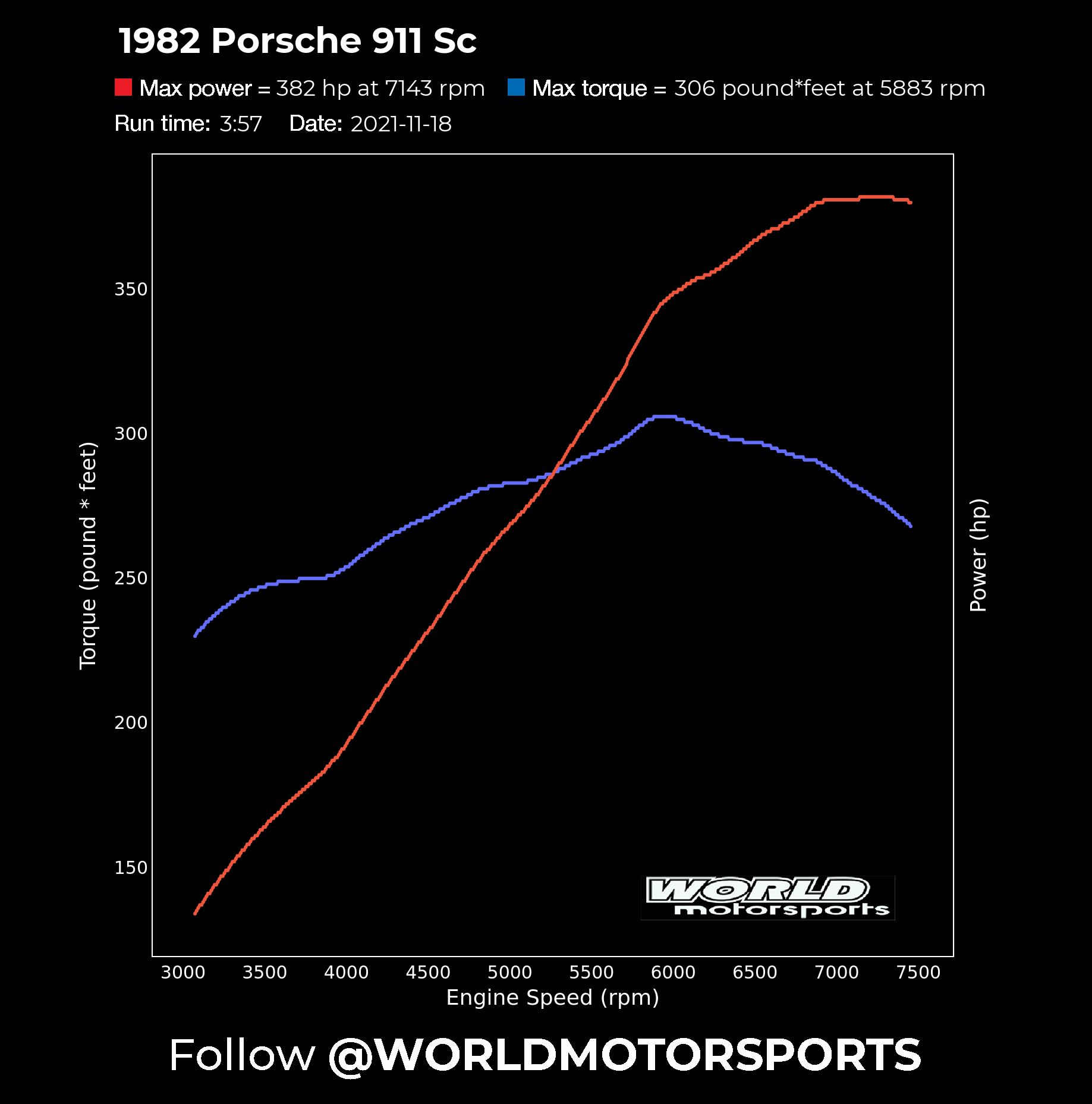

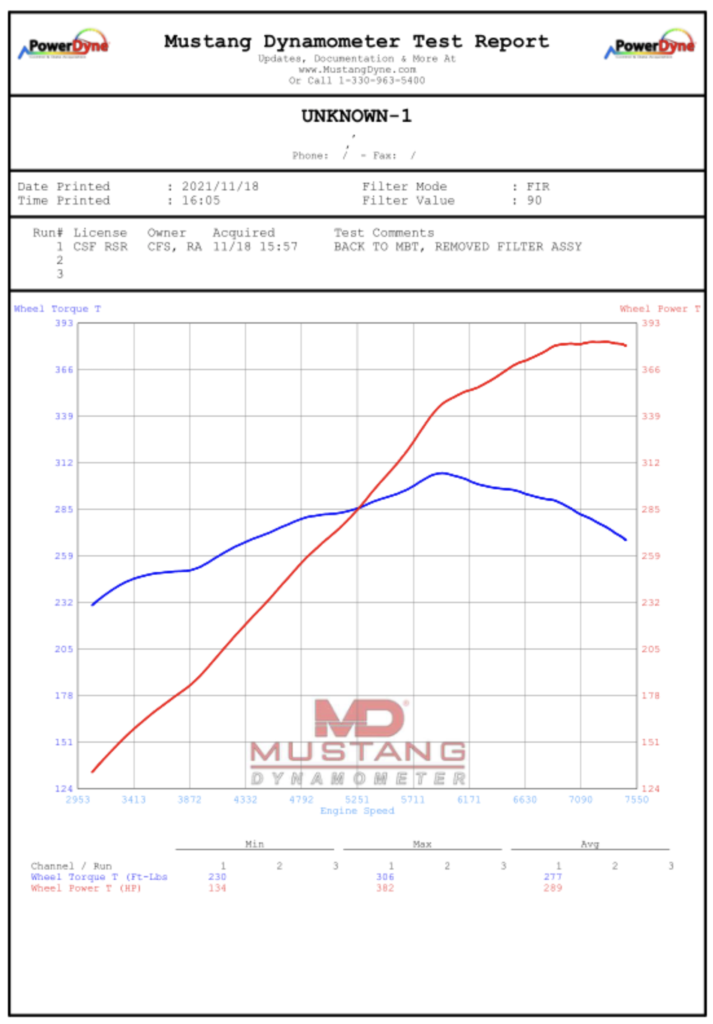

dyno results

Tested on World Motorsports’ Windtunnel Mustang Dyno
387.6 WHP & 310.5 WTQ

(The test stopped slightly before, so the graphs below will be slightly off)

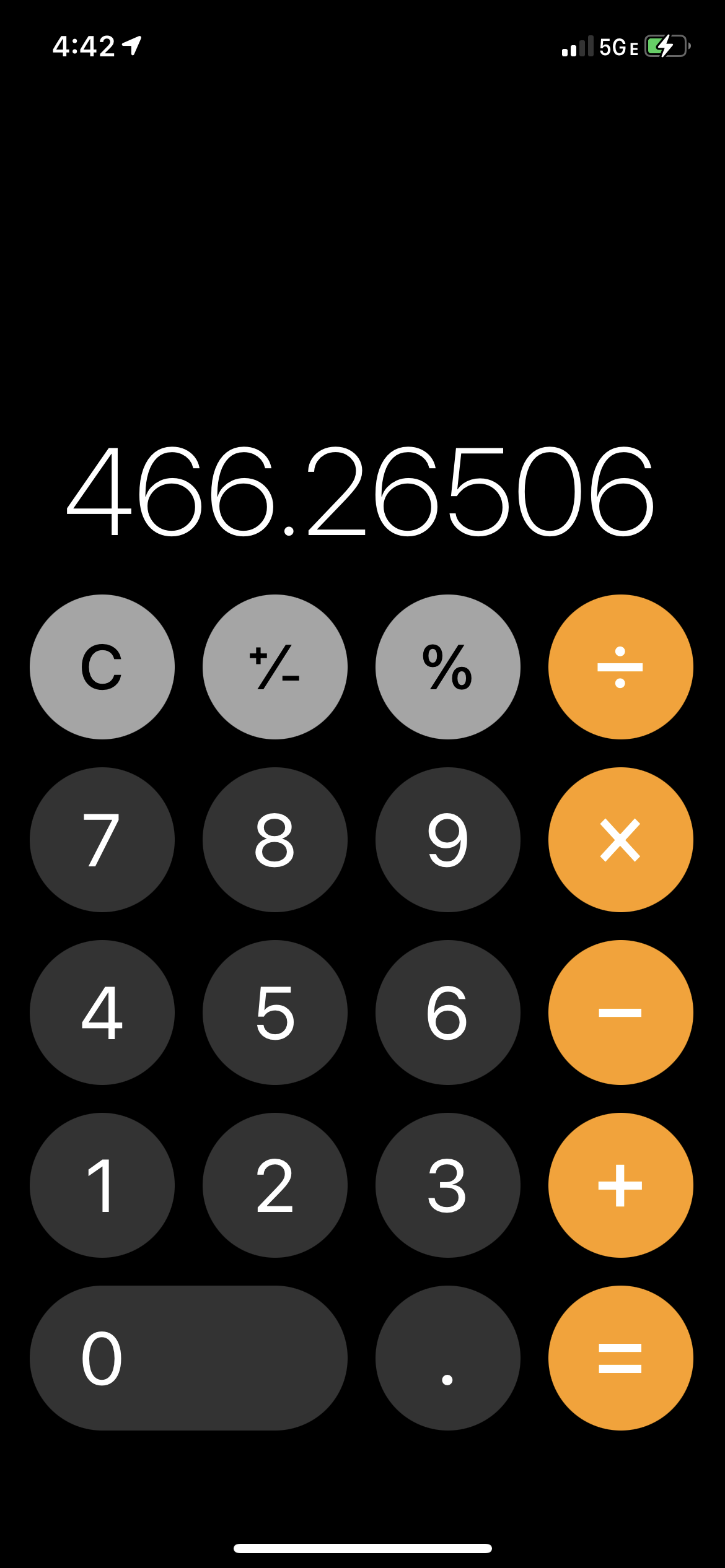

We also measured brake horsepower at a conservative 17% loss: 466 BHP.
For reference, this is 36 HP more than Guntherwerks’ 4.0L engine.

docuseries – Backdate to the future

Videos Featuring the #CSF911

Articles Featuring the #CSF911

Printed Articles

Porsche Club of America – Panorama

Issue Number: 782 – May 2022 | Pages 50-55

Porsche Panorama Article - CSF 911 - Page 2

Porsche Panorama Article - CSF 911 - Page 3

Download / View PDF Version

Awards, Events, and Features

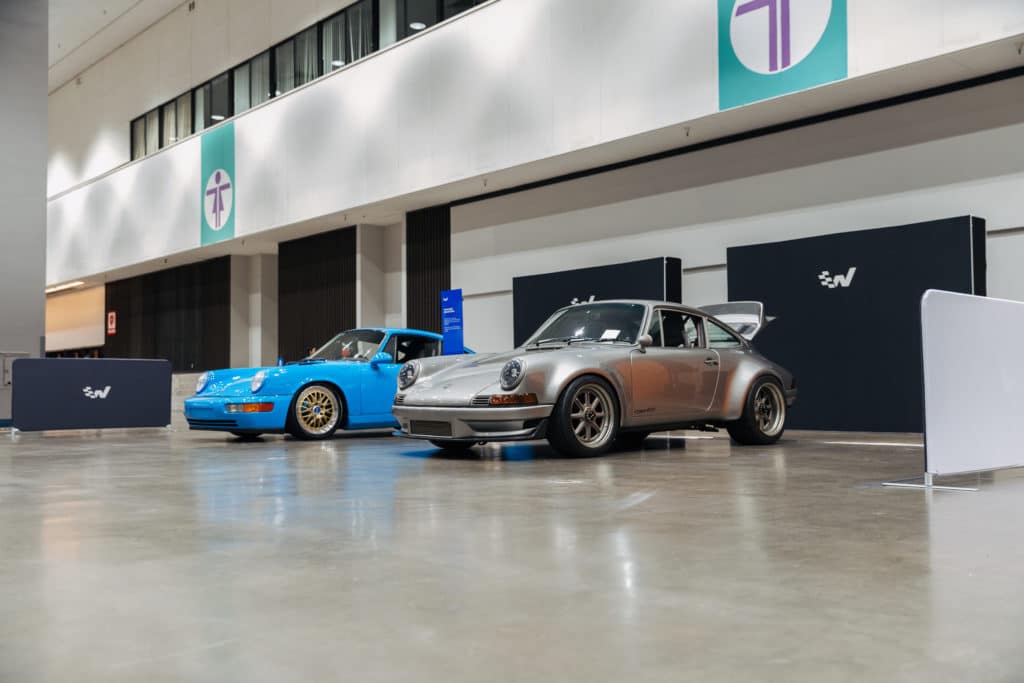

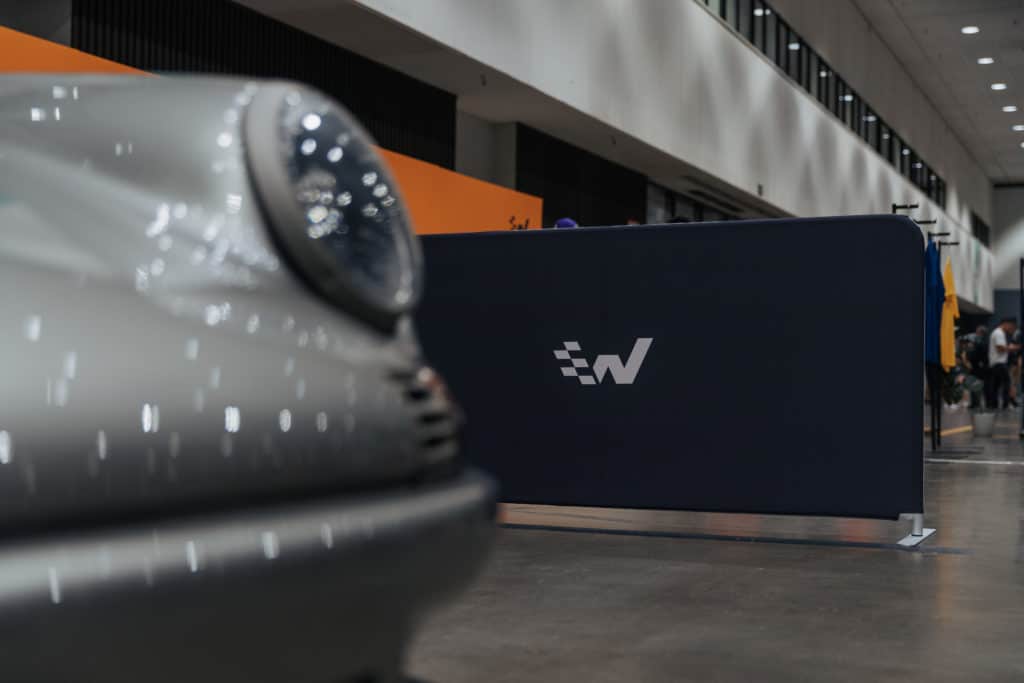

Car of the Festival – WekFest 2022 – Los Angeles, CA

August 14th, 2022

Photographer: @_edmtz_

CSF 911 Porsche - Wekfest LA 2022 - Car of the Festival

CSF 911 Euro Trip

CSF & Pit+Paddock along with CSF’s Network of European Partners teamed up to take this stand out build across Europe and the UK for the Spring and Summer of 2024. During this “Euro Trip” the CSF 911 made appearances at some of the biggest shows across the continent including Ultrace (Poland) along with FOS (UK). See the Euro Trip Page for a complete list of events and coverage.
