( CSF #8372 )
An industry-leading reputation and overwhelming success with BMW cooling has made CSF the #1 cooling choice for the B58 power G2X M340i/M440i and G42 M240i. CSF continues to lead the way in G2X/G42 Cooling adding another product to the best selling B58 cooling suite.
As more and more of these cars enter the motorsports scene, demand for more cooling products continues to grow. Now, CSF is pleased to announce the new BMW G2X M340i/M440i and G42 M240i High-Performance Engine Oil Cooler.
Design & Engineering
When designing this new cooler, CSF wanted to ensure the best possible performance with factory like fitment. This oil cooler is a truly unique design using CSF’s AC Condenser Technology. The 1-Row Super-High Pressure 32mm 10-Channel Microtube provides optimal oil flow and maximum surface area contact.
With many motorsports teams and race enthusiasts now pushing over 1000 horsepower, the B58 is seeing oil temperatures well above normal. Once oil temperatures pass a safe limit the G2X/G42 will go into limp mode. Needless to say this can ruin a race, track session, or your overall driving fun in general. CSF is here to keep your B58 running at peak performance.
Key Features:
- Condenser Technology Core: Super-High Pressure 32mm 10-Channel Microtube provides optimal oil flow and maximum surface area contact.
- Larger than OEM: 32mm thick core that is 14% larger than the OE 28mm

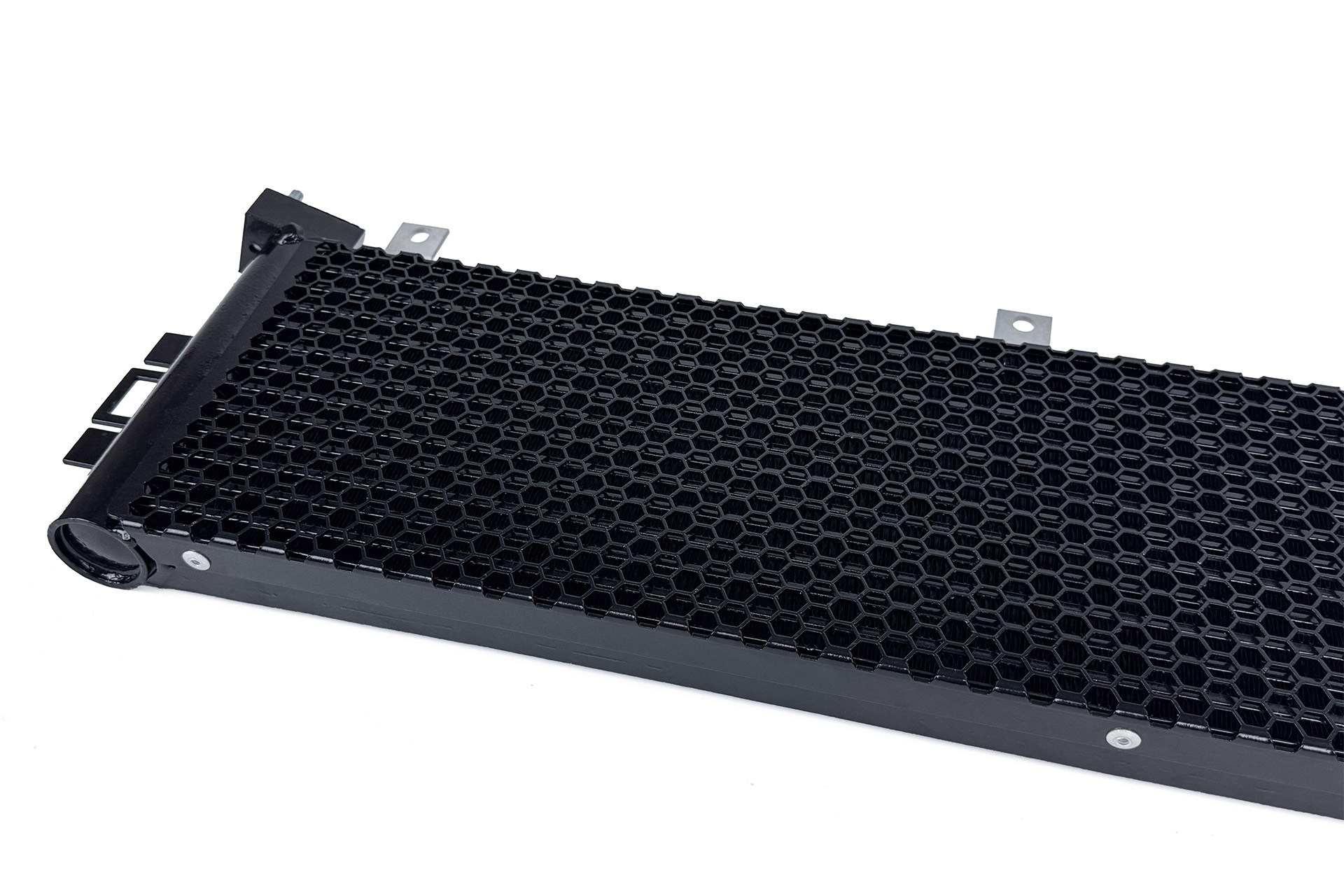

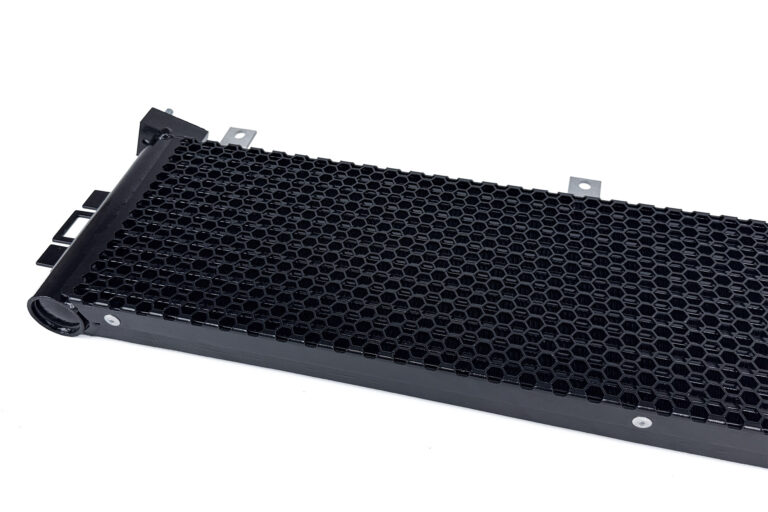

- Included Rock Guard: Core is protected from debris with a metal rock guard
CSF vs OEM
The CSF Oil Cooler utilizes a Super-High Pressure Microtube core which offers superior cooling performance over the traditional tube and fin design of the OE unit. The core volume was increased by 14% by increasing the core thickness from 28mm to 32mm.

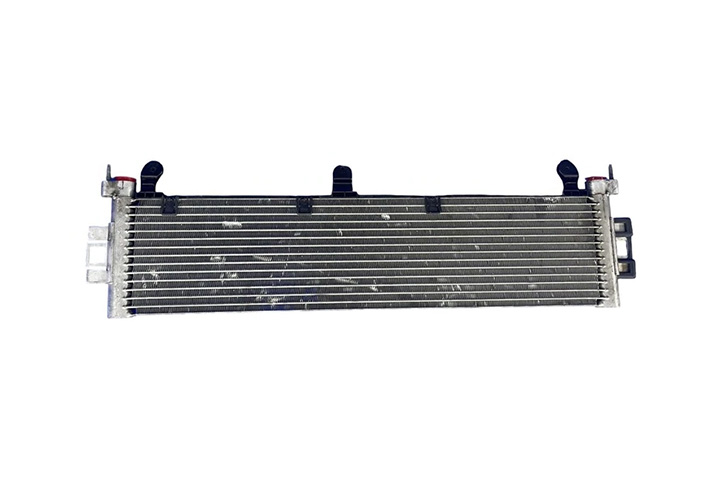

| Feature | CSF #8372 | OEM: 17-21-8-666-121 |
|---|---|---|
| Core Thickness | 32mm | 28mm |
| Core Material | Aluminum | Aluminum |
| Core Design | Super-High Pressure Microtube | Tube & Fin |
| Construction | Robot Welded | Brazed |
By keeping the factory mounting location and relative dimensions, the factory ducting and shrouds are all reused with no modifications necessary. In addition, CSF added a rock guard to keep the cooler safe. You’ve no doubt heard horror stories about an OEM cooling getting punctured and spilling oil all over the road or track. Now you can feel safer and more confident that your oil system is safe from road debris.
Test Fitting at CarBahn

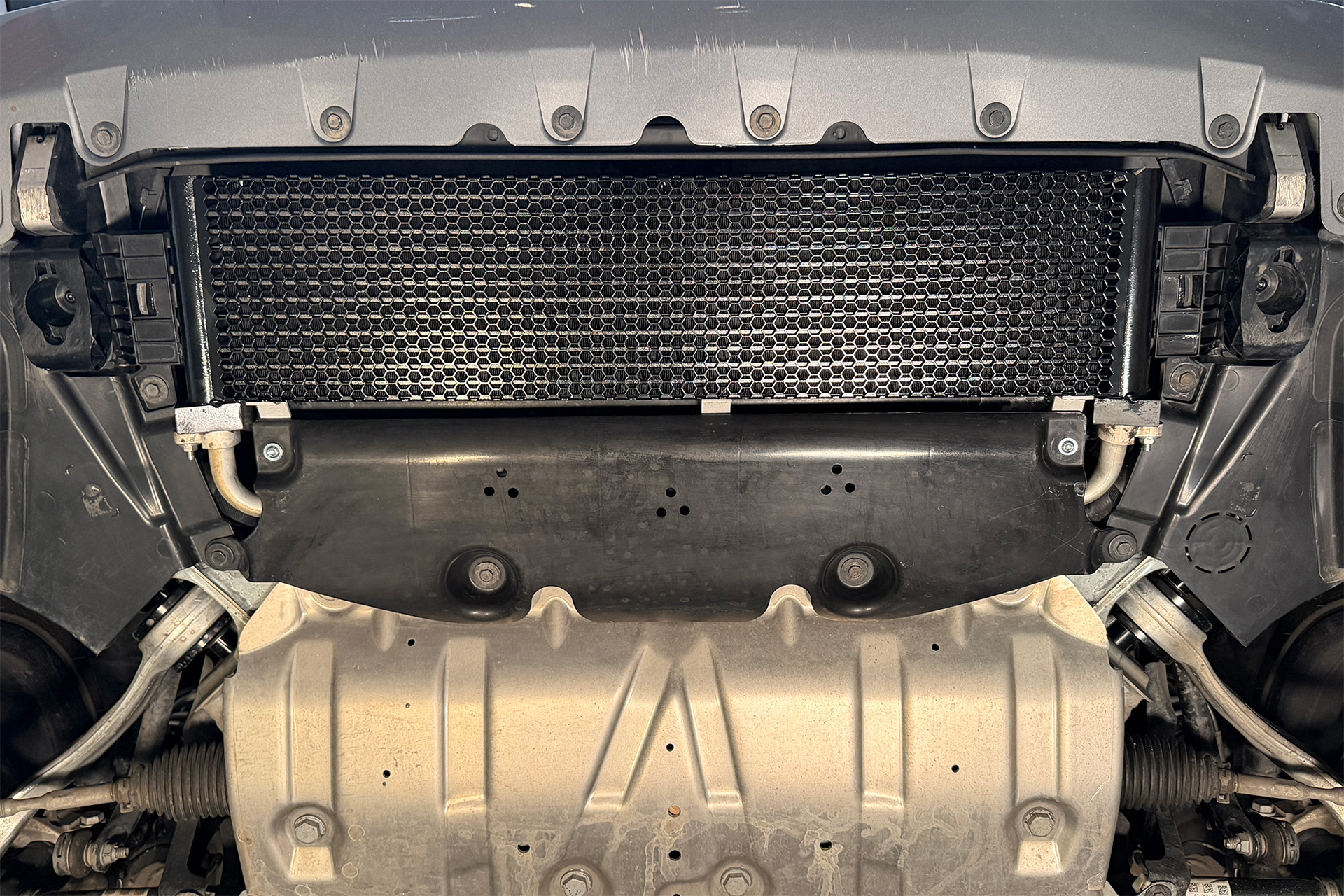

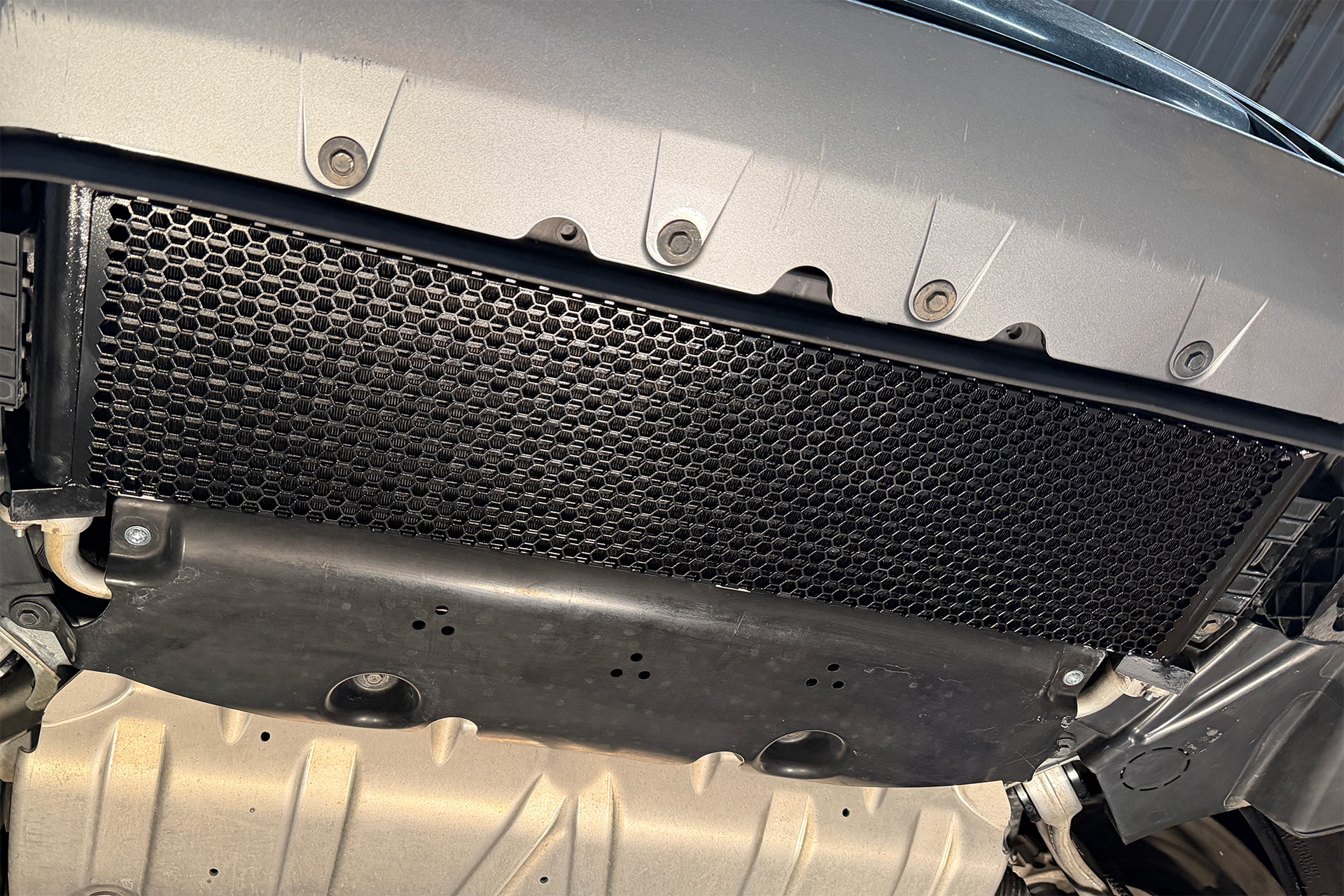

CSF’s development partners at CarBahn installed and tested the first production oil cooler on their own G20 M340i.
Product Images

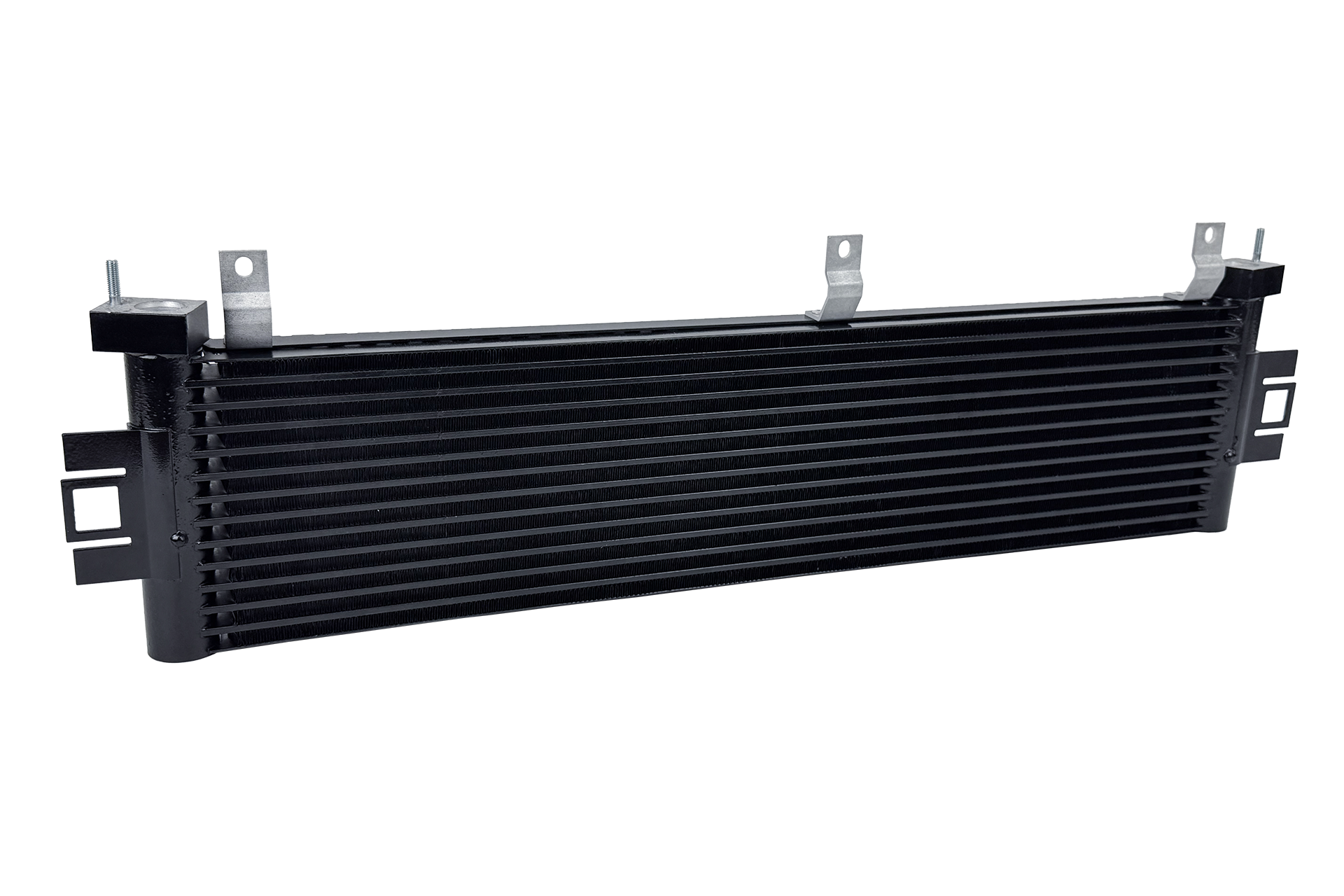

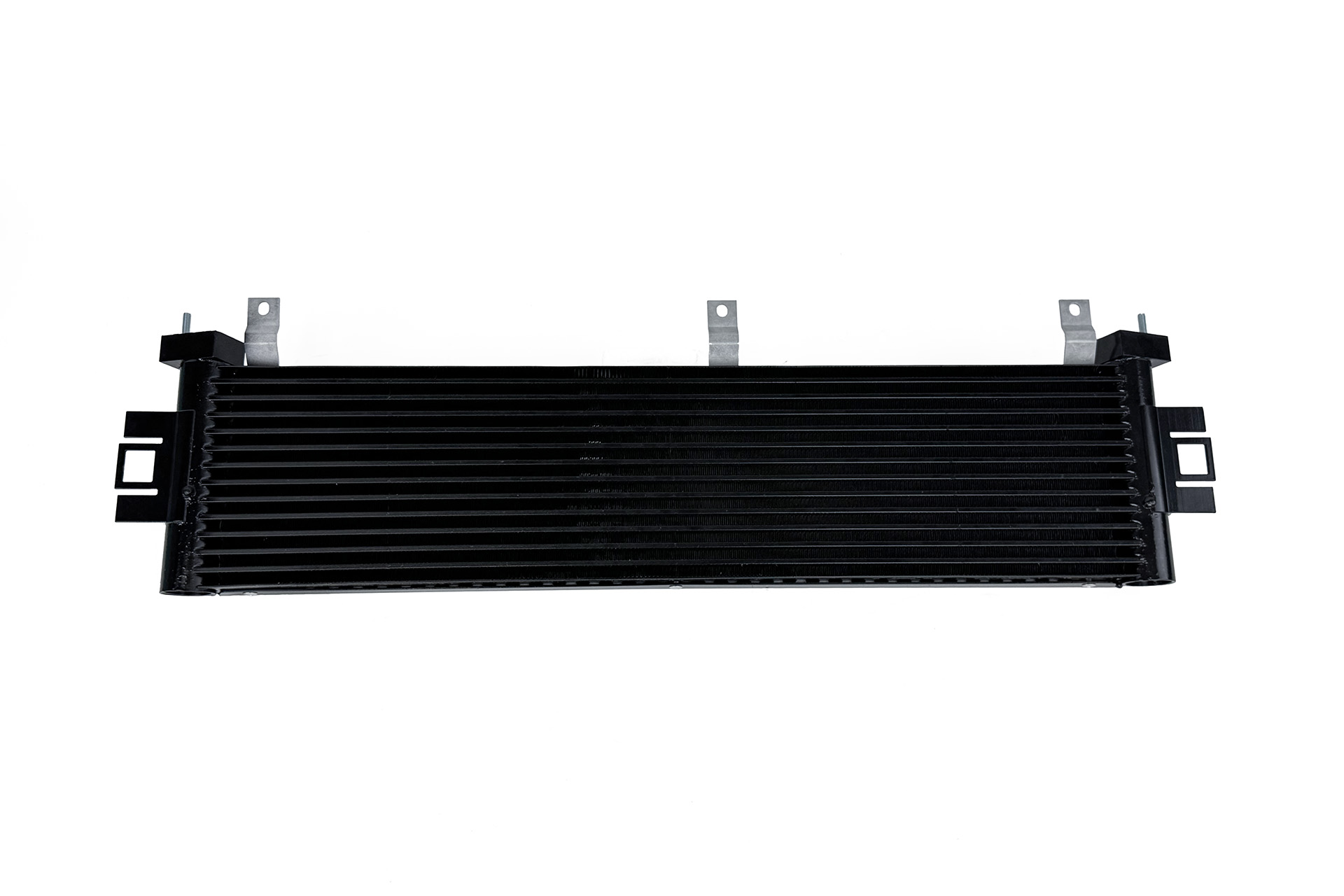

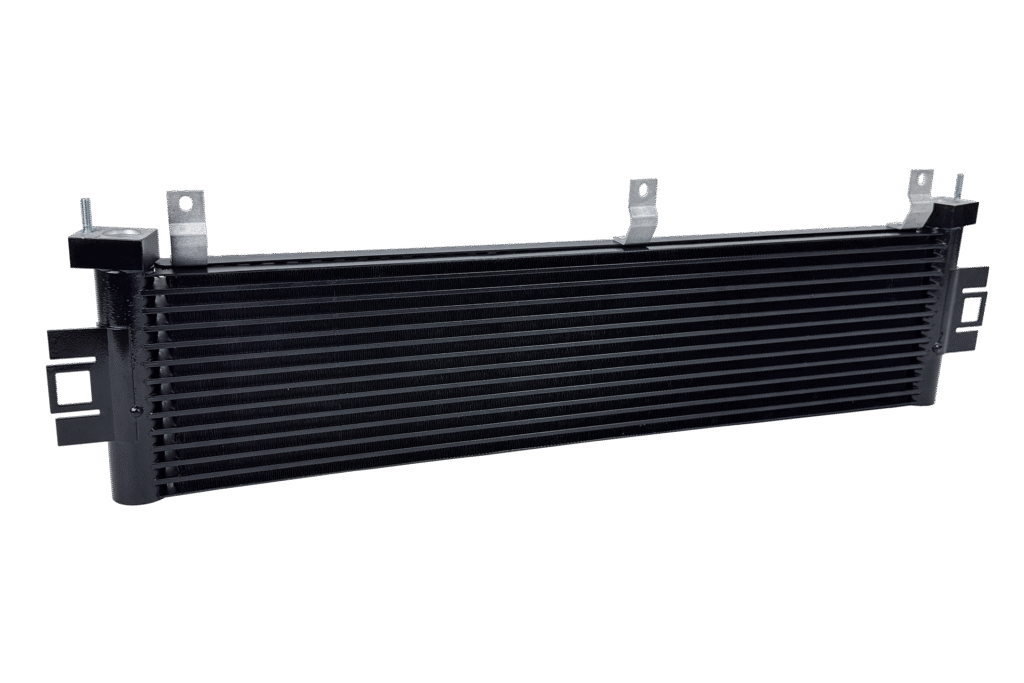

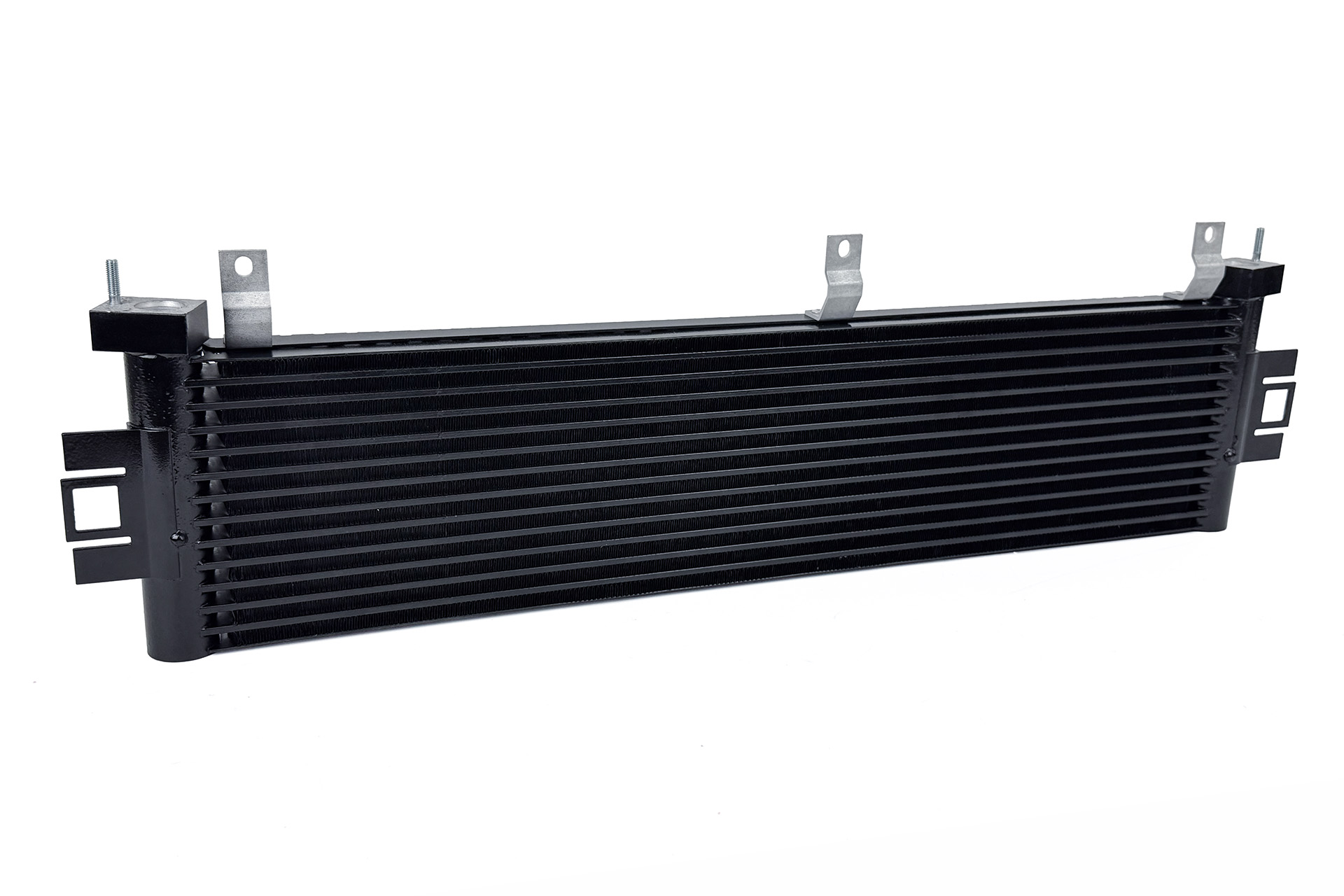

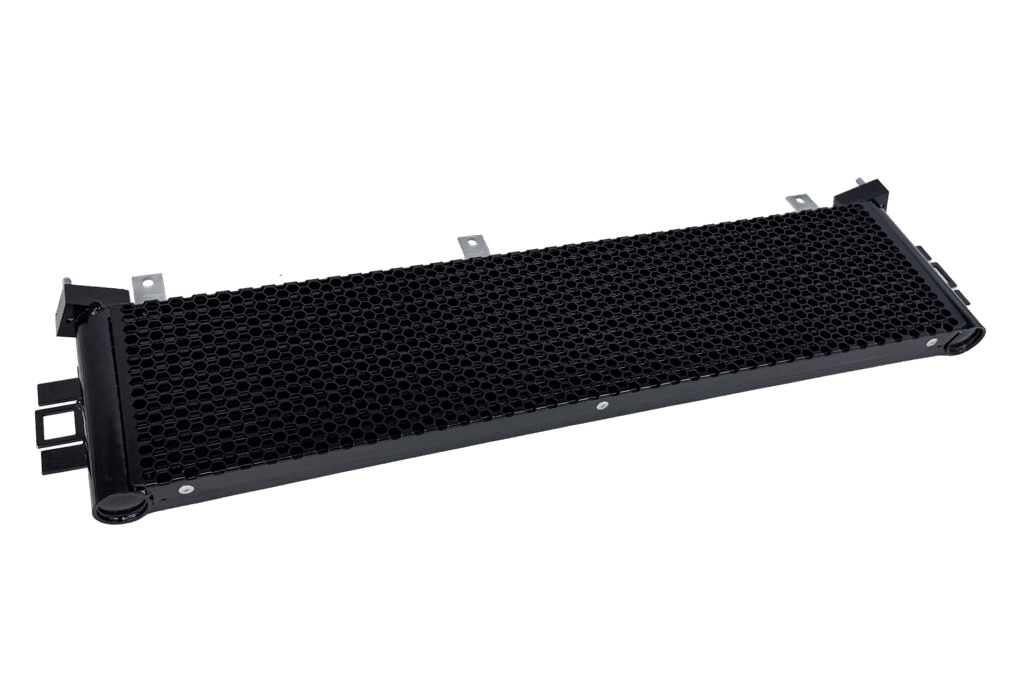

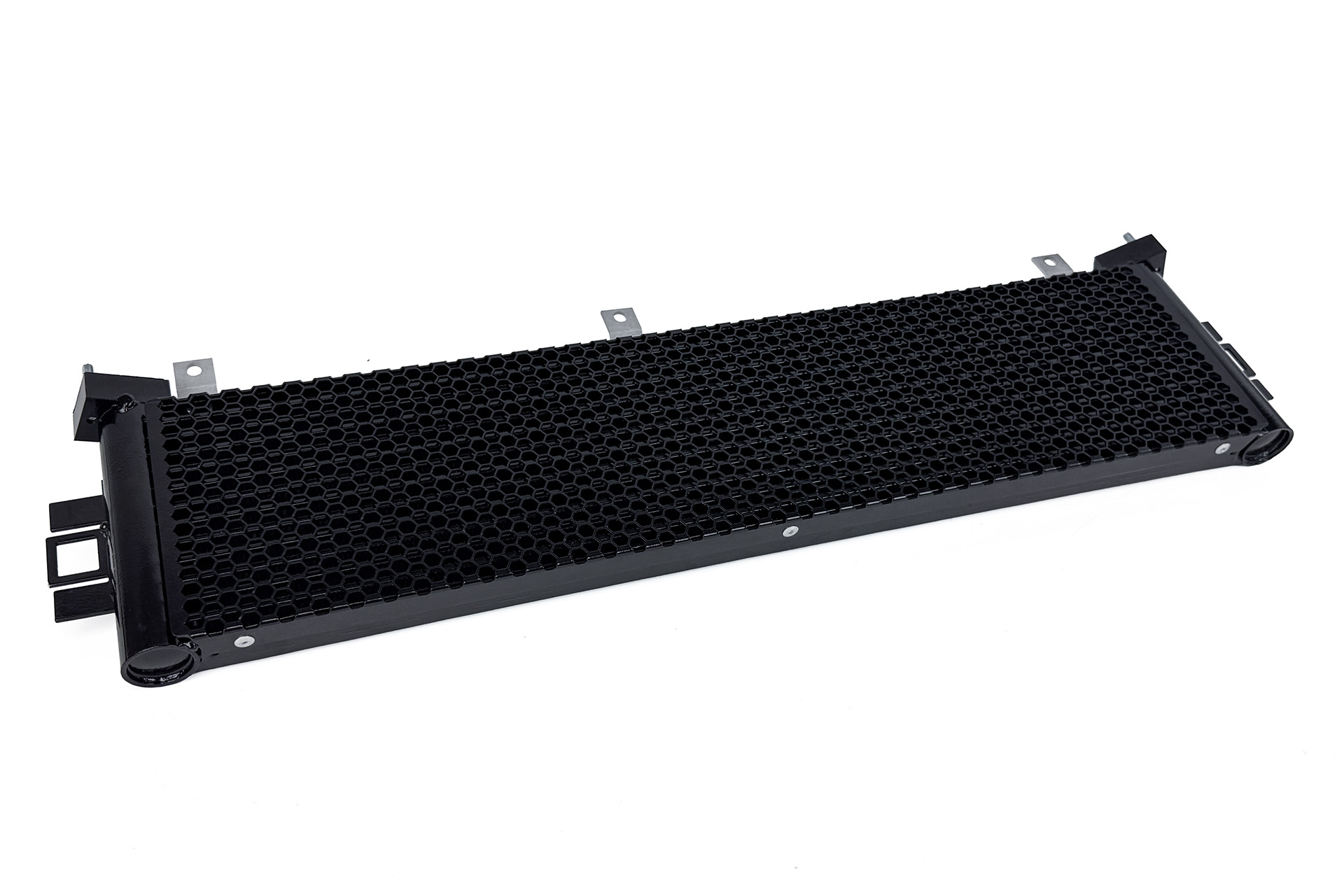

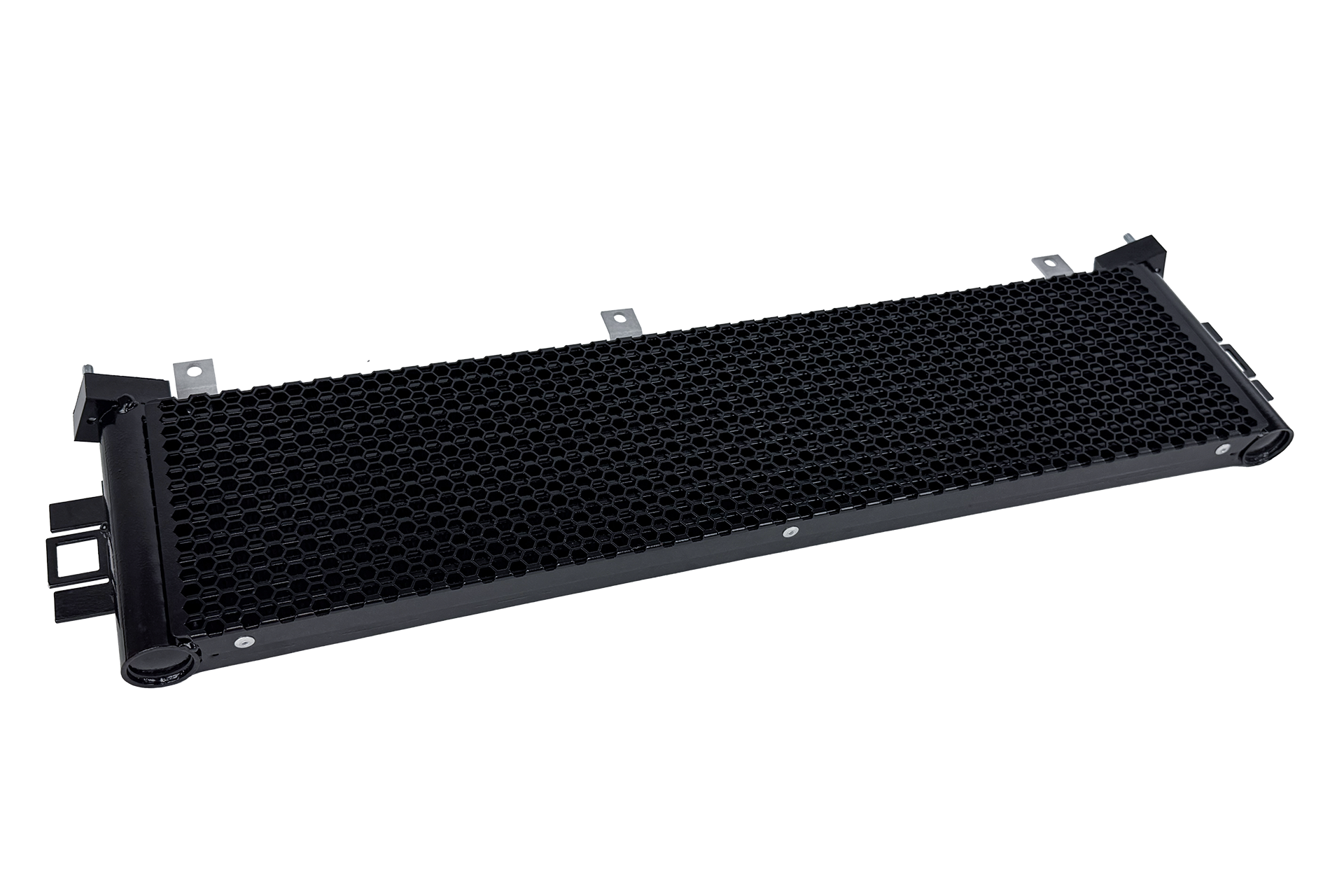

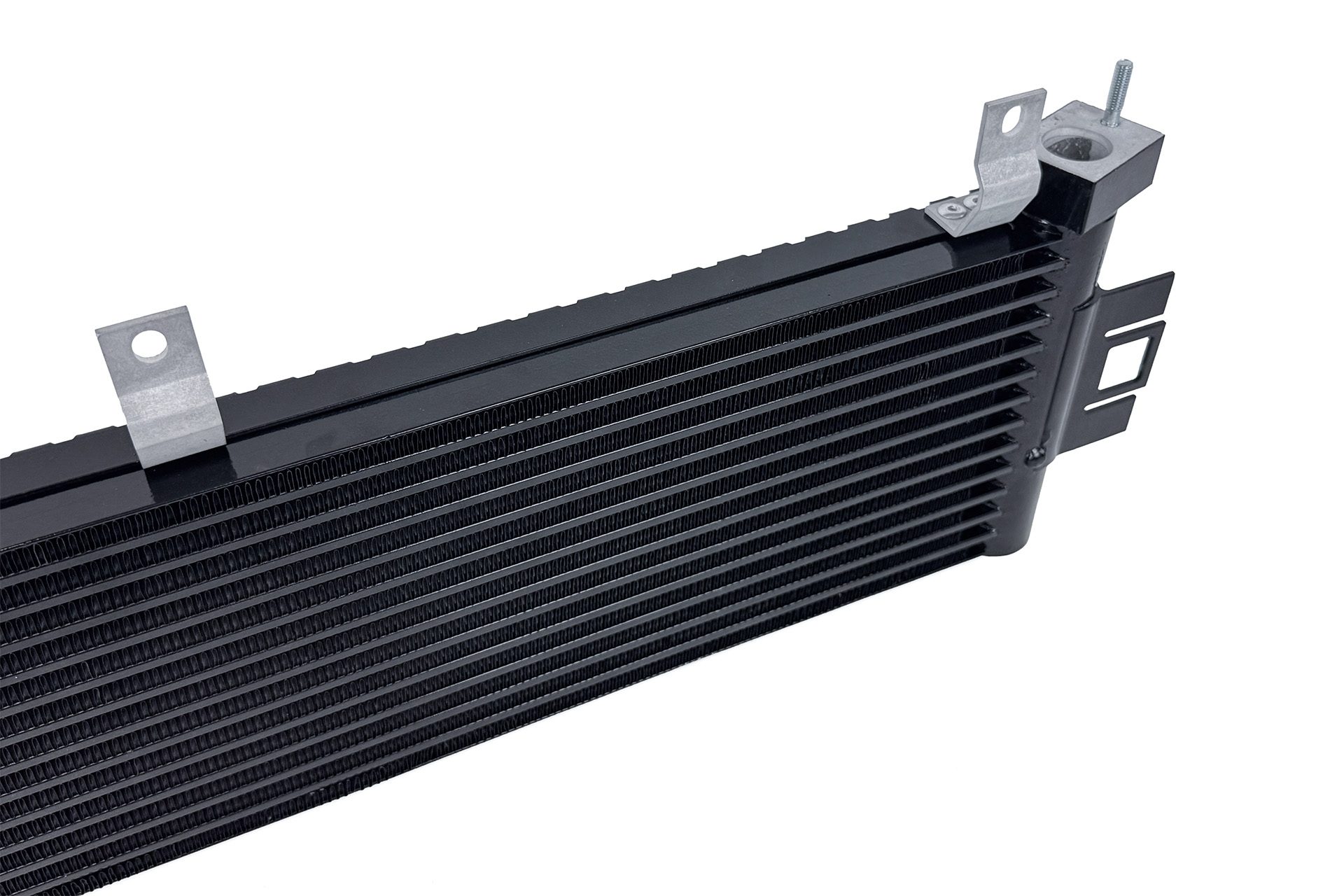

BMW G2X M340i/M440i & G42 M240i High-Performance Engine Oil Cooler Features (CSF #8372)
- 8mm Tall Multi-Louvered Fin
- Made with CSF’s AC Condenser Technology Using a 1-Row Super-High Pressure 32mm 10-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
- Utilizes OEM Top/Bottom Rubber Seals for Optimal Airflow

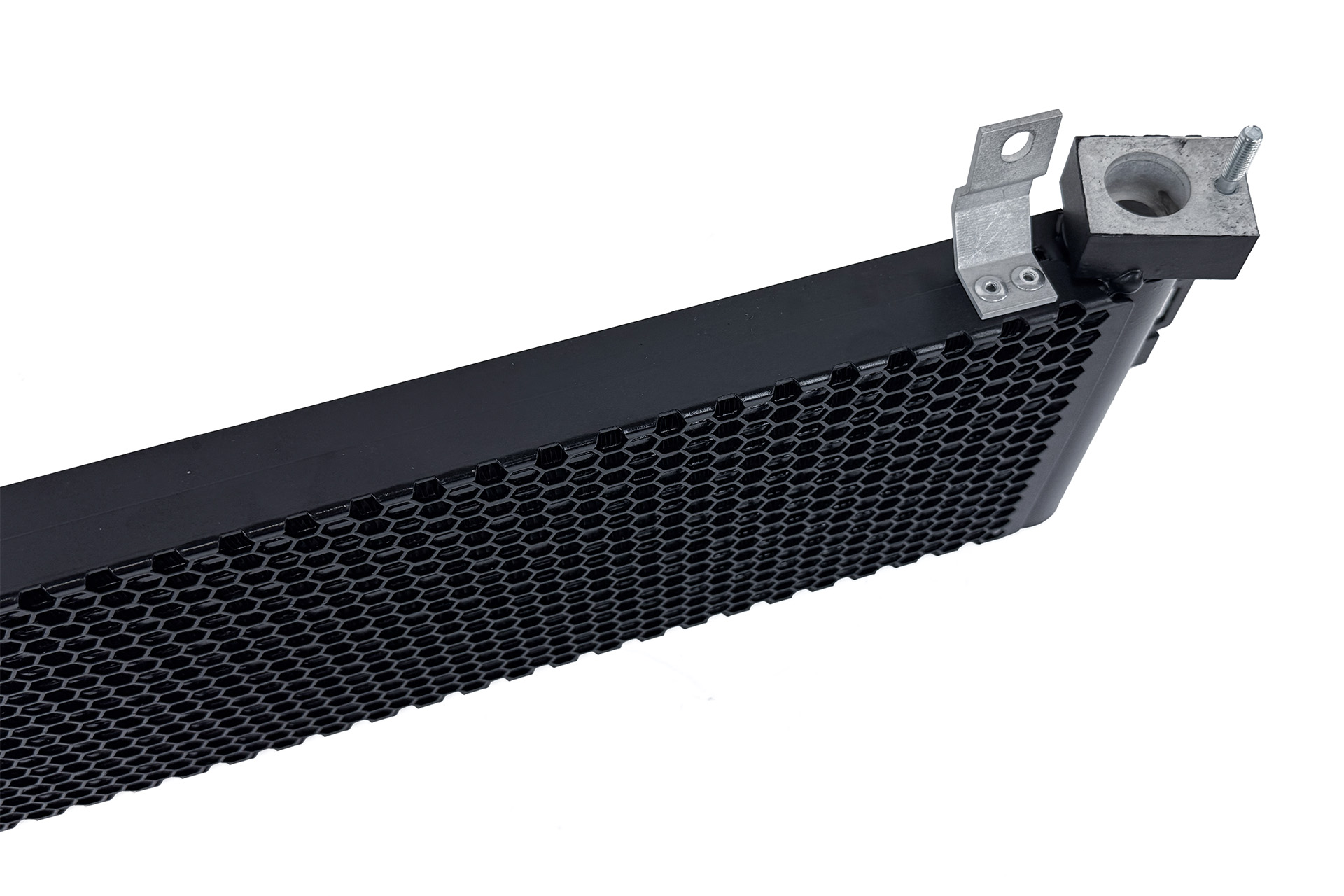

- OEM Style Inlet/Outlet Connections
- Includes Rock Guard
- Drop-in Fit Install
- 2-Year Limited Warranty
- Ideal for Road Racing, Drag Racing, and Vehicles With Increased Performance
- Applications:
- 2022-2026 BMW G42 M240i (incl. xDrive) with the Motorsport Engineering Package (S33TA)
- 2020-2024 BMW G2X M340i (incl. xDrive) with the Motorsport Engineering Package (S33TA)
- 2021-2024 BMW G2X M440i (incl. xDrive) with the Motorsport Engineering Package (S33TA)
- OEM Part Number:
- BMW: 17-21-8-666-121
- MSRP / MAP: $549.00 USD
*Fitment Note:
Only Fits G2X Models with the BMW B58D Motor. If your M340i or M440i has the B58N Motor, the Engine Oil Cooler was not available. Please check your VIN to be sure you have the S33TA Motorsport Engineering Package and B58D motor.

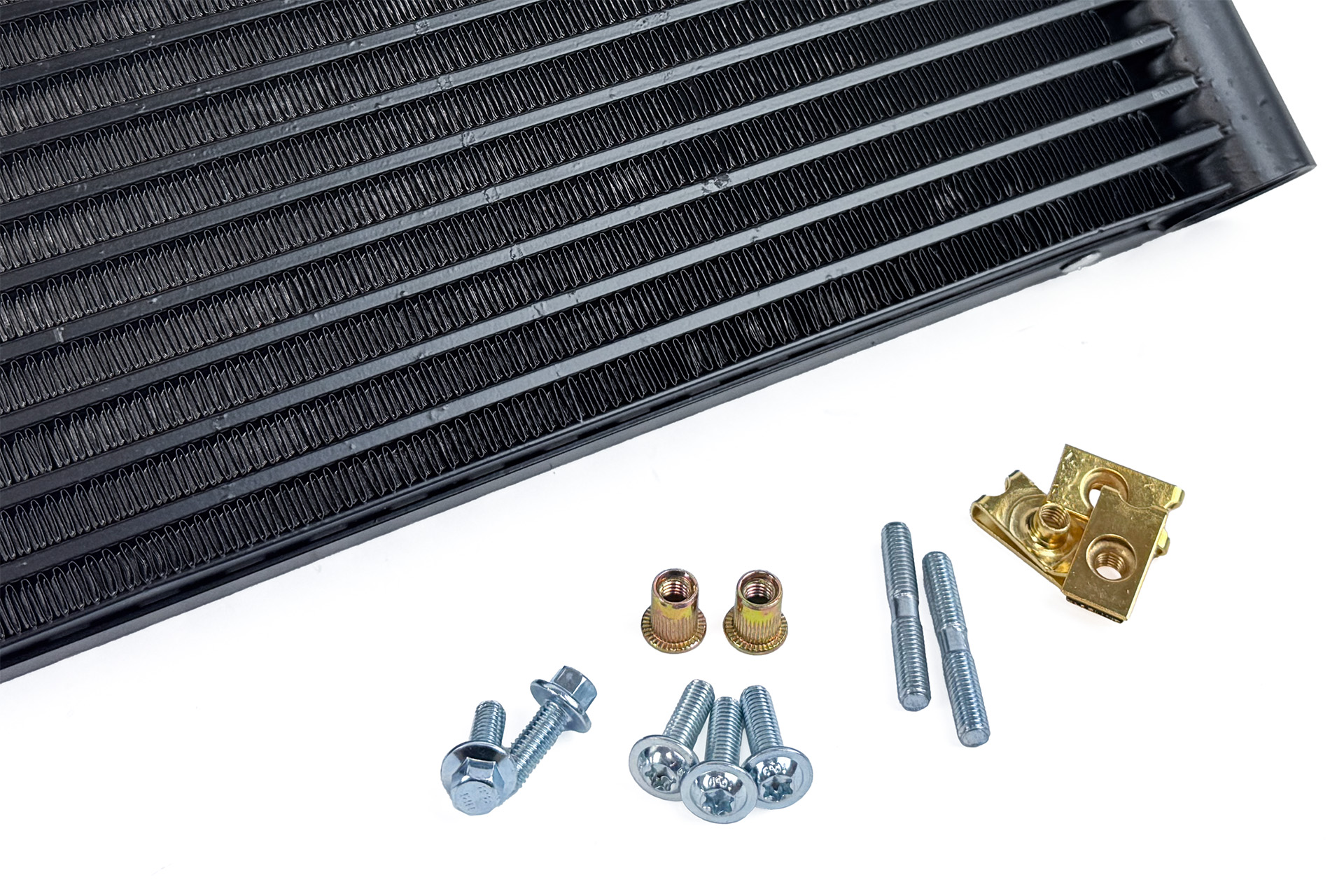

You will need to drill out the two rivet nuts to remove the two oil cooler bash guards. CSF supplies new threaded M6 rivet nuts and m6 bolts to secure the bash guards upon installation of the CSF oil cooler
Where to Buy
Please contact an authorized CSF dealer or distributor to order.
