New CSF Ford Bronco 2.7L External Transmission Oil Cooler Kit

( CSF #8350 )

The return of the legendary Ford Bronco in 2021 was a dream come true for many long-time enthusiasts. The Bronco is a very capable off-roader, especially in the new Raptor trim. While the Bronco Raptor comes equipped with a robust factory transmission oil cooler system, the standard 2.7L V6 model lacks this essential upgrade. That’s where CSF stepped in to help.

Introducing the CSF Bronco 2.7L External Transmission Oil Cooler Kit. This complete bolt-on kit was designed to provide the kind of protection serious off-roaders need. Whether you’re scaling dunes, crawling rocks, or just exploring the backcountry, overheating your transmission can put a real damper on your adventure. CSF’s new system offers a major performance boost over the factory liquid-to-liquid cooler and improves upon the design of the factory Bronco Raptor system.

Design & Engineering

CSF leveraged decades of cooling experience to design our first complete Oil Cooler Kit. As a leader in performance cooling technology, CSF wanted to bring the best possible kit to the market. CSF used best in class materials and state of the art technology. This plug-and-play solution is an essential upgrade for the 2.7L Bronco and offers several key benefits:

• Keeps transmission fluid under control, even in the toughest off-road conditions
• Extends transmission life and reliability
• Improves cooling efficiency for towing, crawling, and overlanding
• Designed for easy installation with motorsports-grade components
• Eliminates clearance issues with original transmission cooler
• Delivers peace of mind through proven CSF engineering

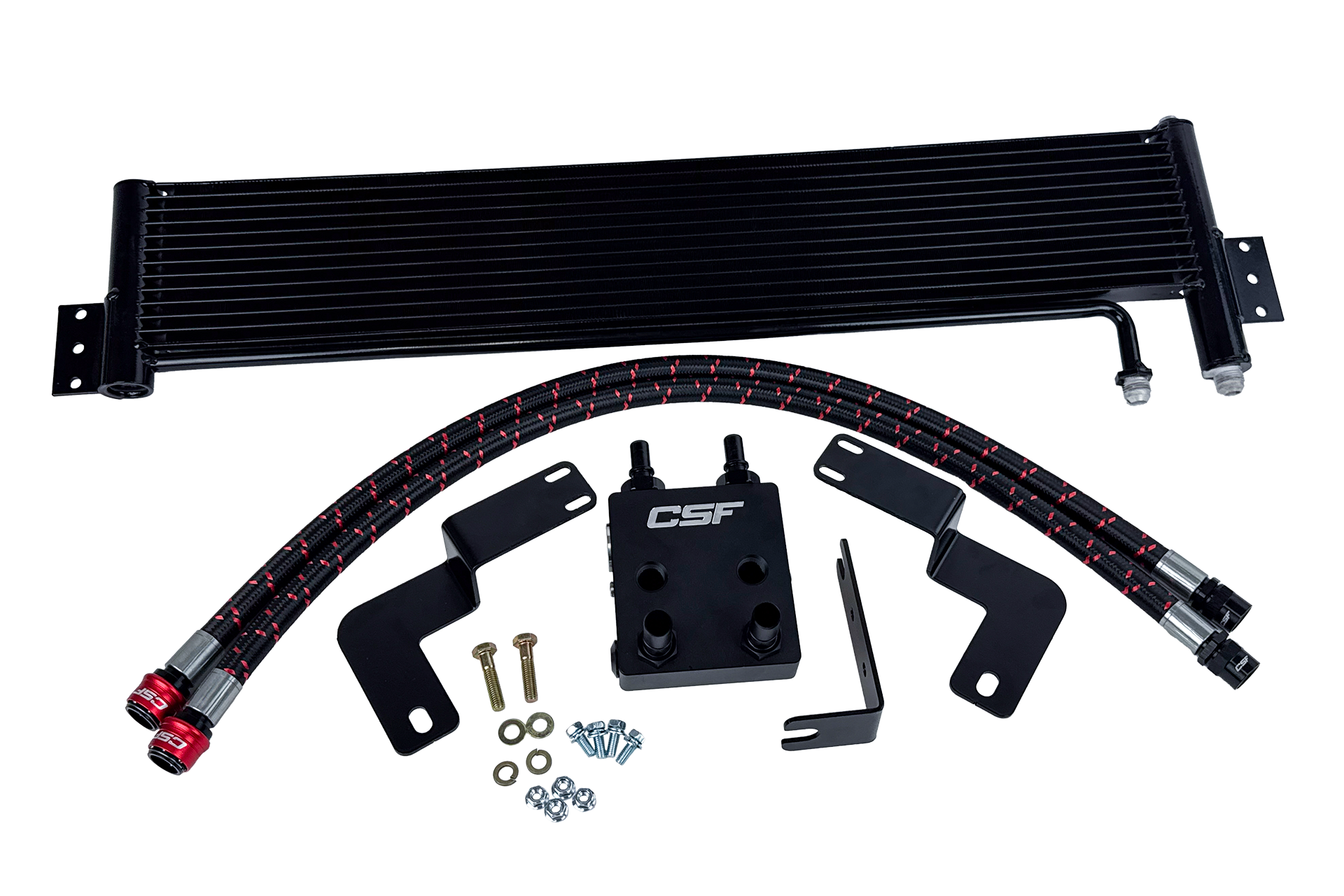

All the major components of the kit are bespoke and were made to CSF’s meticulous specifications.

• Specially designed CSF Transmission Cooler Heat Exchanger
• Laser Cut Brackets and Hardware
• Custom Motorsport-grade lines and patented quick-release fittings by DYME PSI

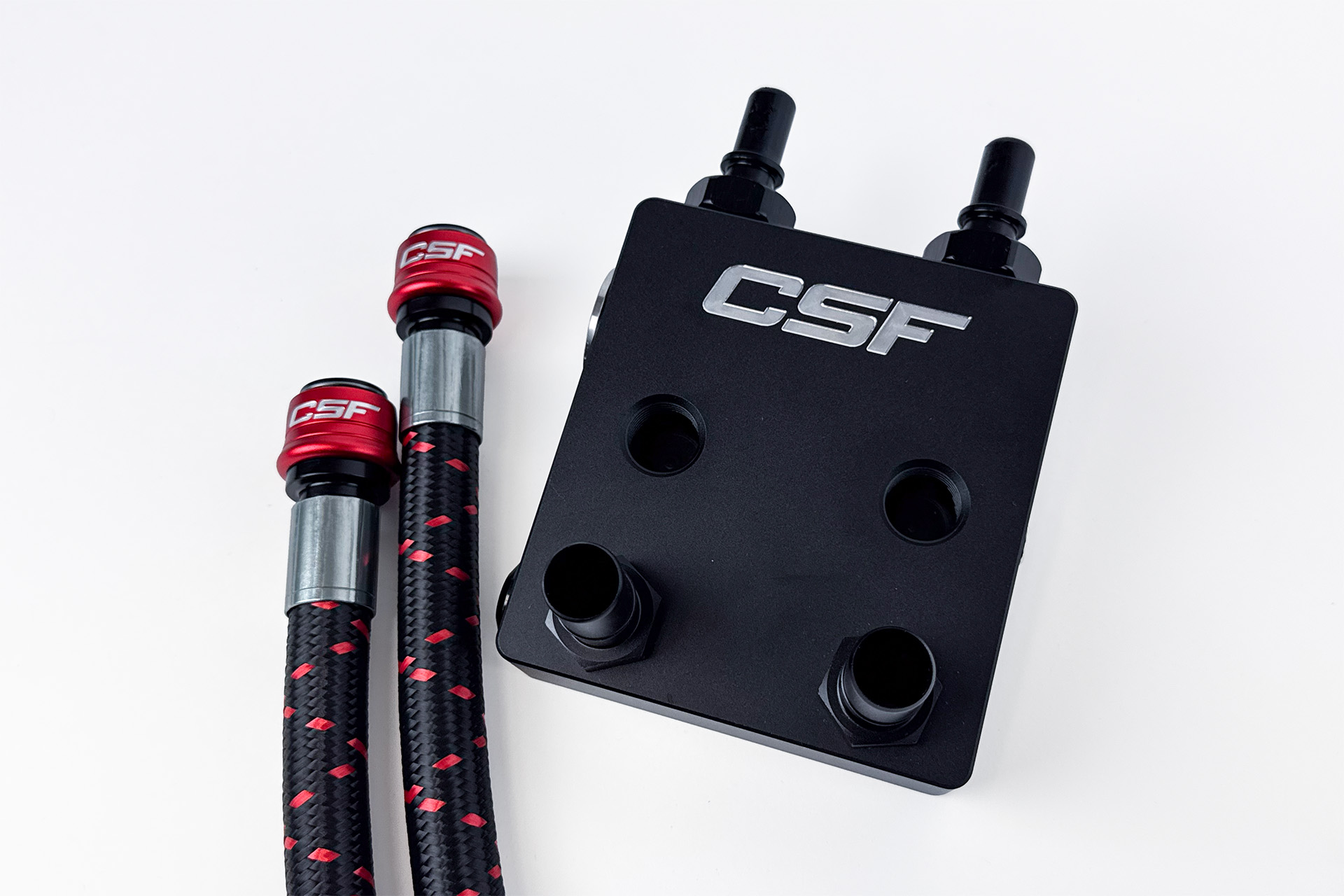

• CNC Machined Billet Aluminum Thermostatic Plate

CSF vs OEM

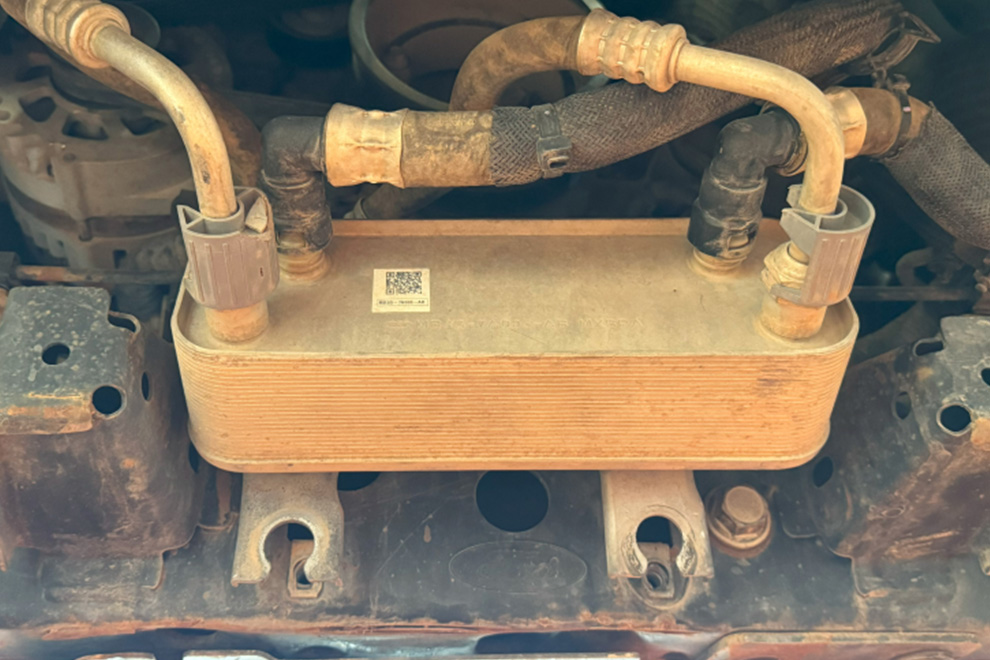

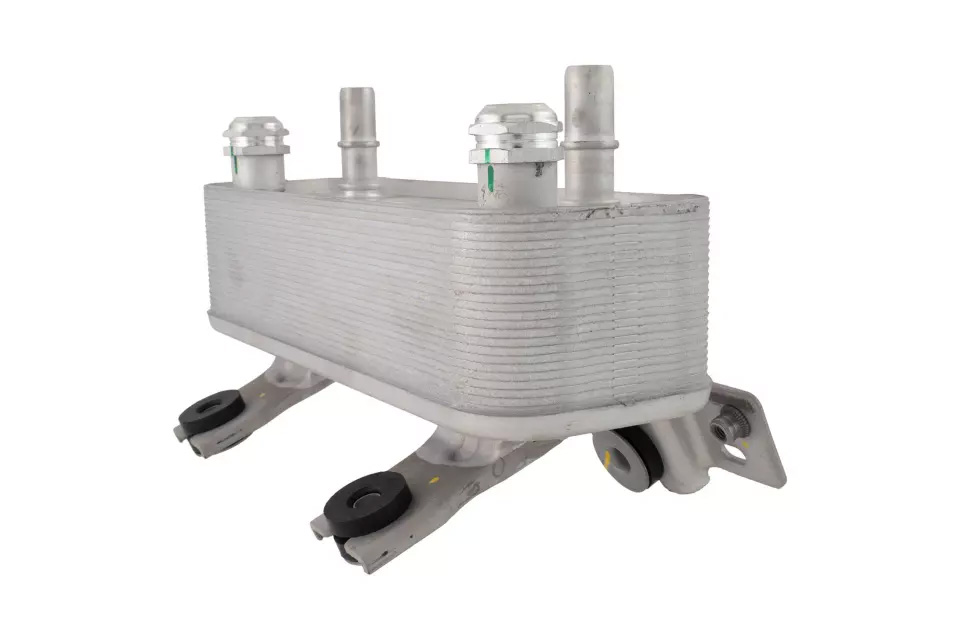

The OE Transmission Oil Cooler from Ford is a small, water-to-oil stack cooler. While adequate for daily driving, it can easily become overwhelmed when these rigs are pushed to their limits. It’s not just high-horsepower builds or hardcore off-roaders who need better cooling. Many overlanders, campers, and weekend adventurers add significant weight and drag to their Broncos. Roof-mounted tents, spare tires, fuel cans, and oversized tires all increase the load on both the engine and transmission. With CSF’s kit, your 2.7L Bronco gains the cooling capacity it should have had from the factory, providing crucial protection and preserving performance.

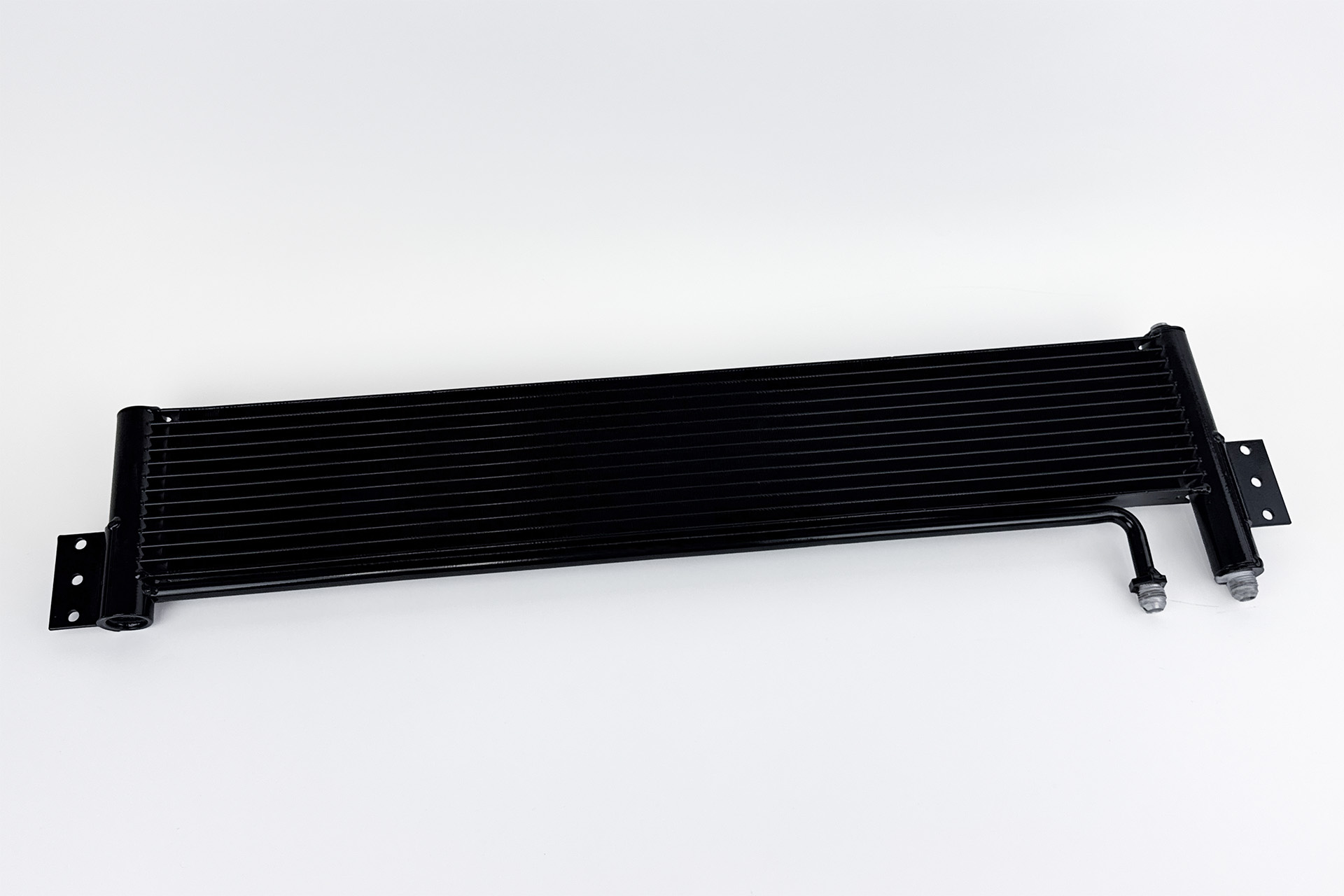

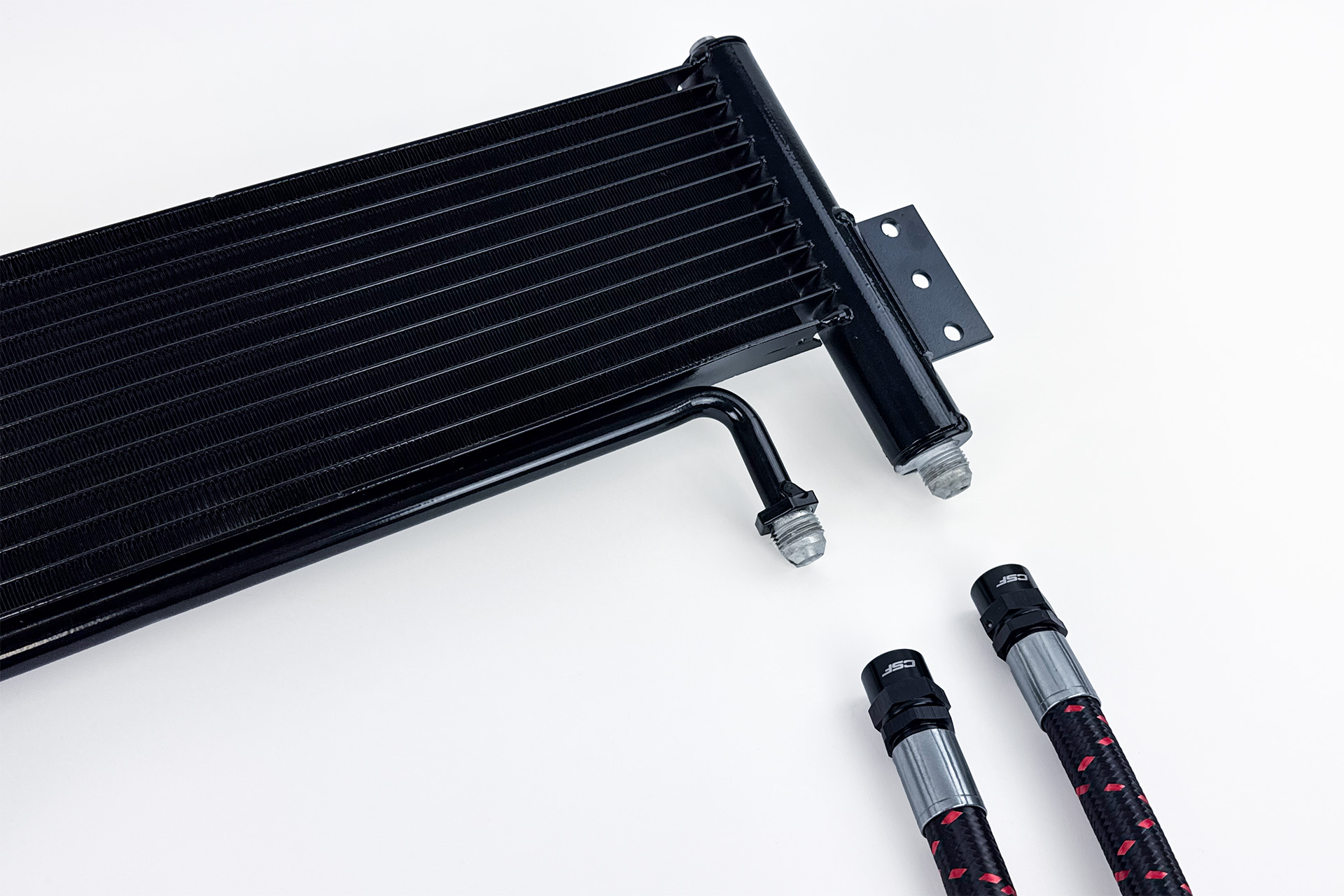

The CSF system was built around a high-performance transmission oil cooler built with CSF’s Micro Channel Technology. The core features a super-high-pressure 26mm 12-channel microtube design that maximizes oil flow and surface area contact. Constructed of 11 rows of cooling tubes and paired with 12 rows of 8mm multi-louvered high-performance fins, it delivers outstanding heat transfer efficiency. A CNC billet-machined thermostatic plate replaces the factory stack cooler which reroutes transmission fluid to the new cooler mounted in front of the radiator. Motorsport-grade lines and patented quick-release fittings by DYME PSI ensure a clean, fast, and straight-forward installation.

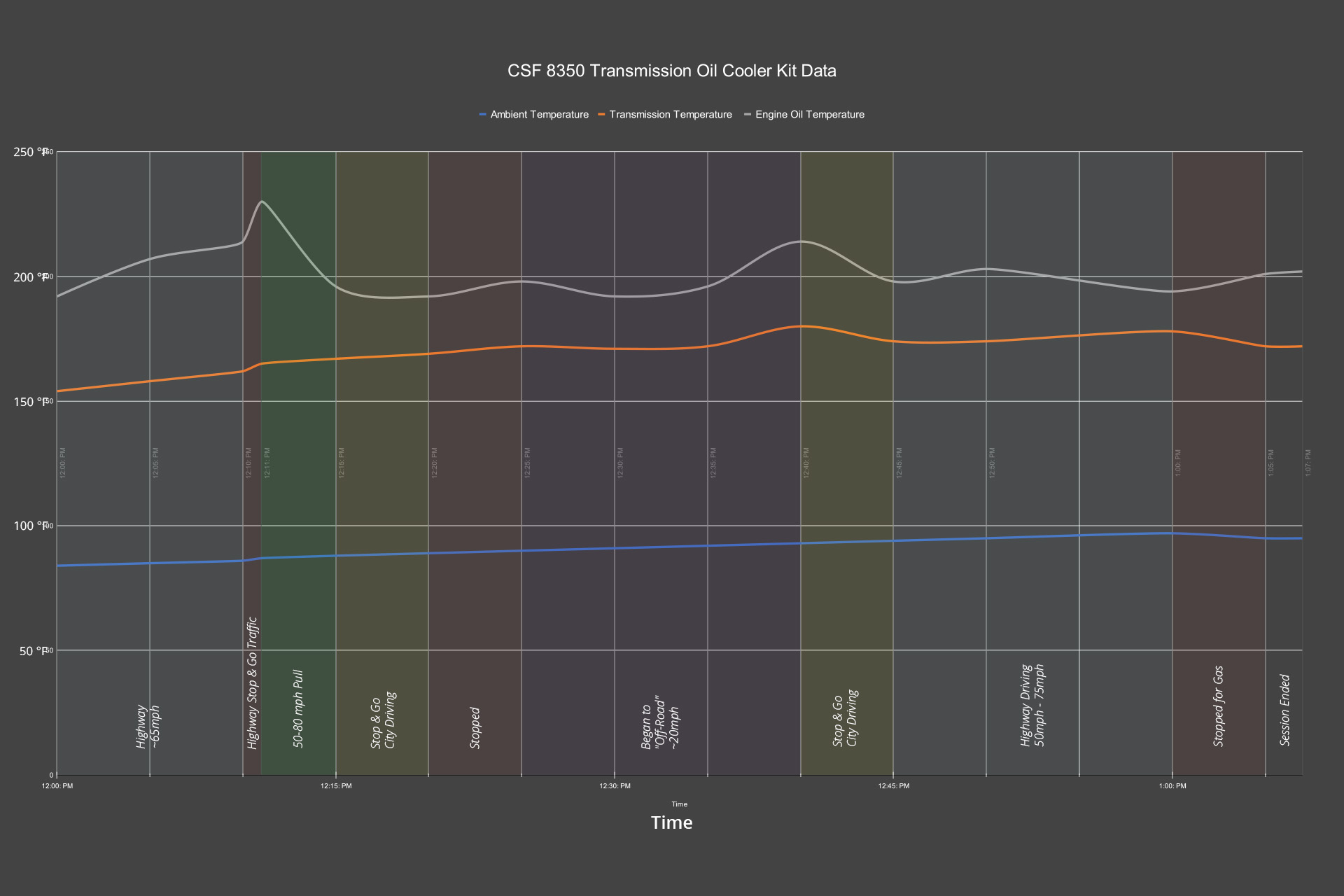

Testing data

The CSF engineering team conducted real world testing on the 2.7L Bronco. Testing was performed in the California desert on a warm day with temperatures hitting a high of 97°F (36°C). @acfab_oscar was kind enough to lend CSF his rig to validate the performance of the new Transmission Oil Cooler Kit under real world conditions both on and off-road. Many Bronco owners report transmission temps in the 200-215°F (93-102°C) range under moderate load. Some owners have seen temperatures as high as 280°F (138°C) in extreme conditions.

Test data showed a peak transmission oil temperature of just 180°F (82°C). This number was recorded during stop-and-go traffic immediately following the off-road test with an ambient temperature of 93°F (34°C). Over the course of testing, the transmission saw a ∆T of only 26°F (13.4°C). The data proves both a substantial reduction in transmission temperatures and vast increase in cooling capacity.

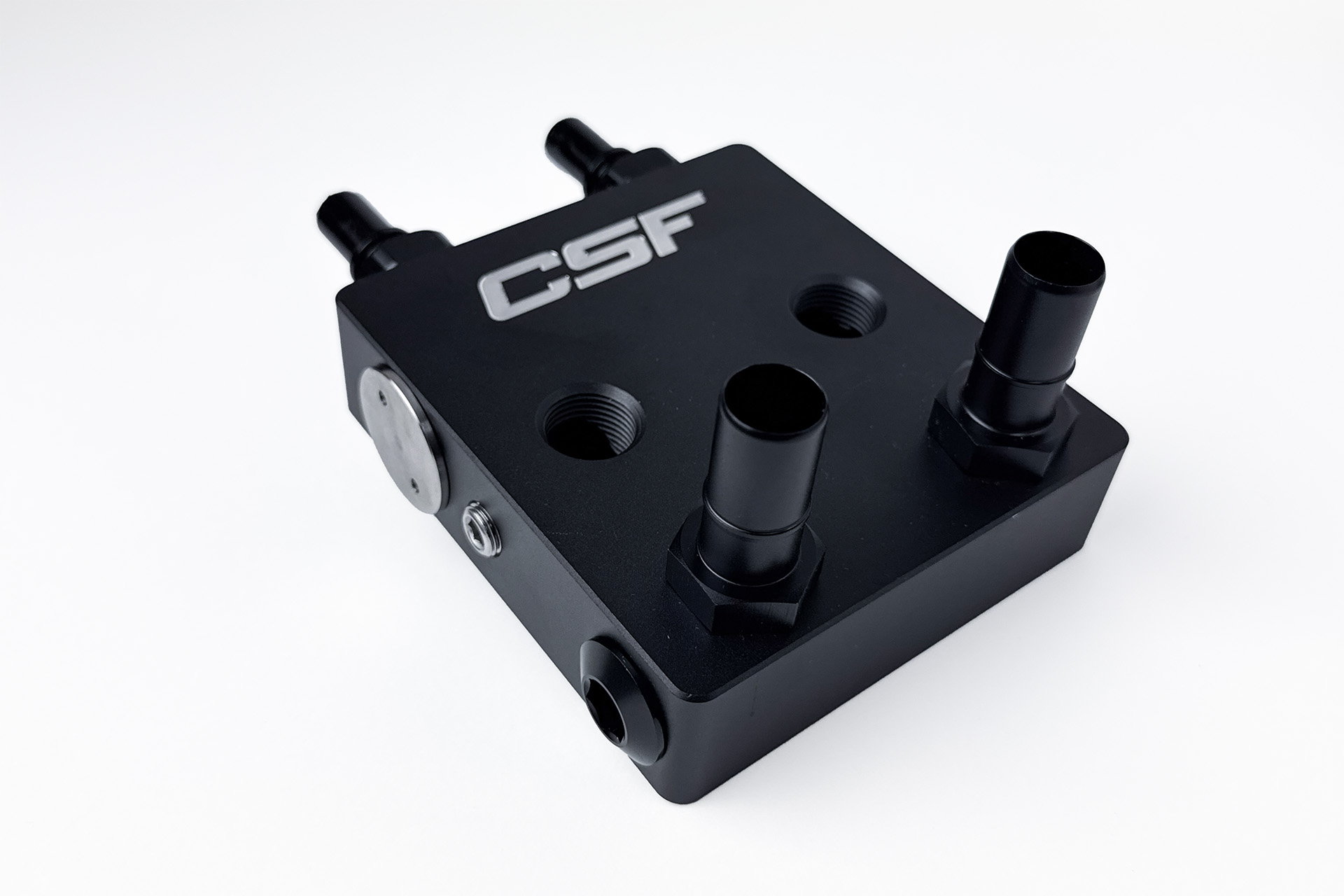

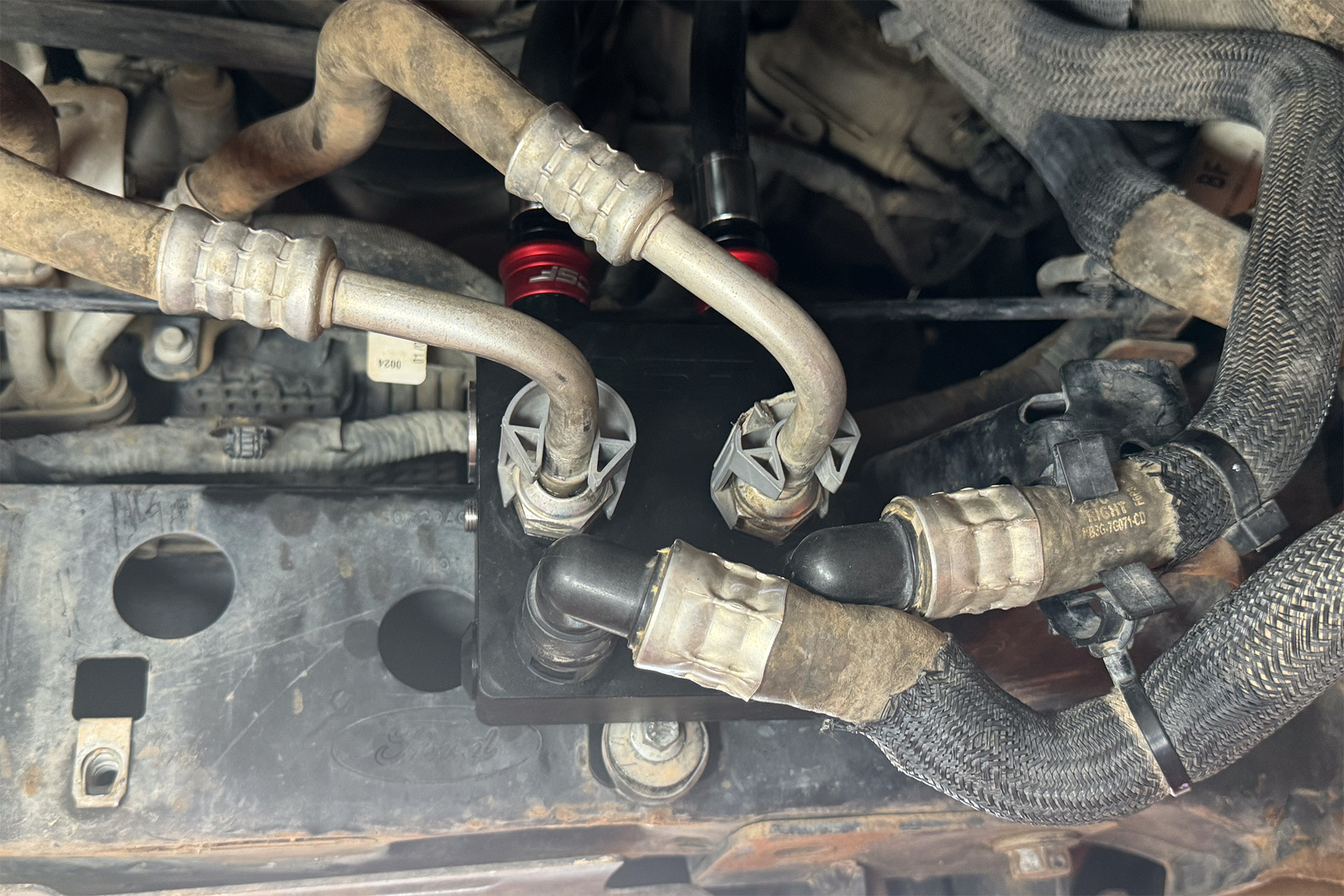

Replacing the OE Cooler with a Billet Block

Some customers might wonder why CSF elected to replace the OE Cooler instead of just looping the cooler off of it like the Bronco Raptor system. There are two important reasons for this:

1. The factory system does not include a thermostat. This makes it harder for the transmission to reach operating temp quickly, especially on cooler days. CSF integrated a thermostat into the billet plate.
2. The factory stack style oil cooler can cause some ground clearance issues. Because of its location, many owners have damaged their cooler off-road. Replacing the cooler with the CSF billet-machined plate creates a much more robust system overall.

DYME Performance Systems Inc. Fittings & Hoses

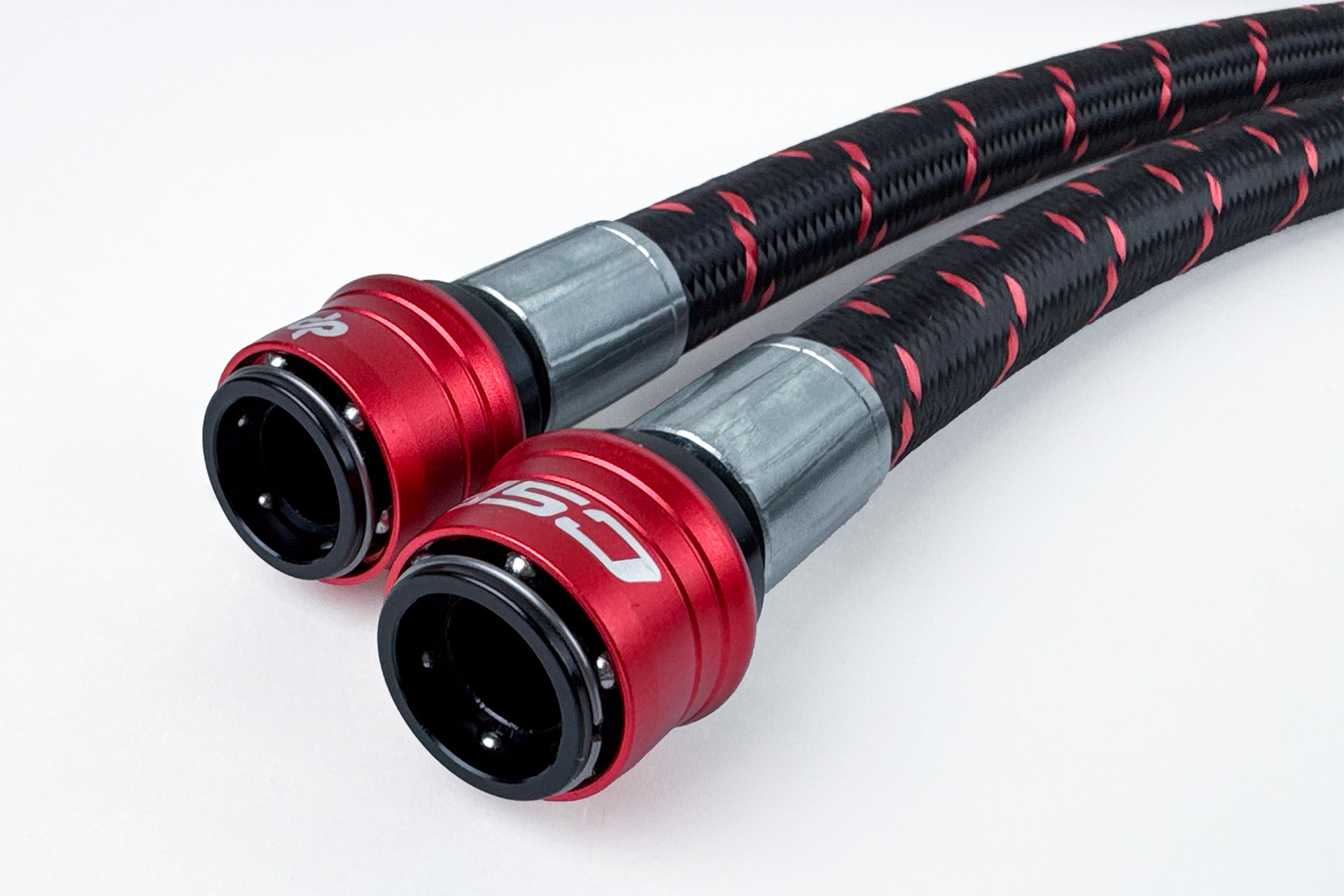

CSF partnered with DYME PSI for their exceptional quality and innovative quick-release hose and fitting solutions. The DYME Pro/Spec Quick Release Fittings offer race-proven performance with the convenience of tool-free clamshell removal and capable of withstanding up to 10,000 PSI. Quick Release fittings make the installation of the CSF kit much faster than traditional threaded fittings. In addition, they make maintenance like fluid changes much less of a headache.

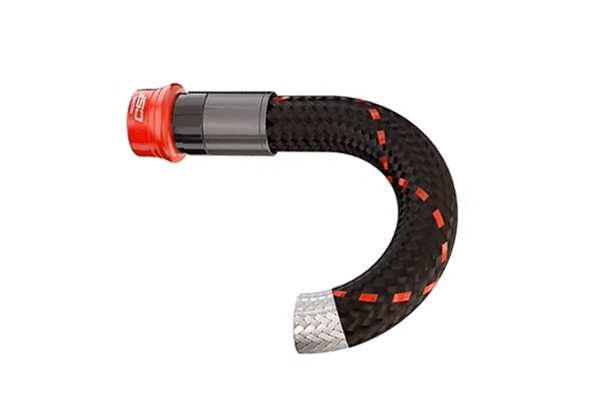

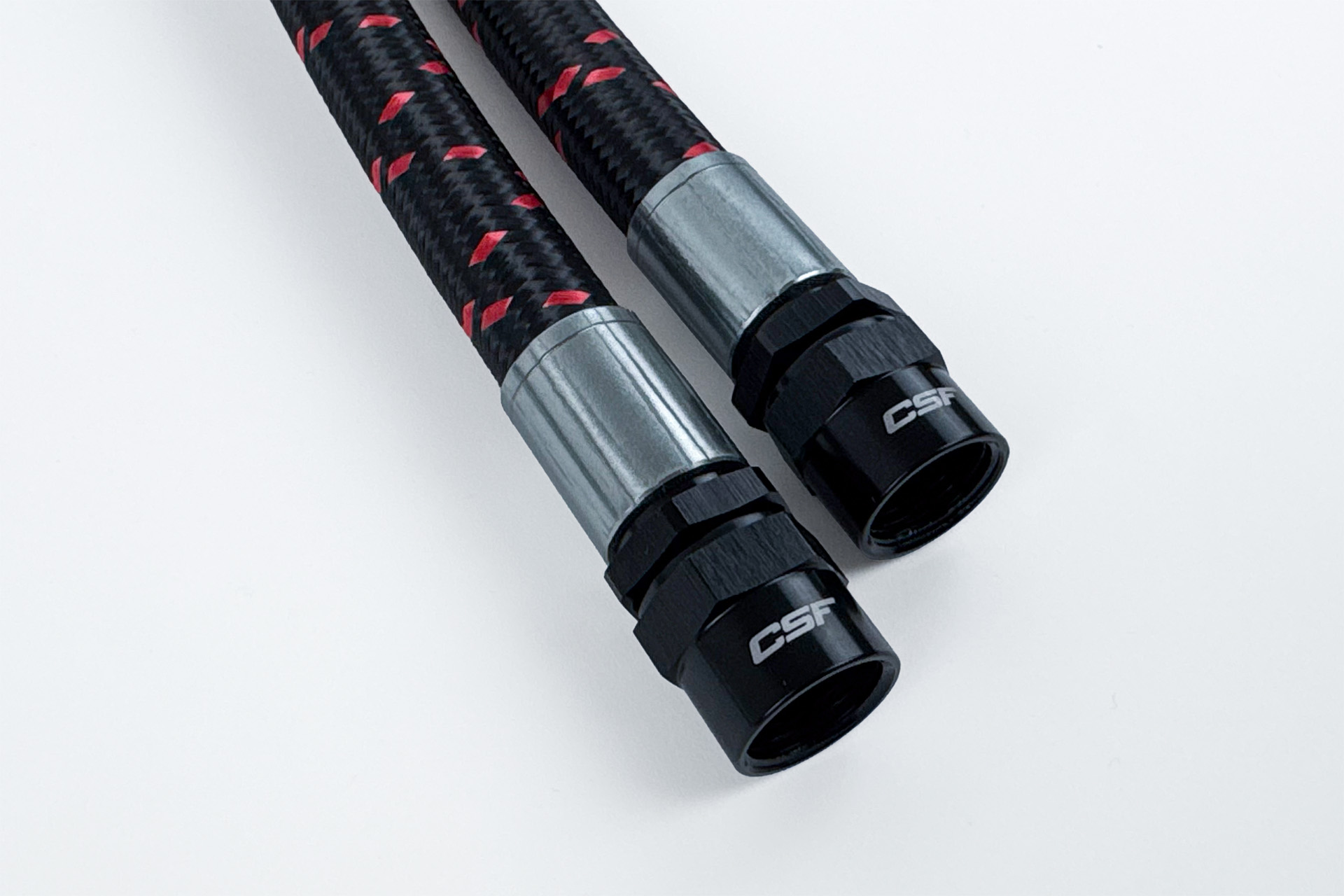

The hoses are a Superstrasse CPE lined stainless steel braided rubber hose for maximum flexibility, flow, and chemical resistance. The lines are ideal for motorsports use and more than capable of handling the rigors of off-roading.

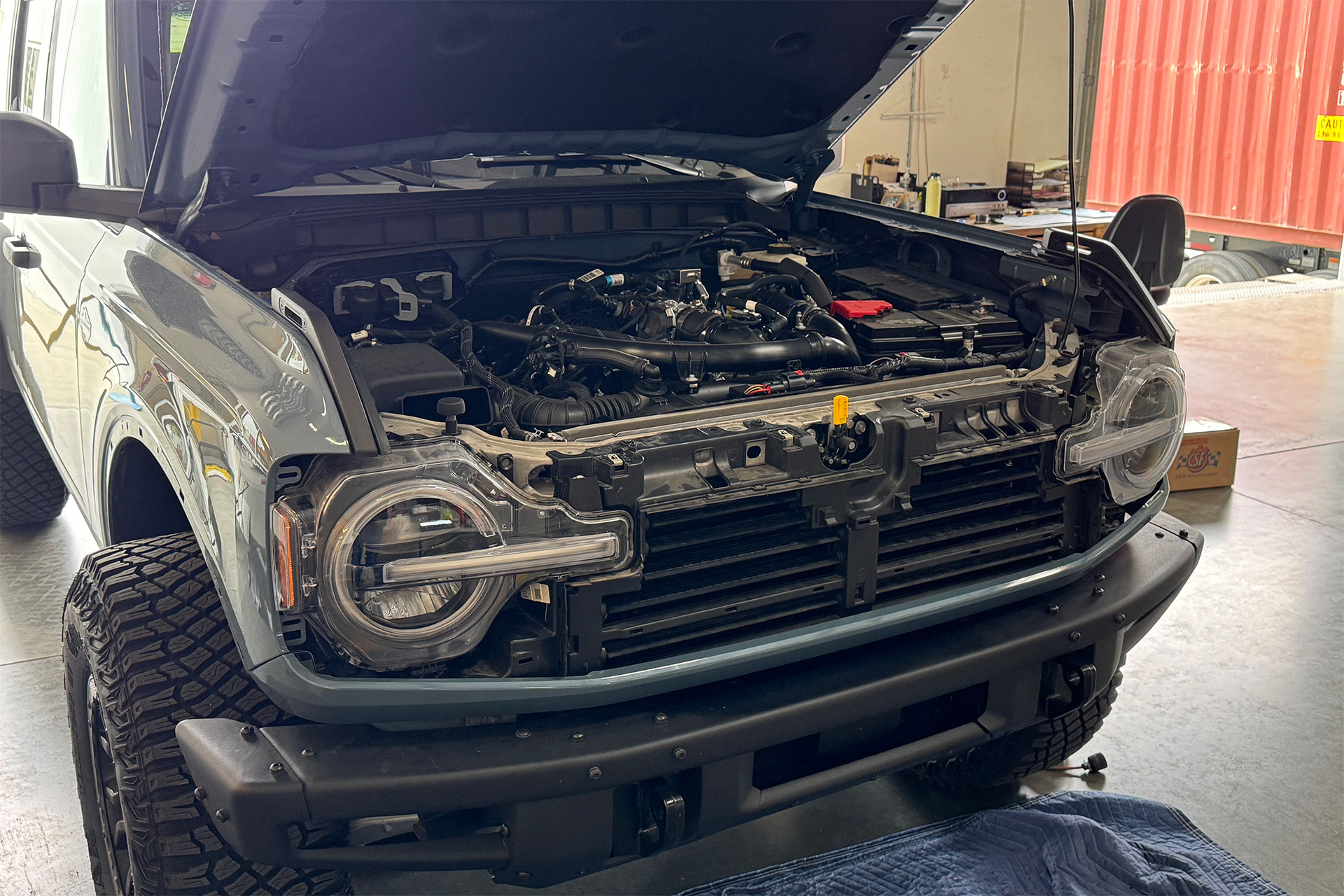

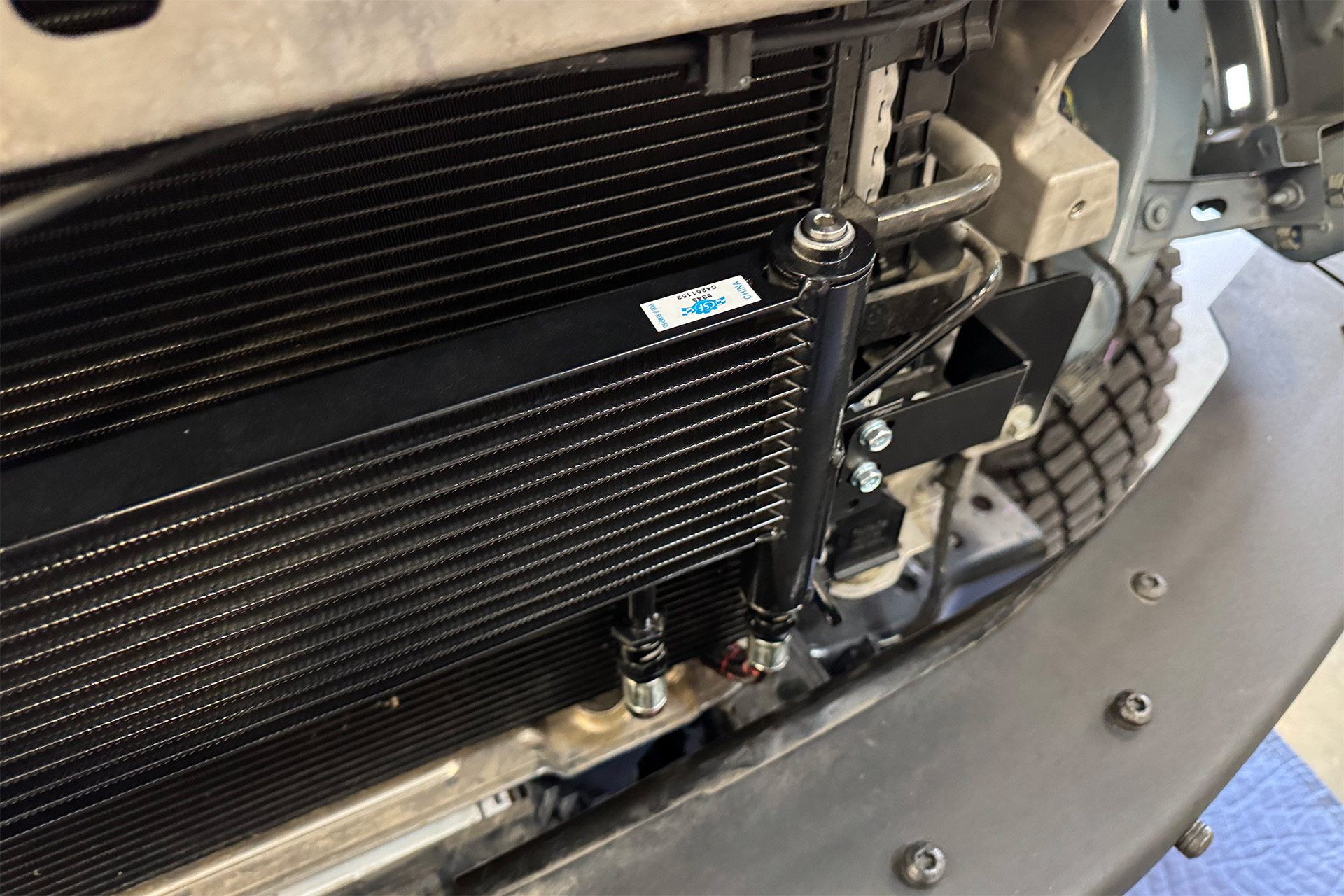

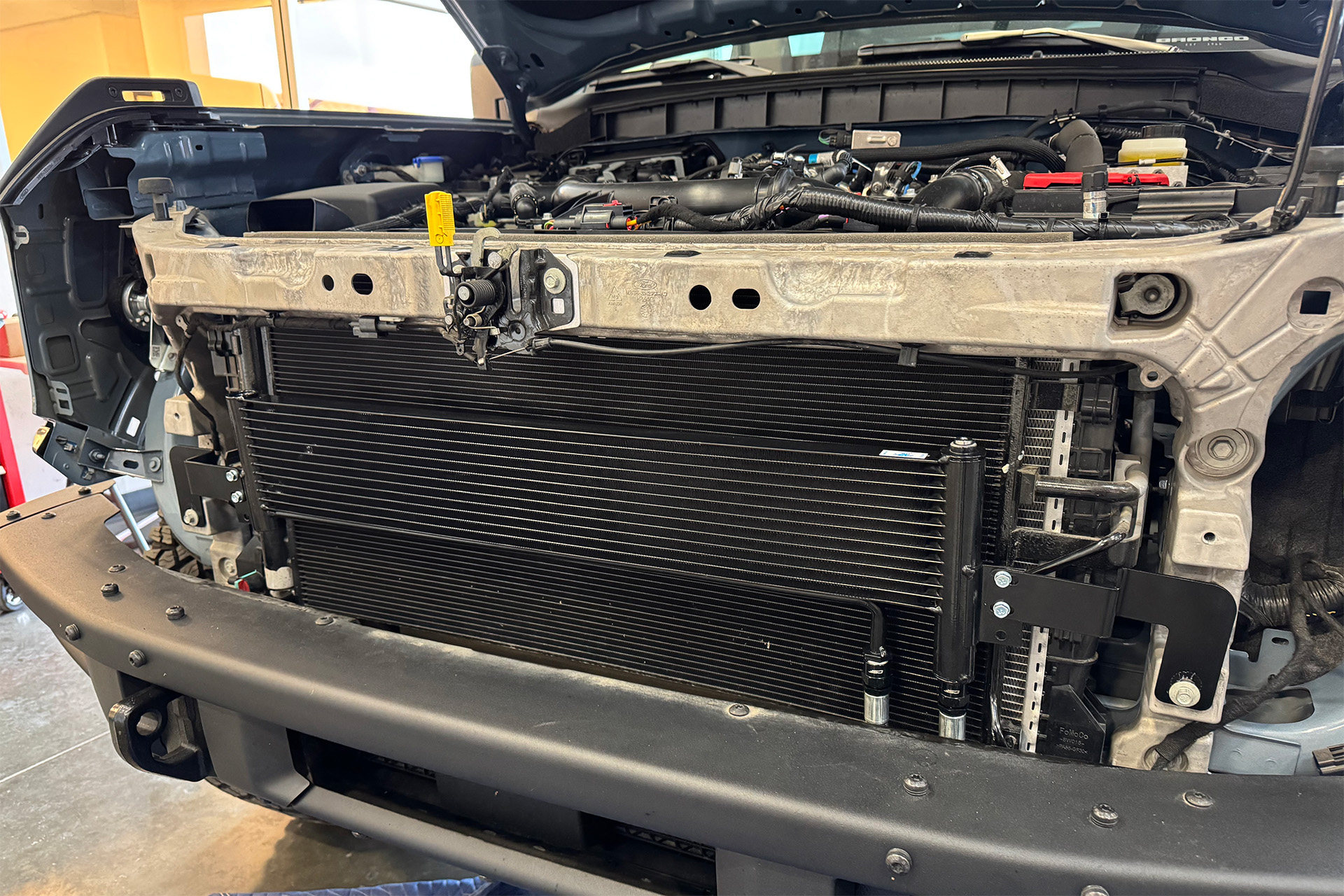

Installed Images

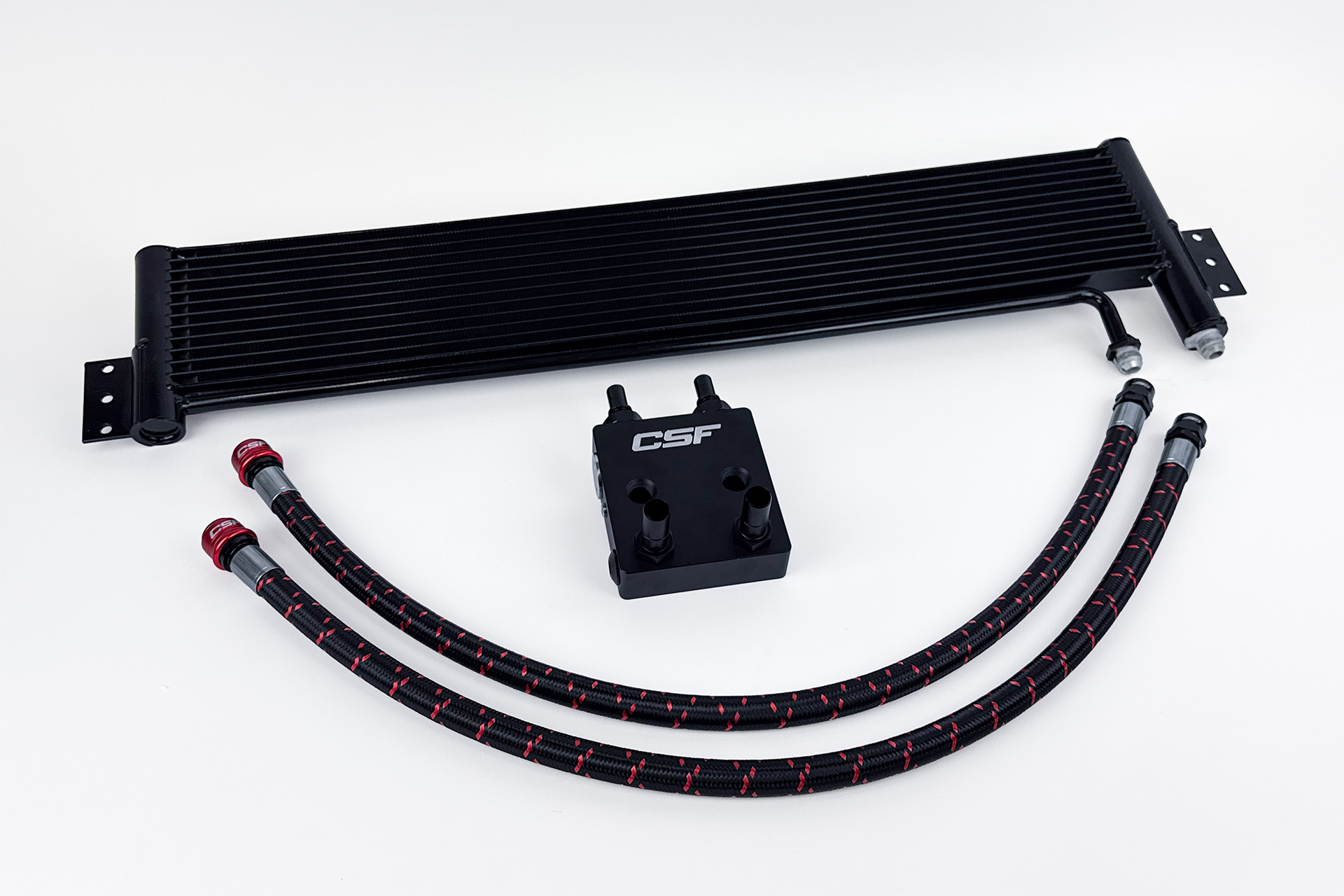

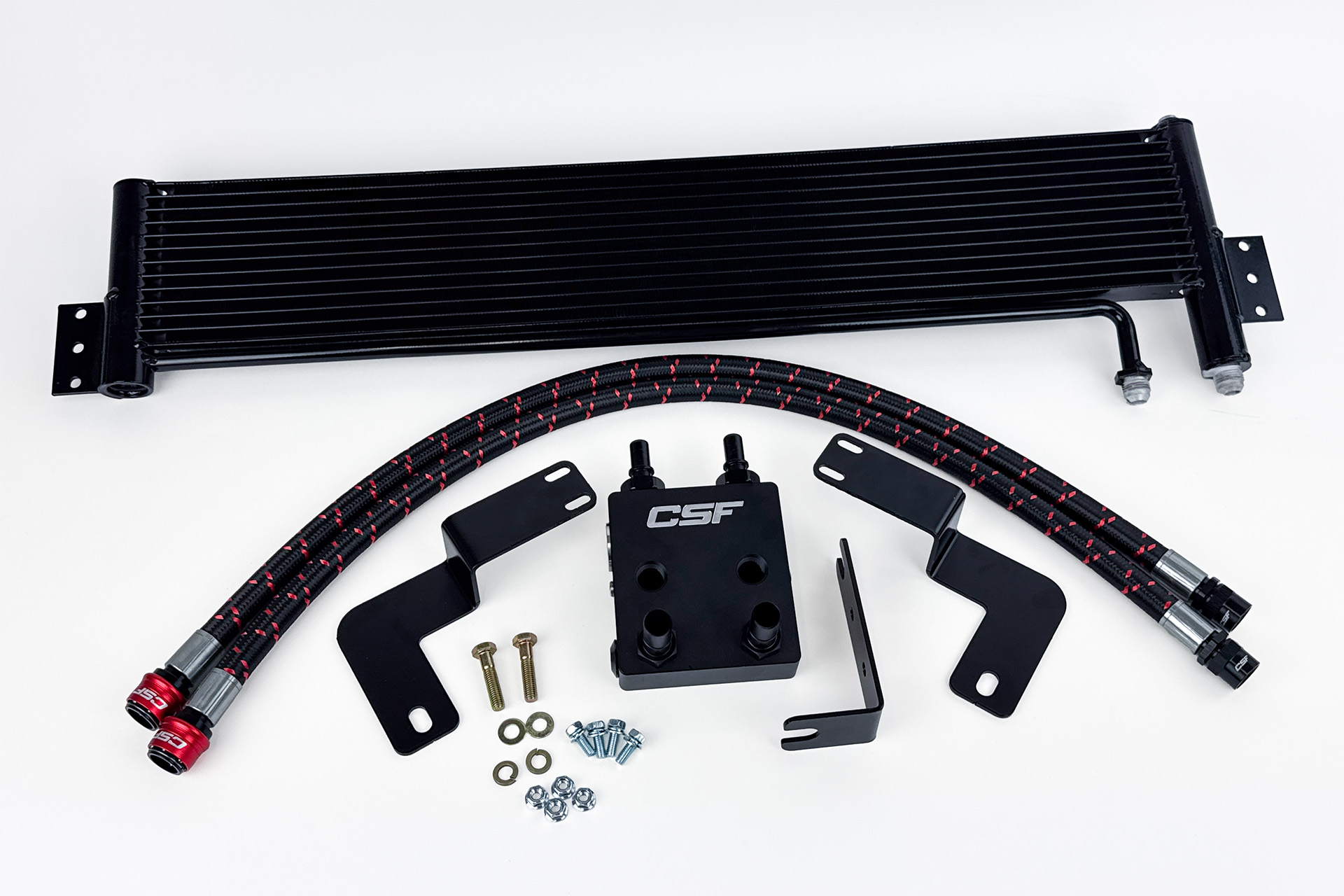

Product Images

Ford Bronco 2.7L External Transmission Oil Cooler Kit Features (CSF #8350)

• Super-High Pressure 26mm 12-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
• 11 Rows of Cooling Tubes and paired with 12 Rows of 8mm Tall Multi-Louvered Fins
• 100% All Aluminum TIG-Welded Construction
• Motorsports grade lines with patented quick release fittings by DYME PSI
• CNC Billet Machined Thermostatic Plate
• Includes all Brackets and Hardware
• Includes installation instructions
• 2-Year Limited Warranty

• Applications:
  • 2021+ Ford Bronco 2.7L EcoBoost

• OEM Part Numbers:
  • Ford: MB3Z 7A095 A

• MSRP / MAP: $1,095.00 USD
