New CSF McLaren 12C / 650S / 675LT / 570s / 600LT / 720S / 765LT / 750S / GT / GTS High-Performance Heat Exchangers

( CSF #8212 & #8213 )

Upon releasing the updated Billet Charge-Air-Coolers (CSF #8352) for the 720S/765LT/750S/GT/GTS, CSF received quite a few requests for matching High-Performance Heat Exchangers to pair with them. The engineering team worked diligently to bring the new parts to the market as soon as possible. CSF is now pleased to announce the new Front Mount Heat Exchangers for the McLaren MP4-12C, 650S/675LT, 570S/570GT/600LT, 720S/765LT, 750S, and GT/GTS.

There is some fitment crossover between the two models of heat exchangers on the 650S/675LT and  720S/765LT models. Please verify with your dealer which is the correct application for your McLaren.

Design & Engineering

The McLaren M838TE and M840TE engines are marvels of modern engineering. These twin-turbo V8s are capable of massive amounts of horsepower for their size. One of the limiting factors in their power limits is the Charge-Air system. The Charge-Air-Coolers themselves are the first limiting factor due to their pressure limits. The CSF by PWR Charge-Air-Coolers (CSF #8352) solve this issue with their stronger Bar & Plate cores.

The next limitation is the amount of heat that can be removed from the system. For this the limiting factor is the original front mount heat exchangers. The goal in upgrading this system is to lower intake air temperatures (IATs) at higher boost levels and offer faster recovery from inevitable heat soak. The CSF engineering team worked hard to design the most efficient heat exchangers possible that fit into the factory housing pods.

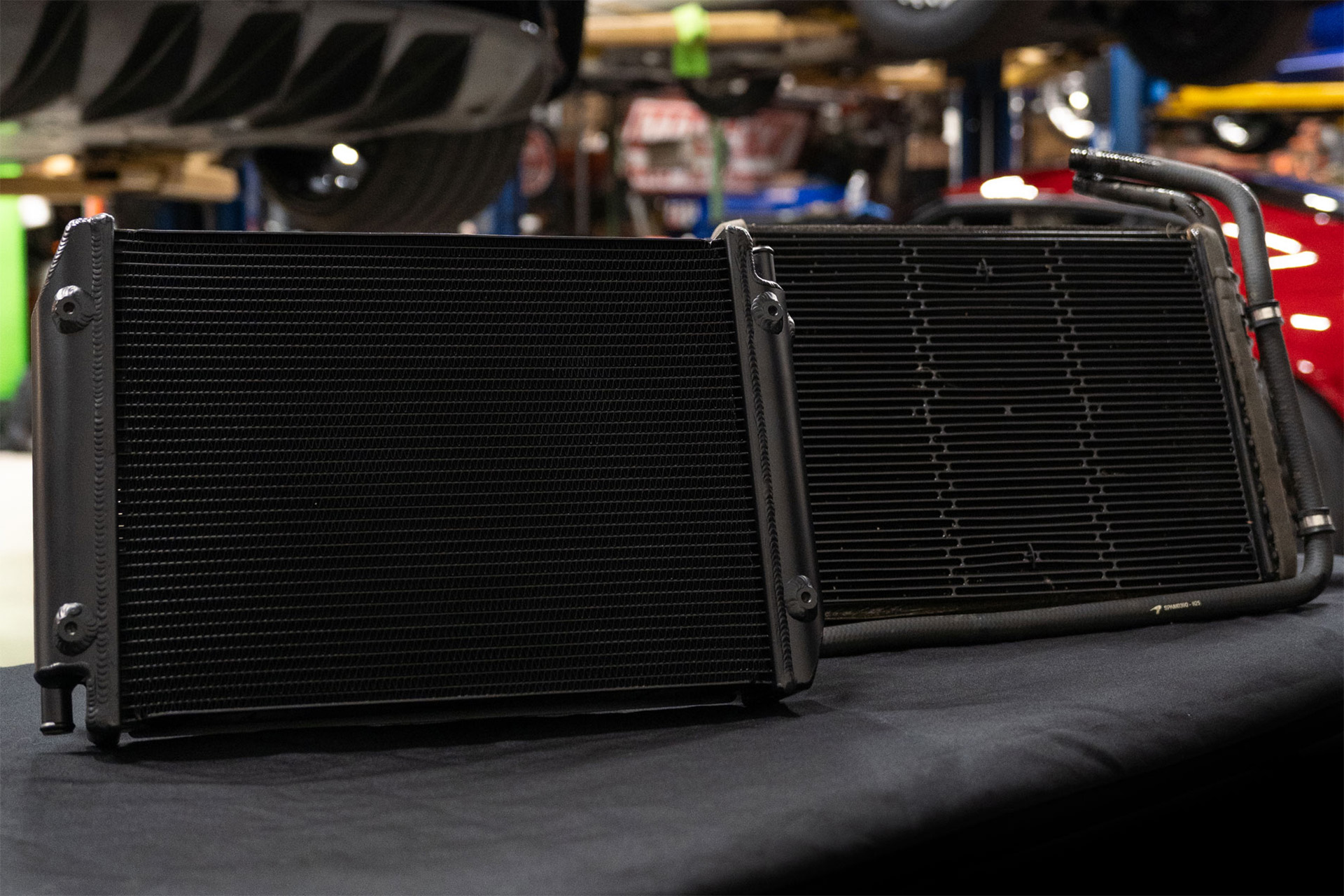

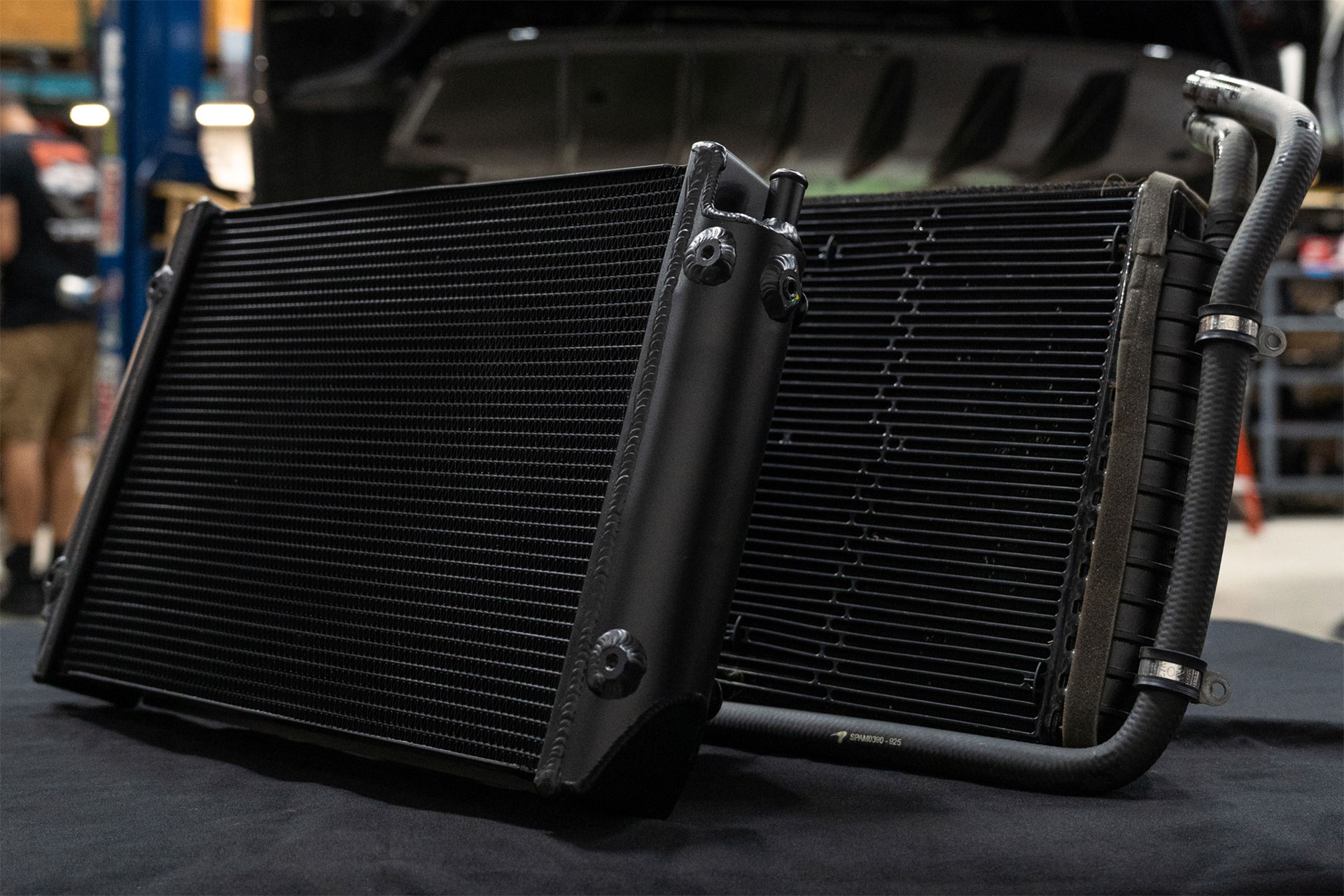

OEM VS CSF

The factory heat exchangers are very well designed and efficient like most of the systems on these McLarens. However, they were optimized to function at factory power and boost levels so there was definitely room for improvement.

Both the factory and CSF heat exchanger cores have 39 Cooling Tubes and 40 Fin Rows. However, the CSF units feature a 54mm 2-Row core. This is a huge upgrade over the 1-Row core found in the factory coolers. The CSF core also utilizes CSF’s Exclusive B-Tube Technology which increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance.

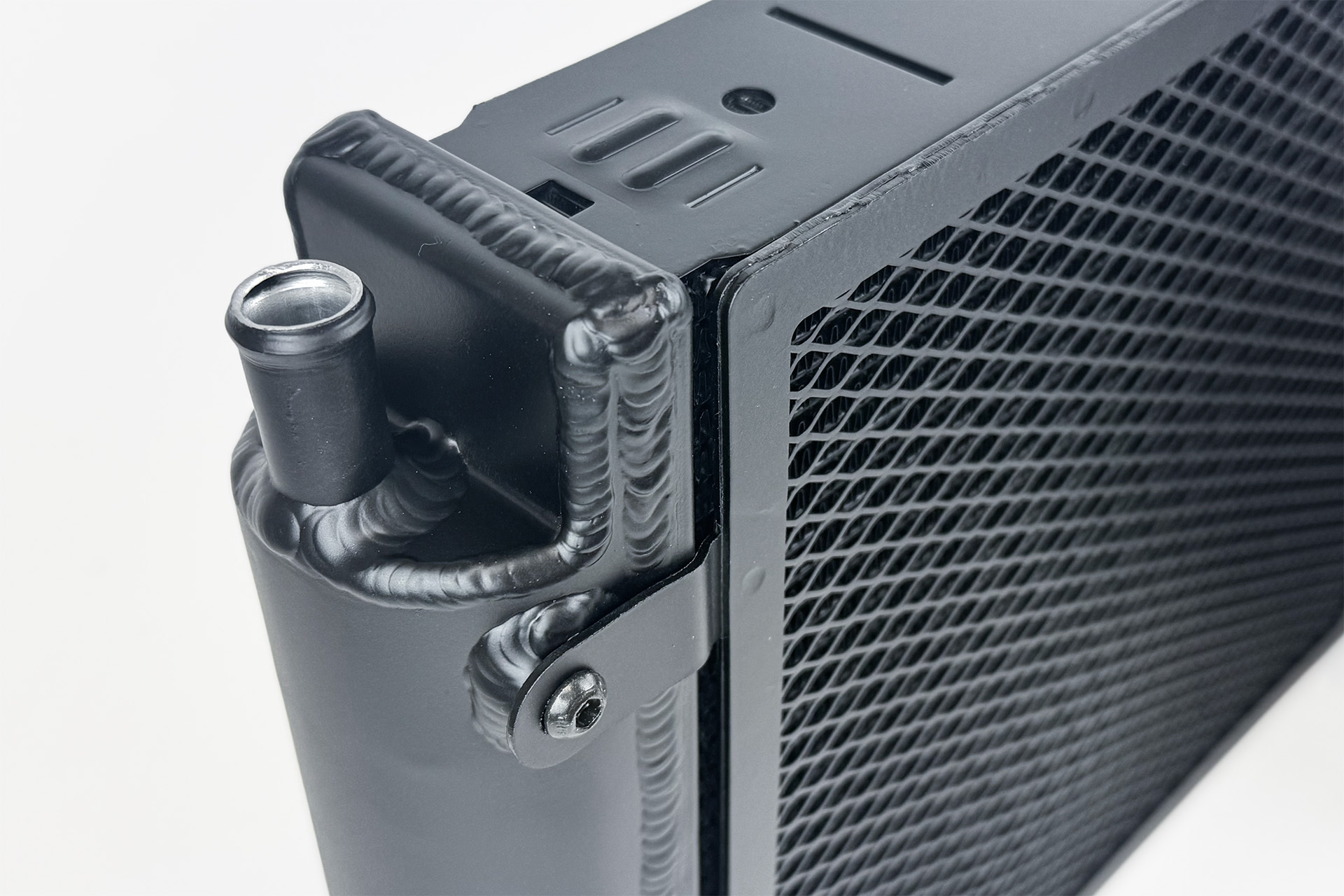

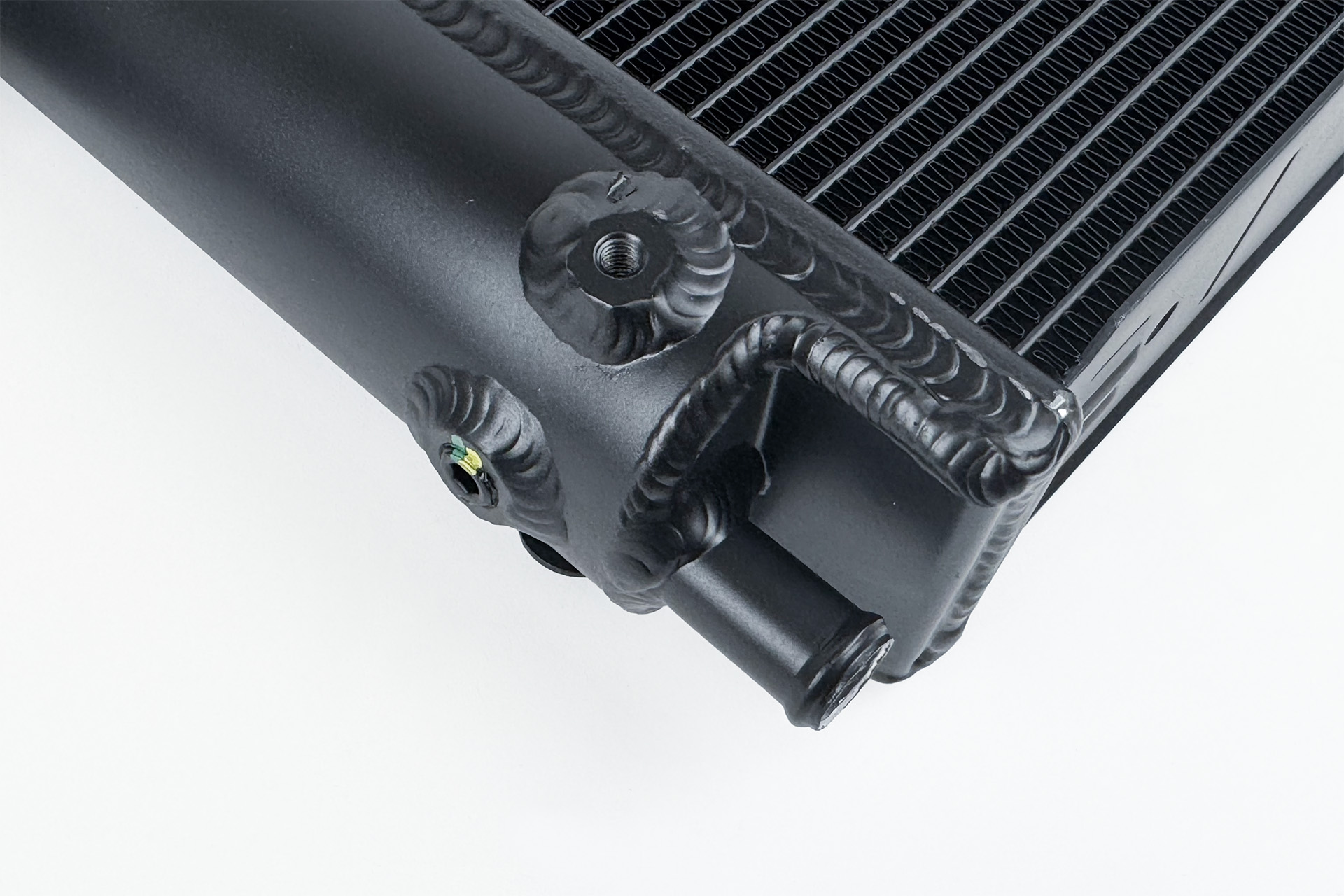

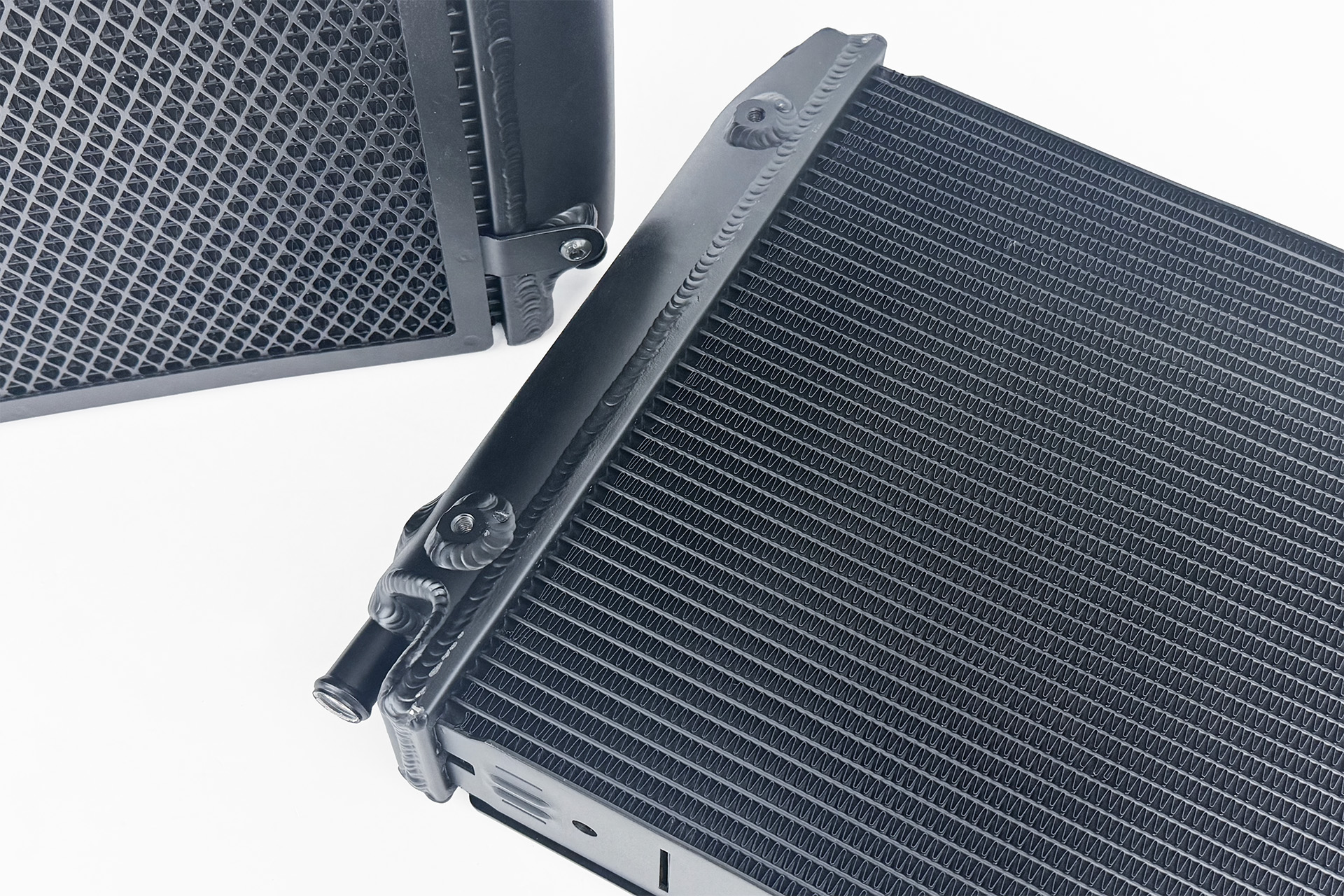

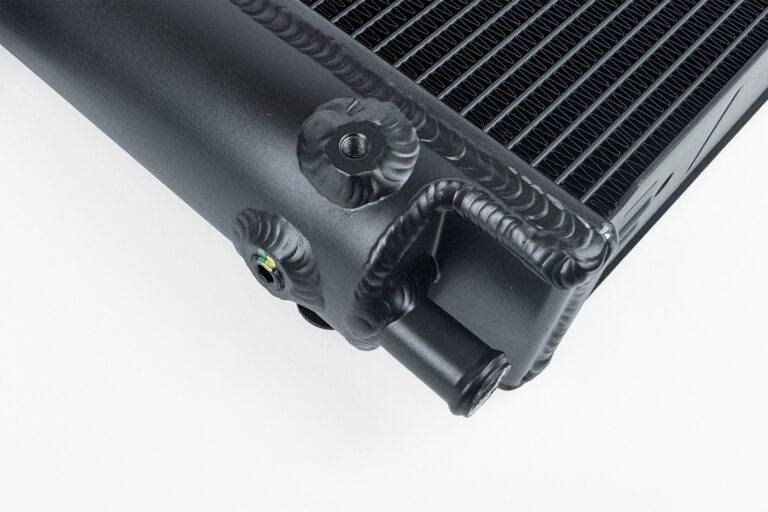

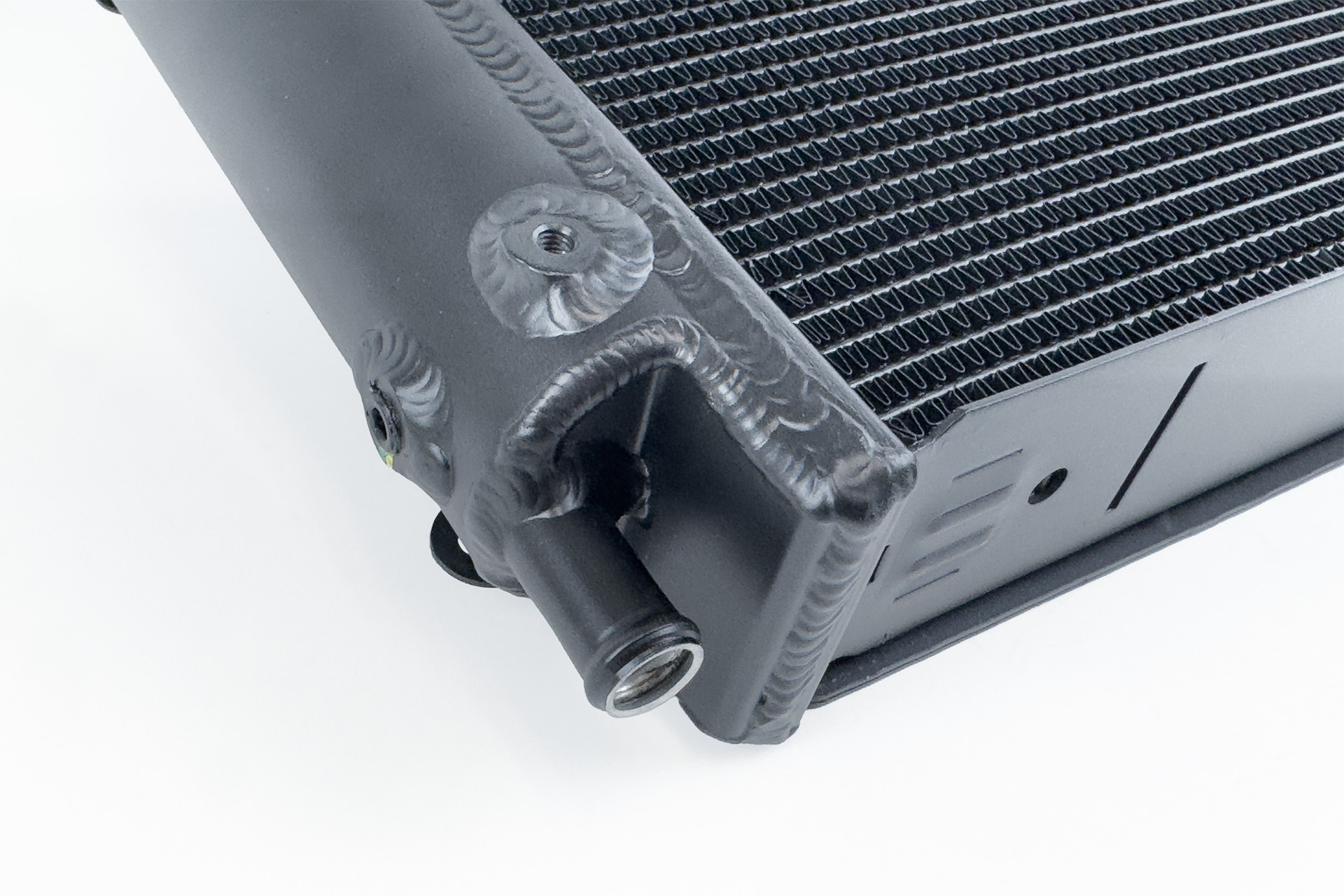

The factory units are an all metal design but still use a crimp and brazed construction method which is weaker than CSF’s TIG welded construction. The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The outlet tanks include pre-plugged 1/8th NPT temperature sensor ports for those looking for more accurate coolant temperature readings.

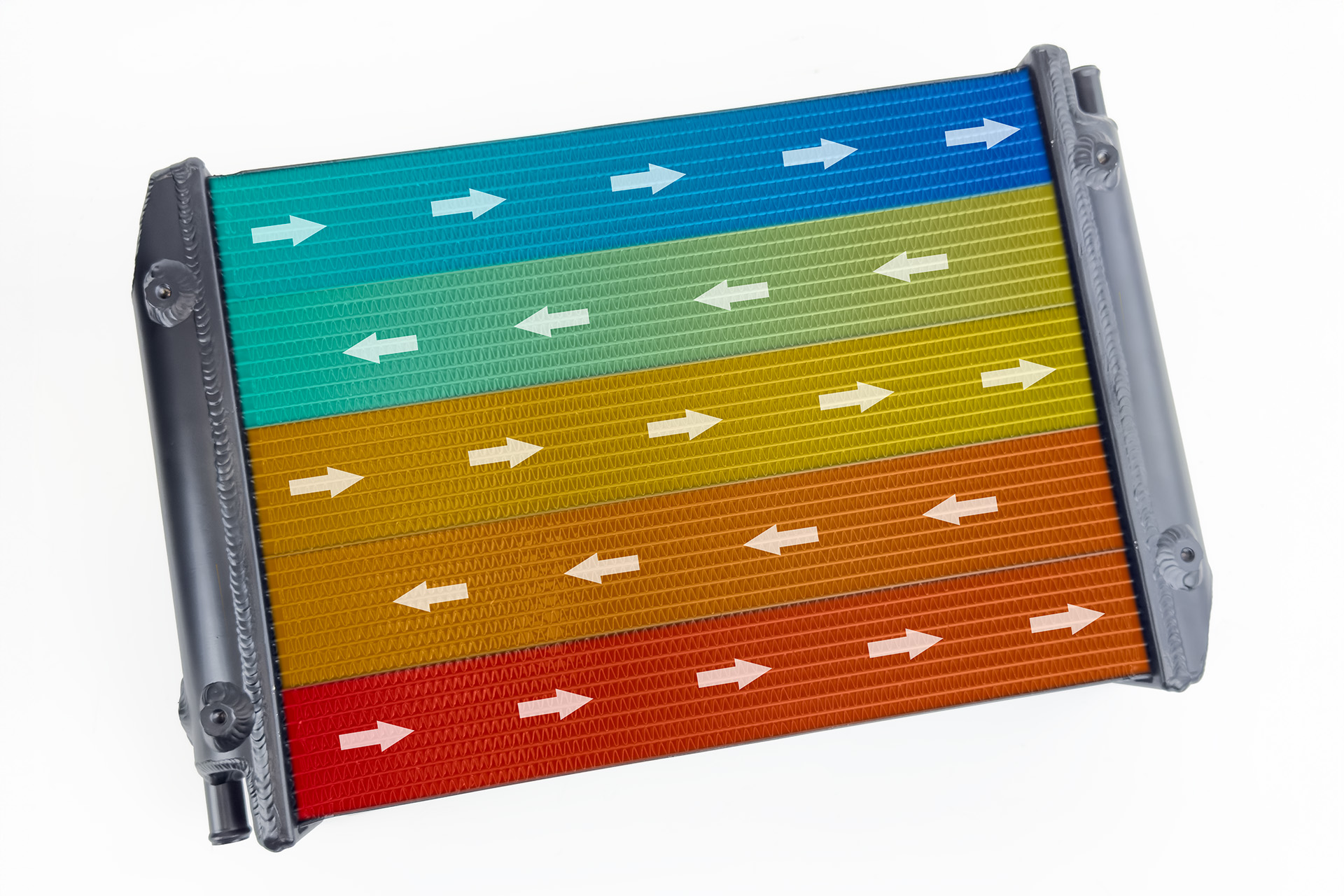

5-Pass Design

The CSF Heat Exchangers utilize a 5-pass design giving the coolant for the charge air system a longer dwell time and maximum heat dissipation. Each pass allows for more heat to be extracted from the system returning coolant to the charge-air-coolers that is as close to ambient temperature as possible.

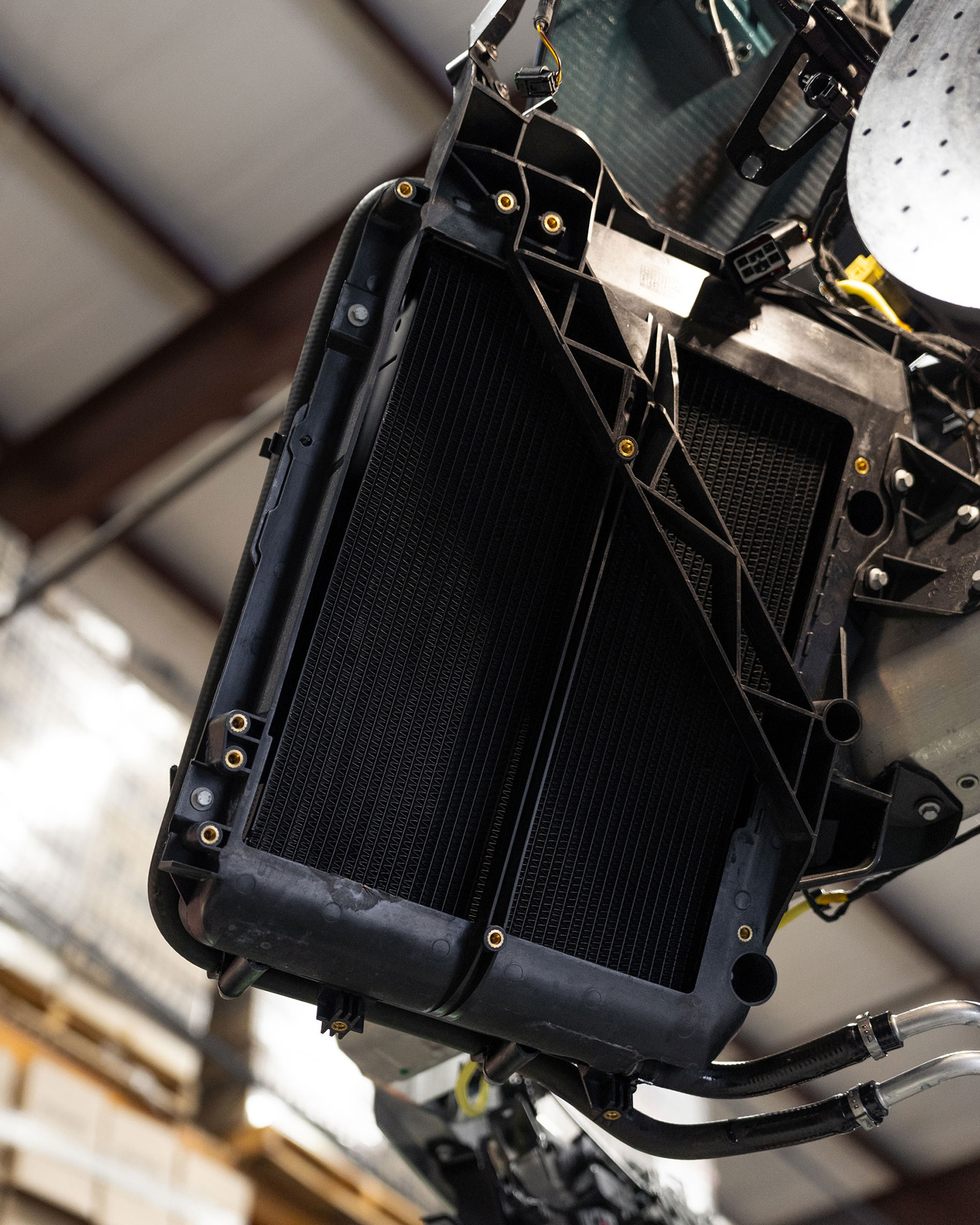

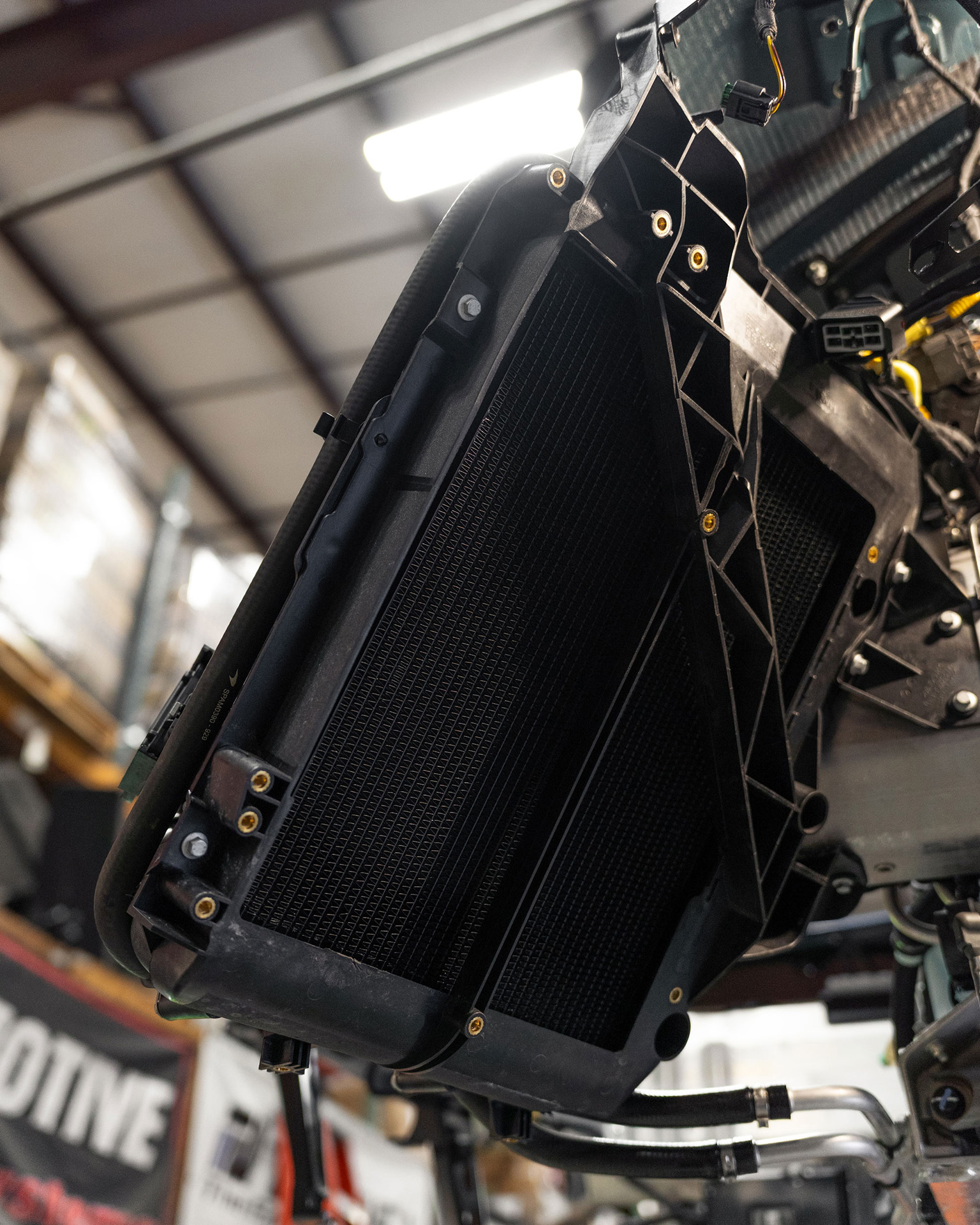

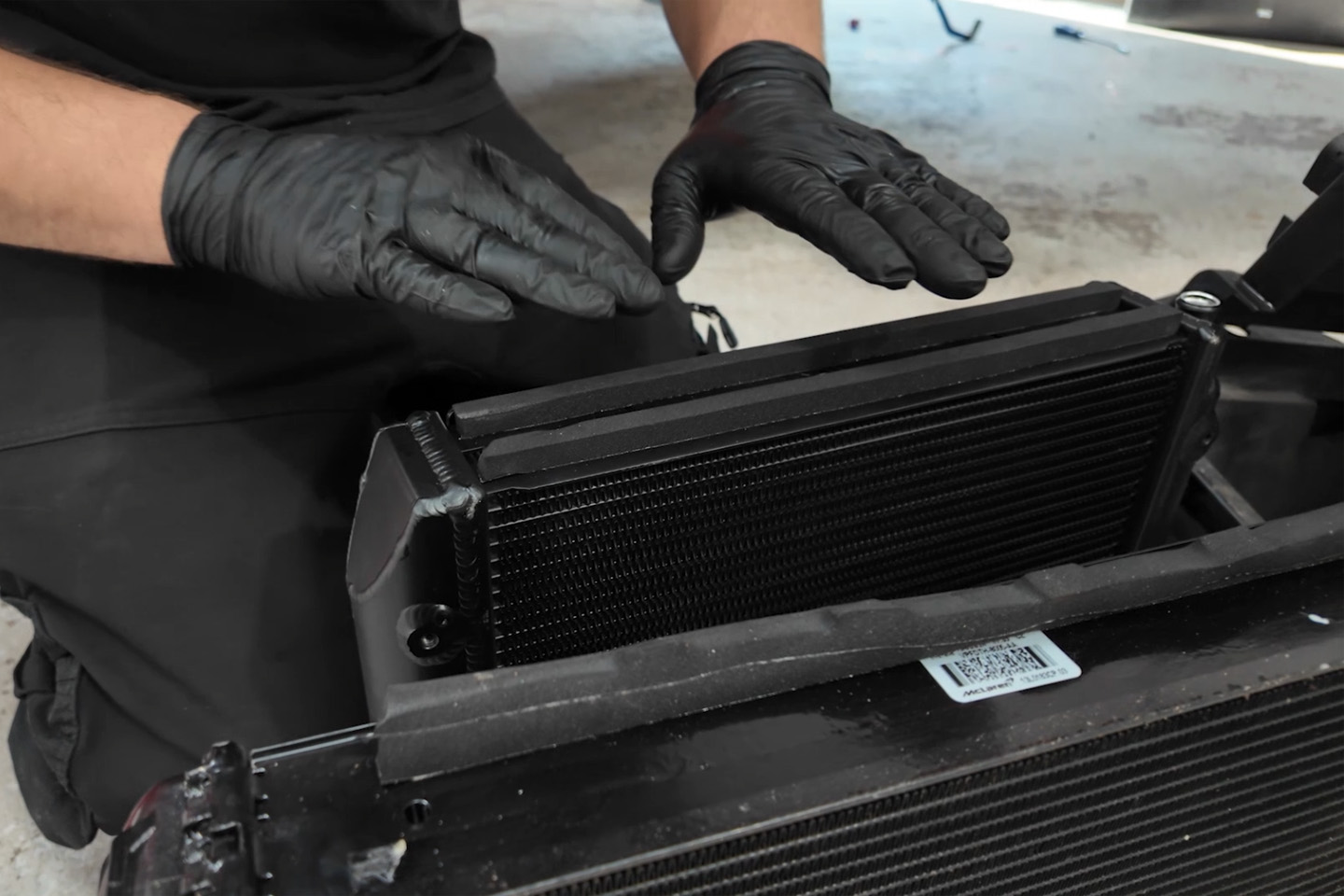

Plug and Play Installation

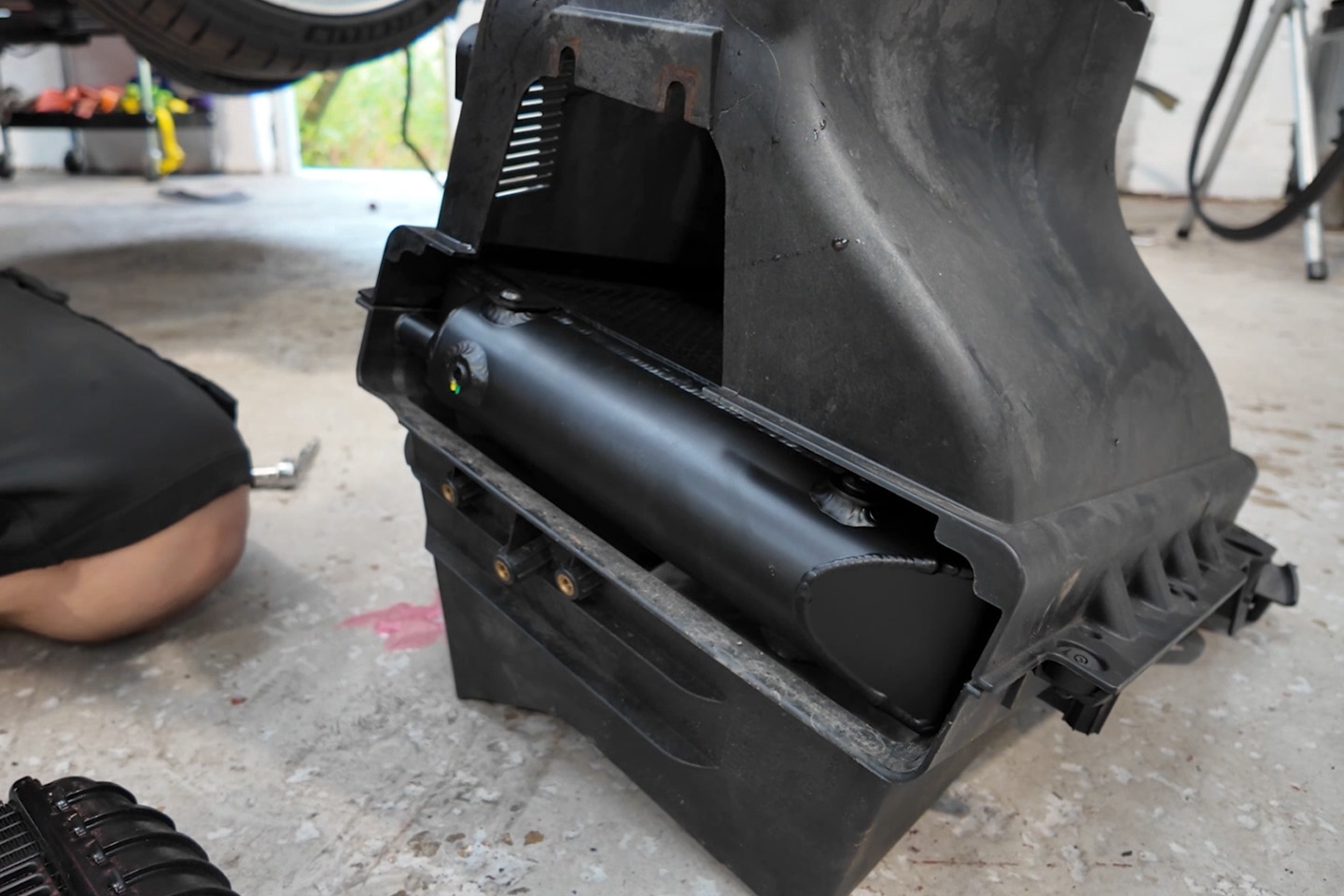

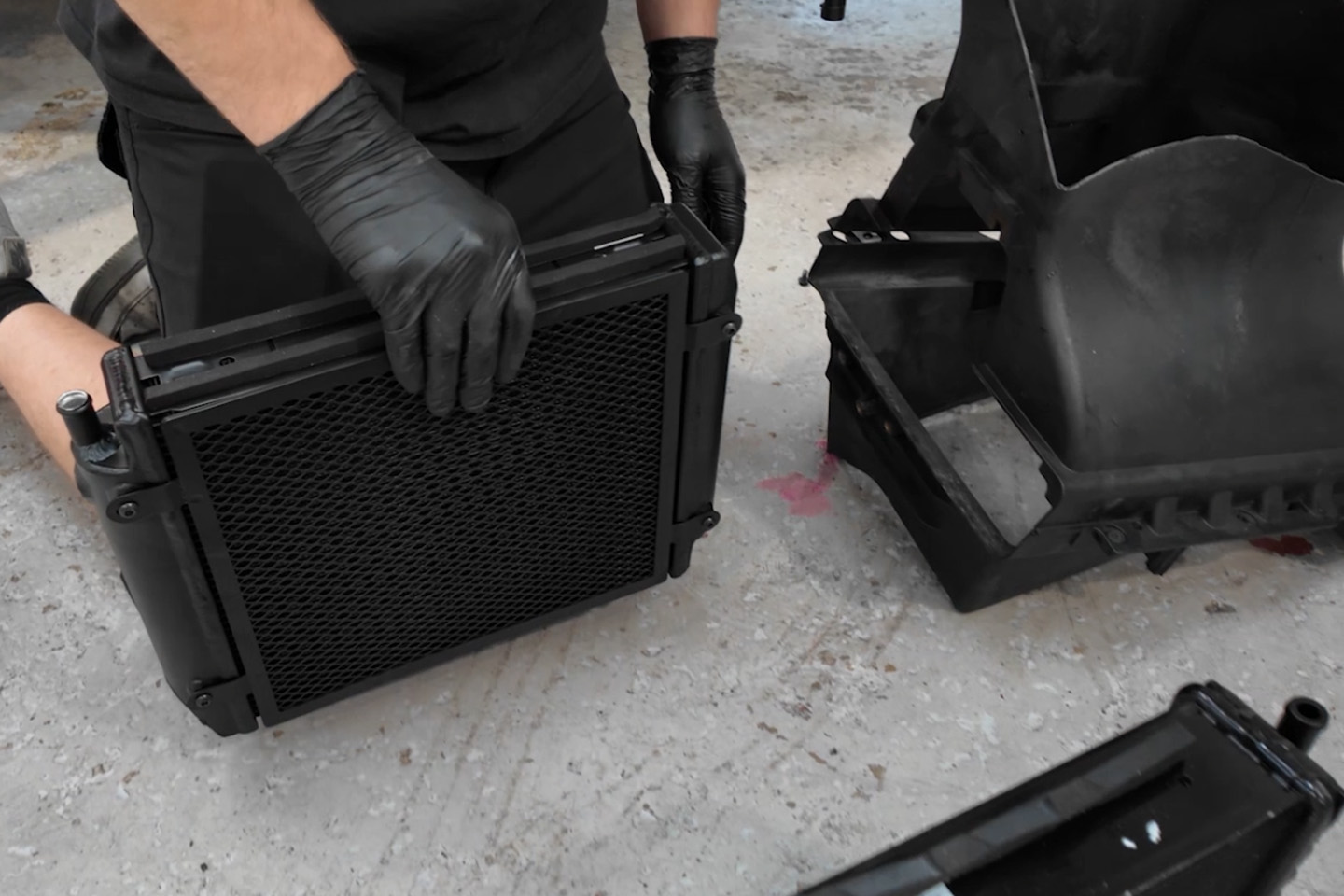

The OE foam strips are reused to seal and hit the heat exchangers in the factory pods and improve airflow. The CSF heat exchangers mount in the factory pods and require no modifications or cutting.

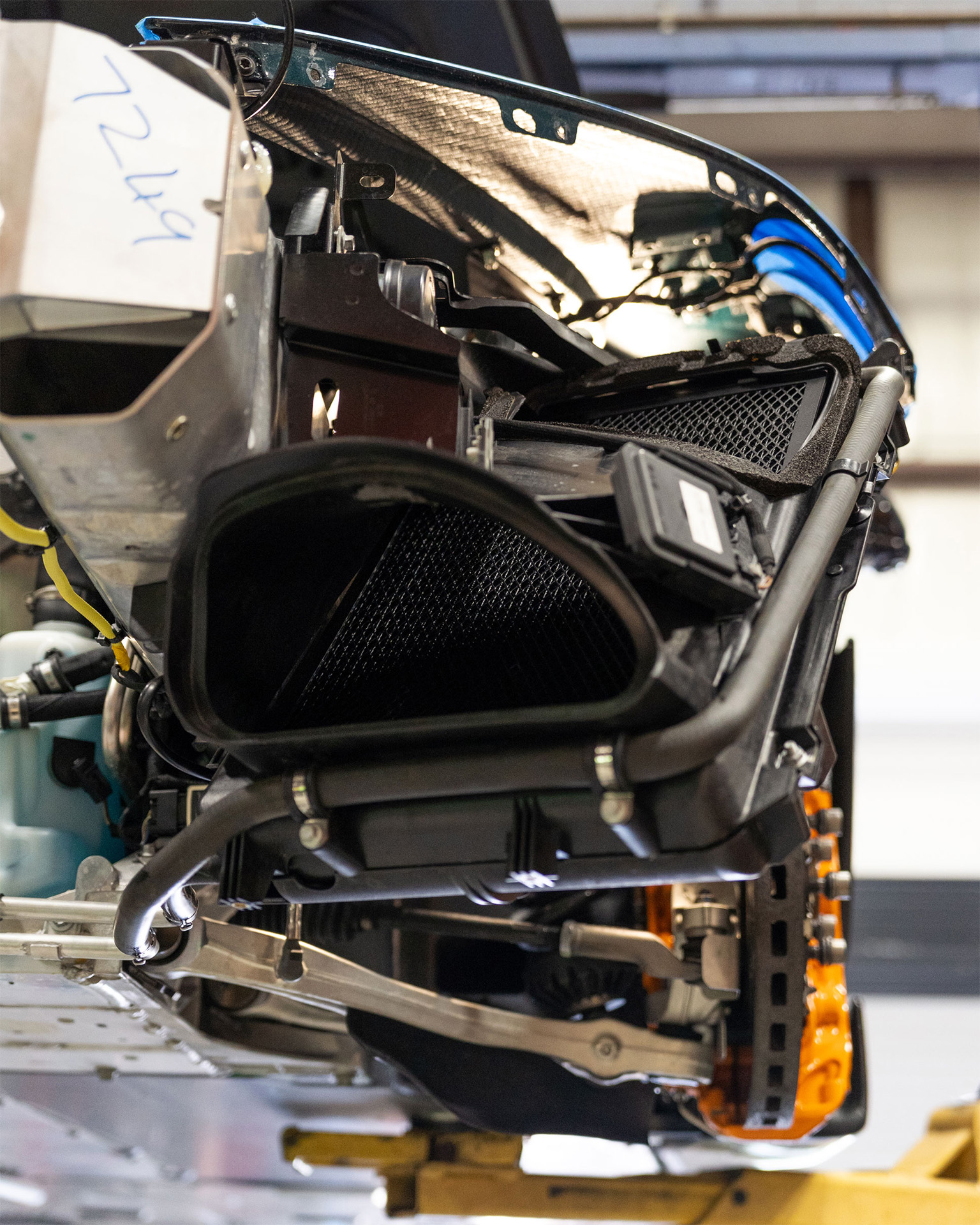

McLaren 675LT Installation

McLaren 720S Installation – Titan Motorsports

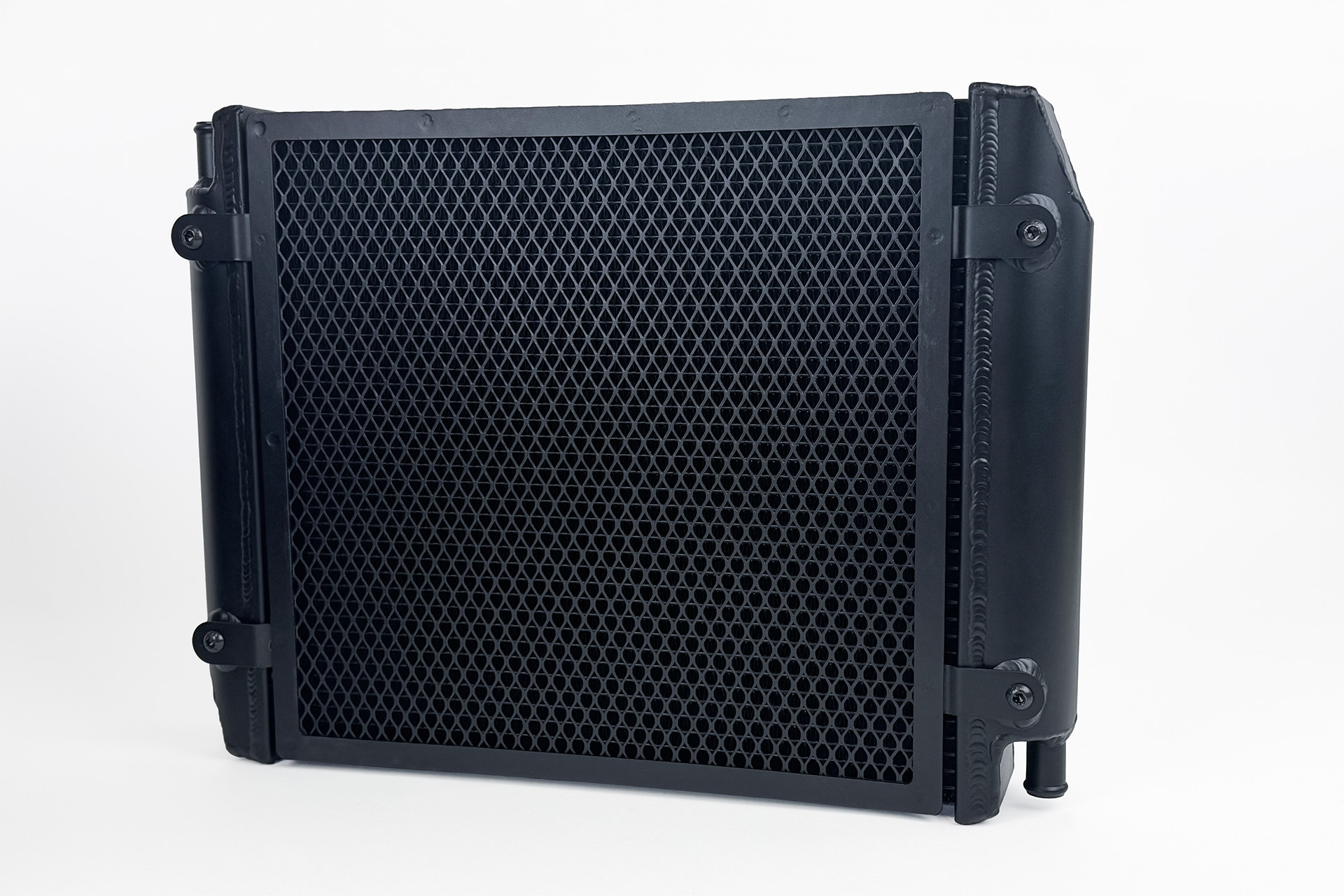

Included Rock Guards

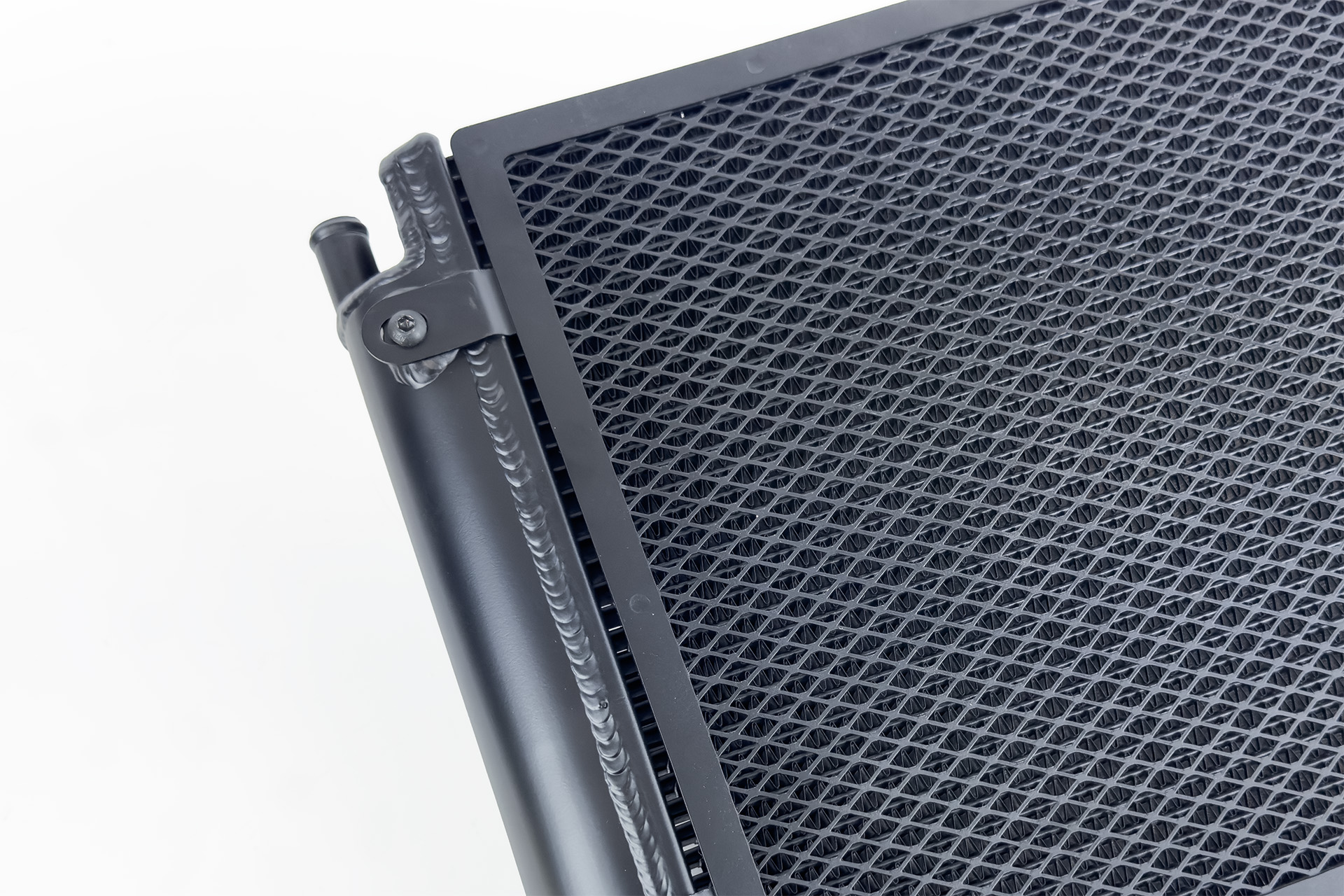

CSF includes removable metal rock guards to replace the OE plastic pieces (McLaren OE: 11L0528CP). These upgraded rock guards offer additional protection and durability. Now you can feel more confident that your cooling system is safer from road debris.

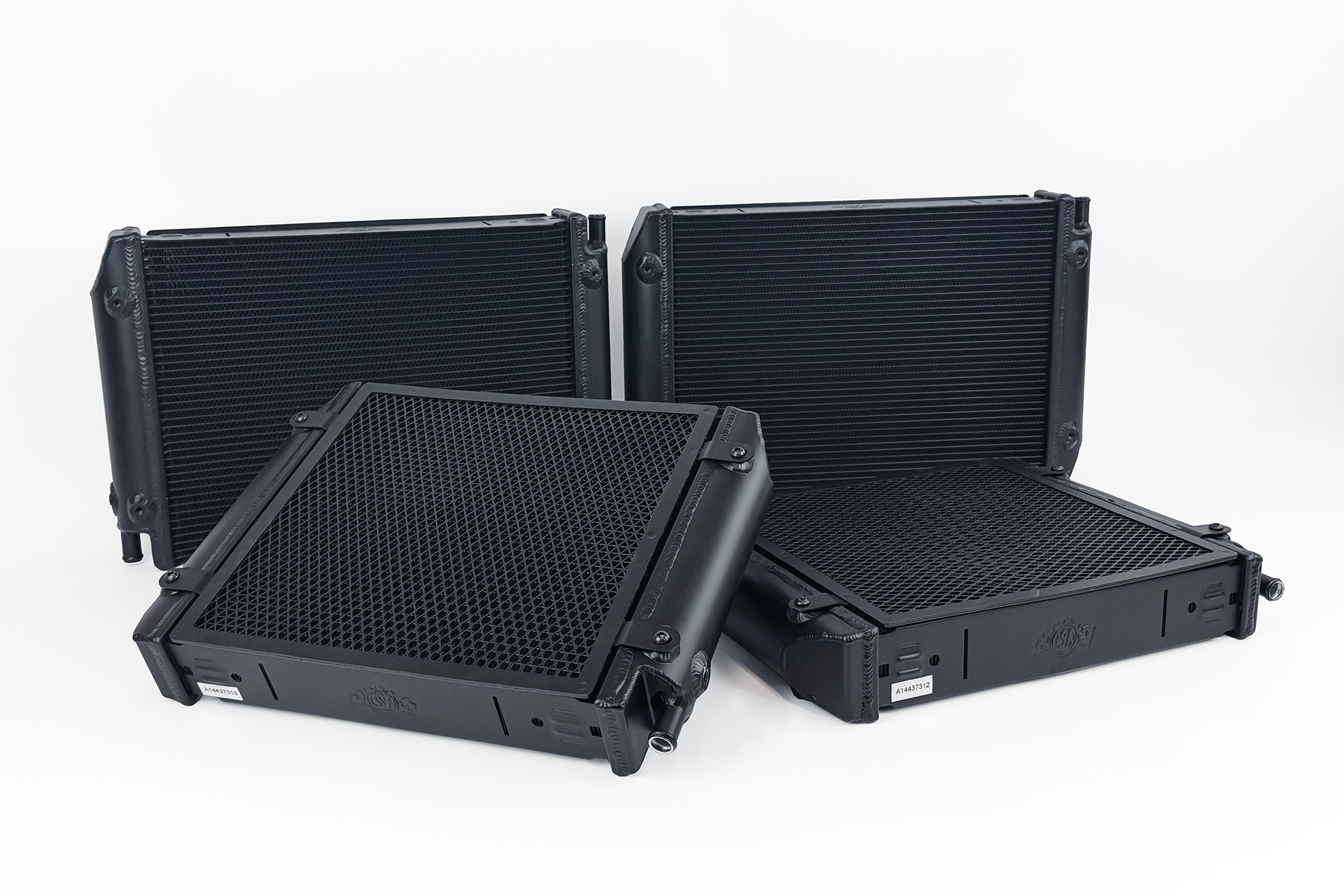

Model Differences

The CSF #8212 and #8213 heat exchangers cover all 12C, 650S/675LT, 570S/570GT/600LT, 720S/765LT, 750S, and GT/GTS models. There is some overlap in fitment for the 650S and 675LT models so you should consult a McLaren dealership with your VIN to confirm which coolers your application requires. The difference in the two heat exchanger models is the core height (measurement between tanks). The CSF #8212 (McLaren OE: 13L0183CP or 11L0375CP) are ~59mm (2.3 in) taller than the CSF #8213 (McLaren OE: 11L0241CP).

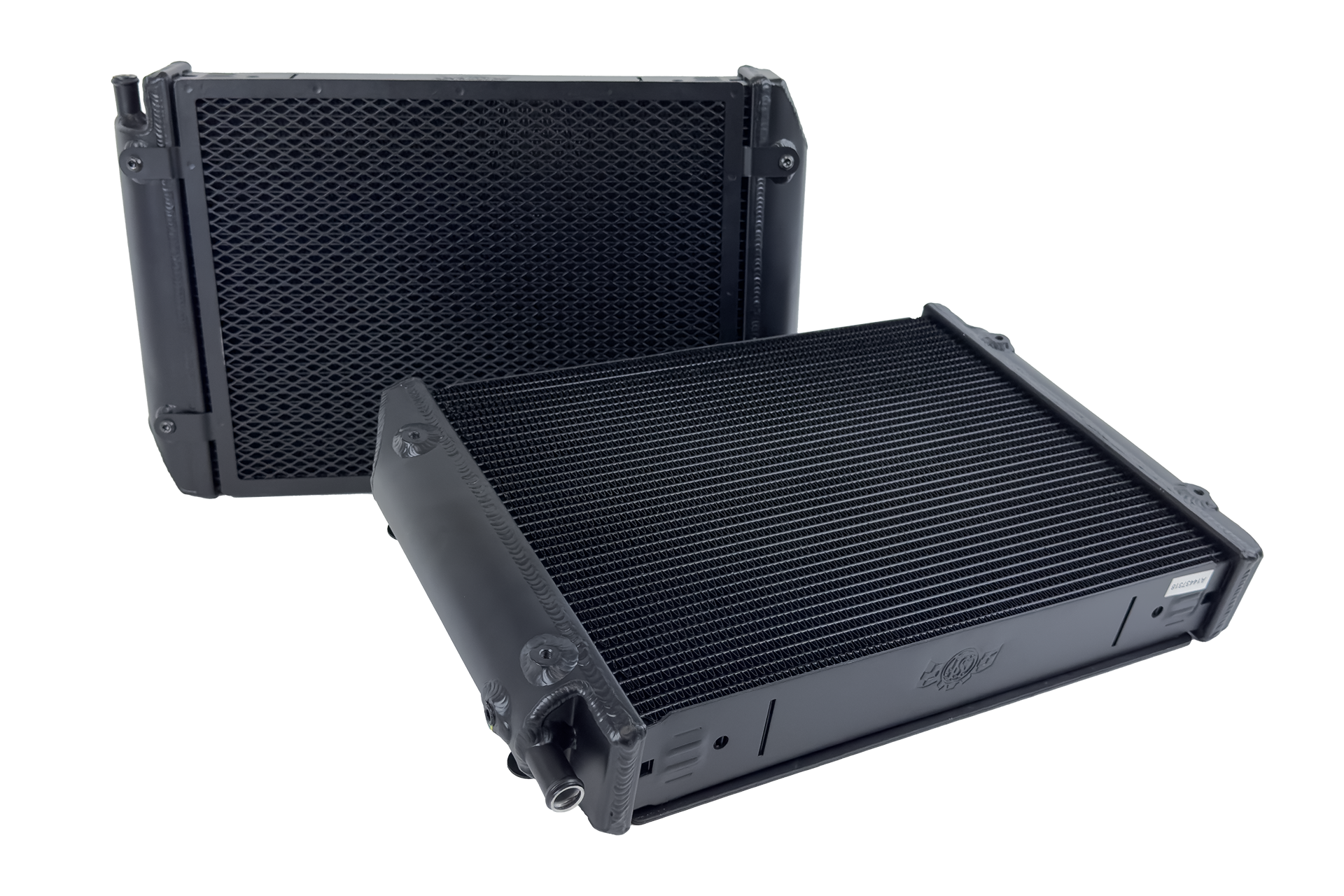

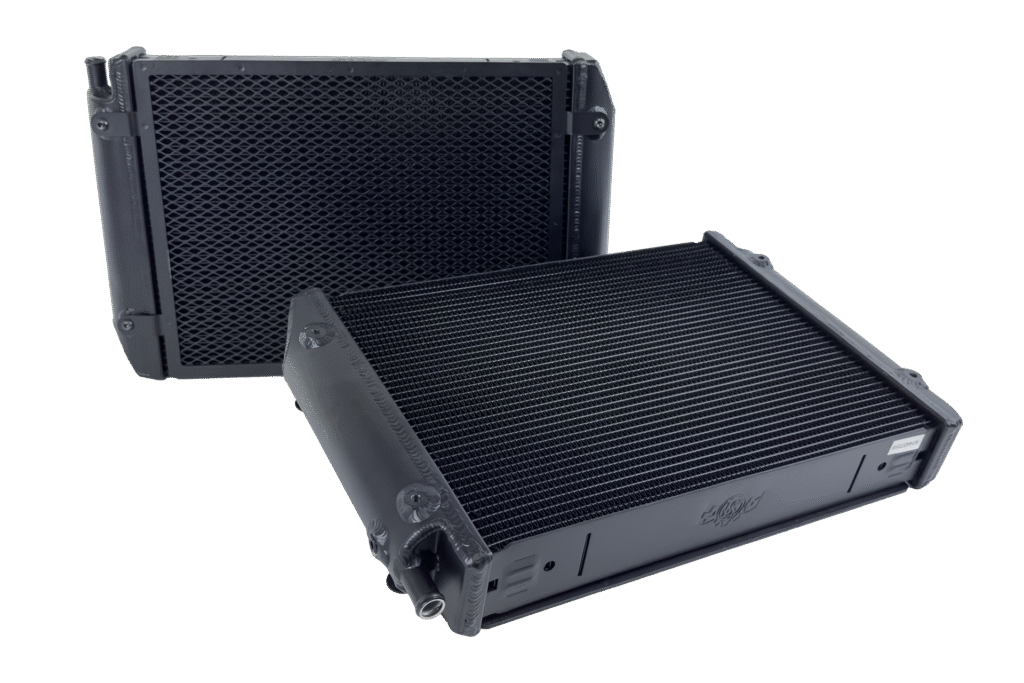

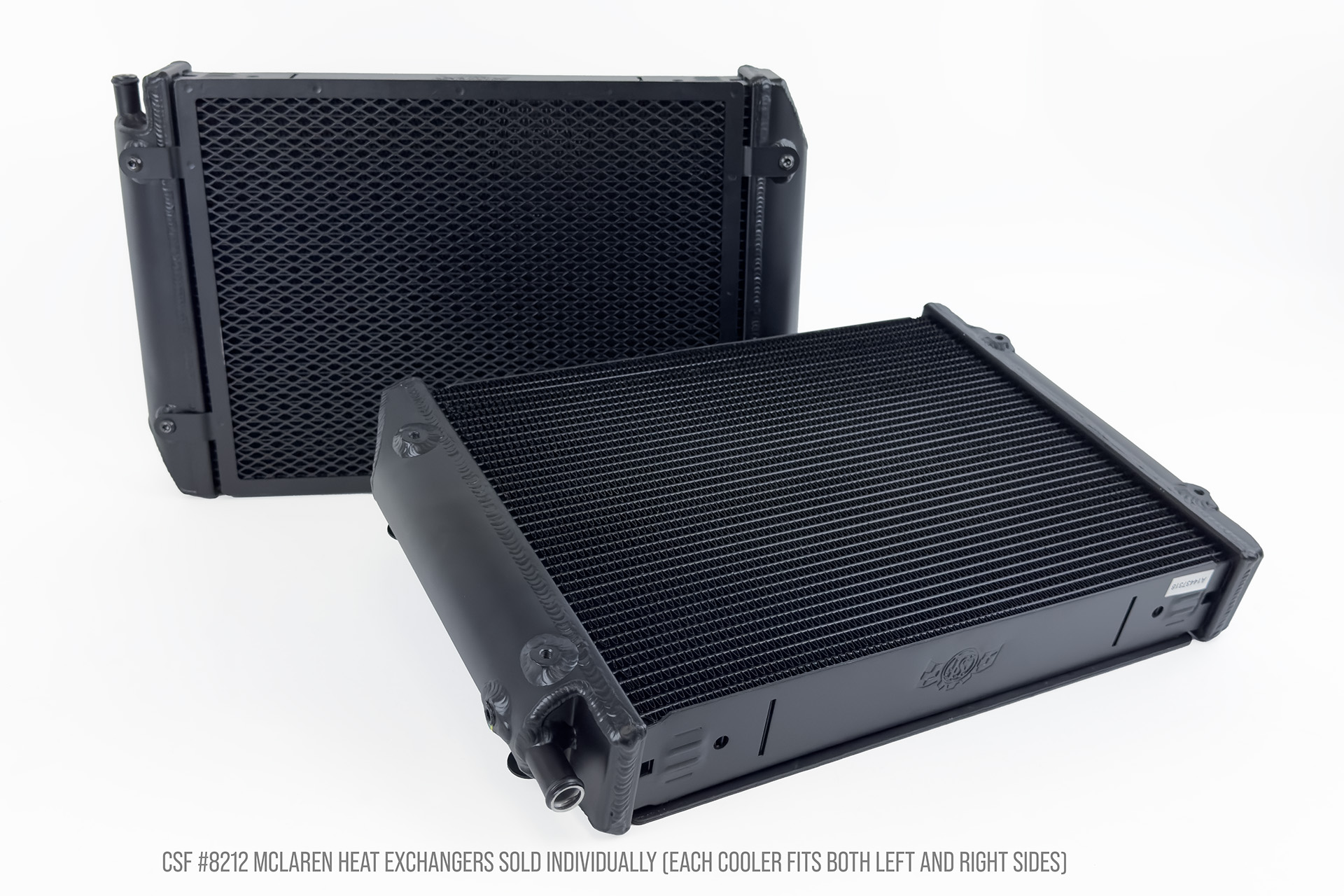

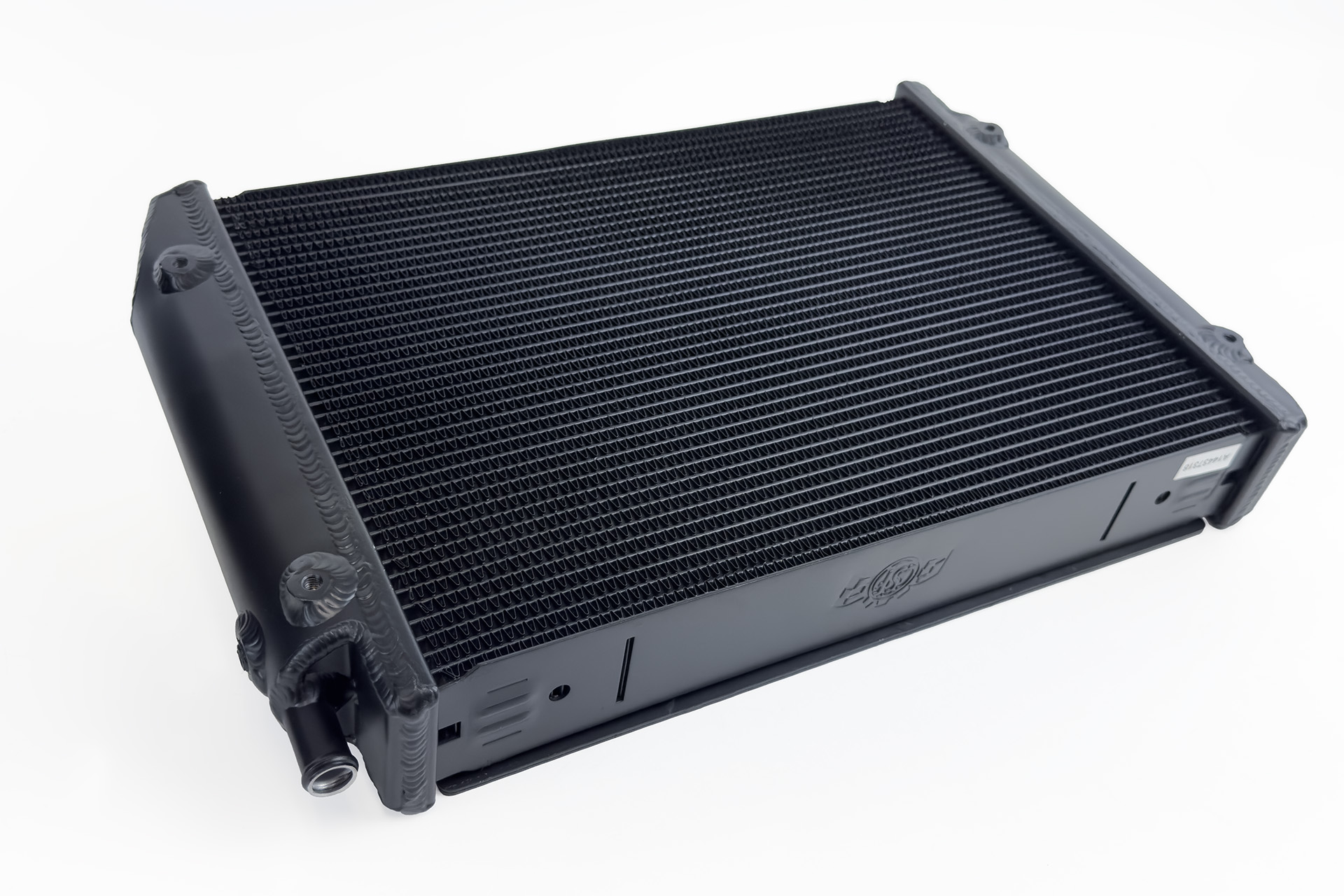

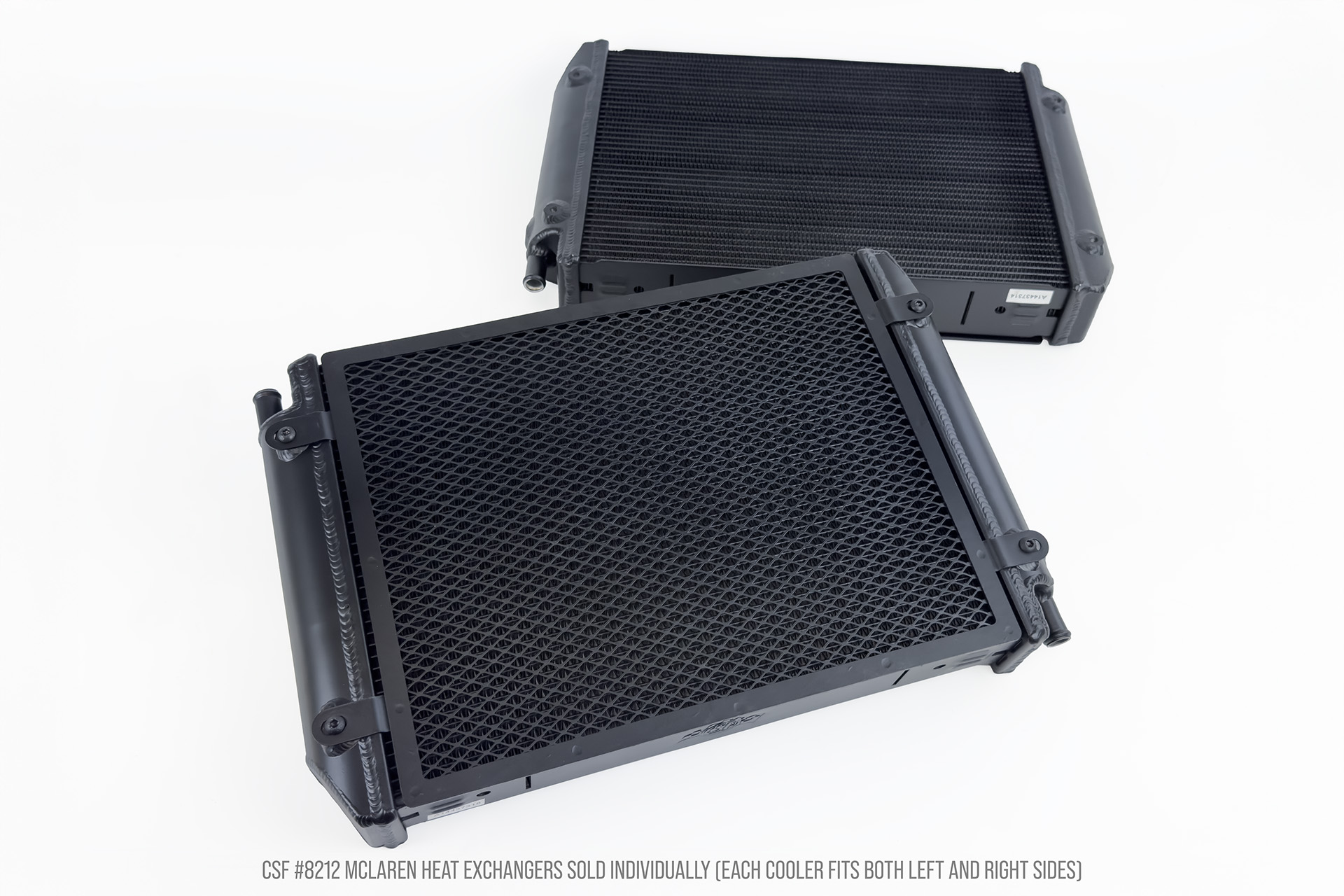

Product Images ( CSF #8212)

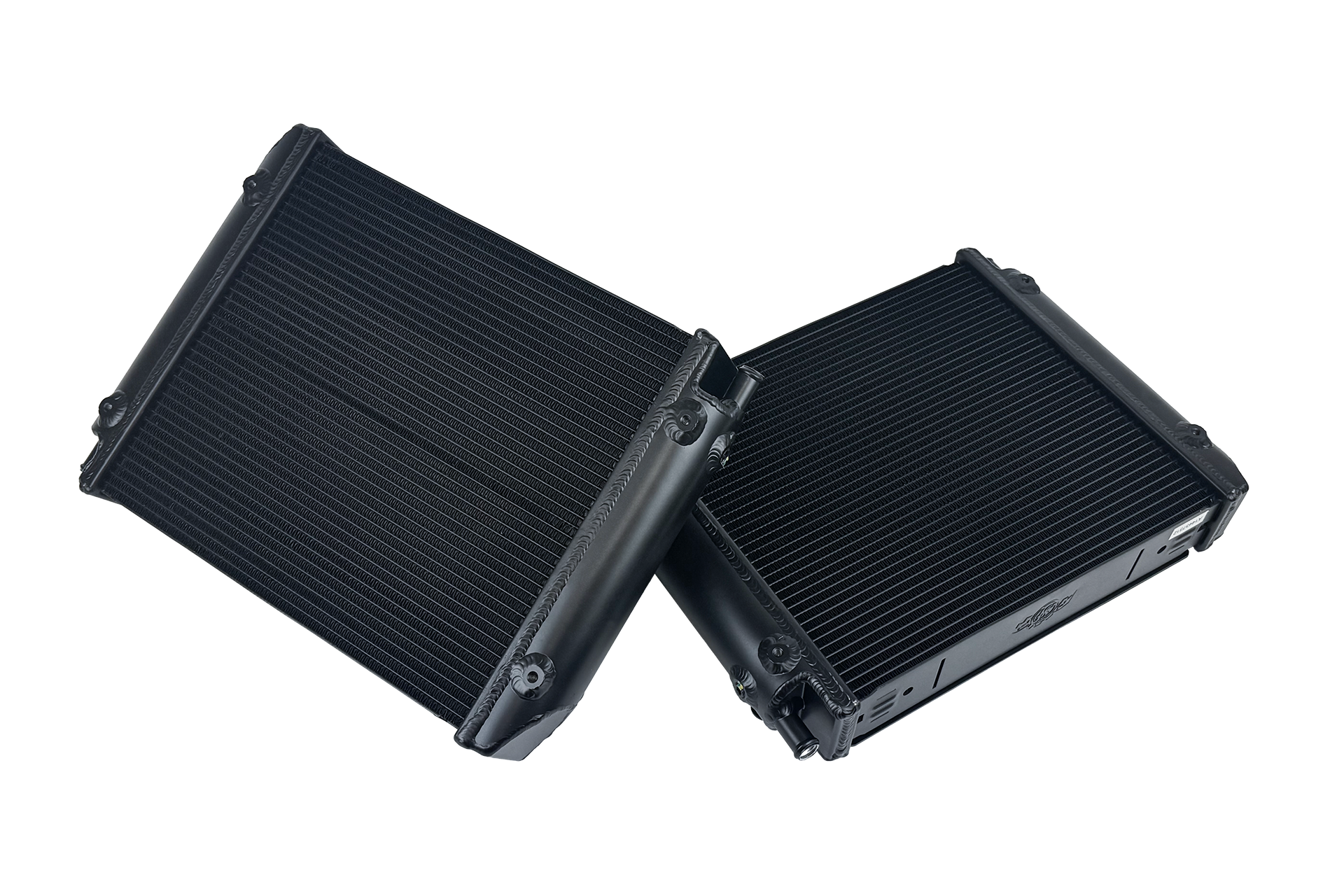

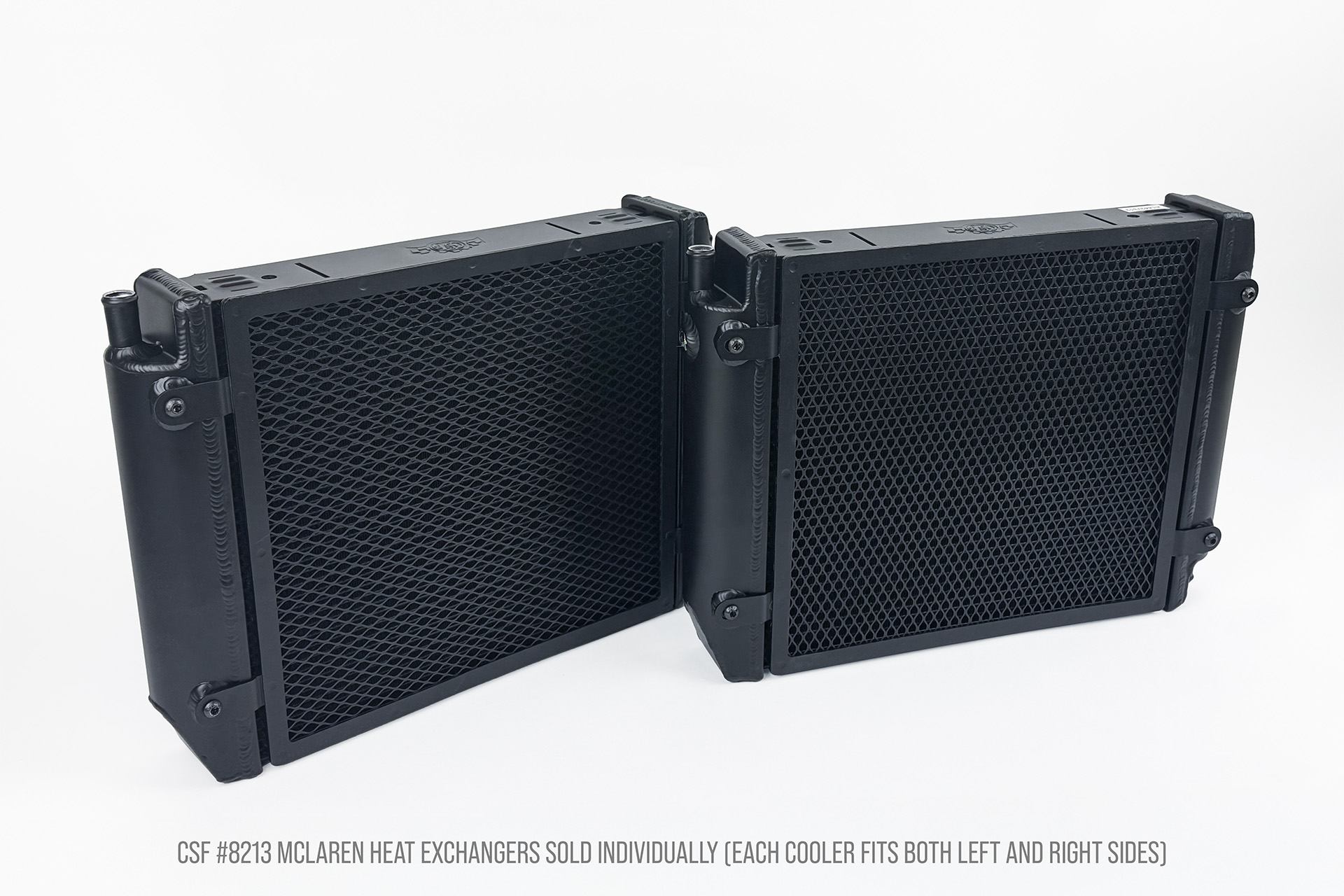

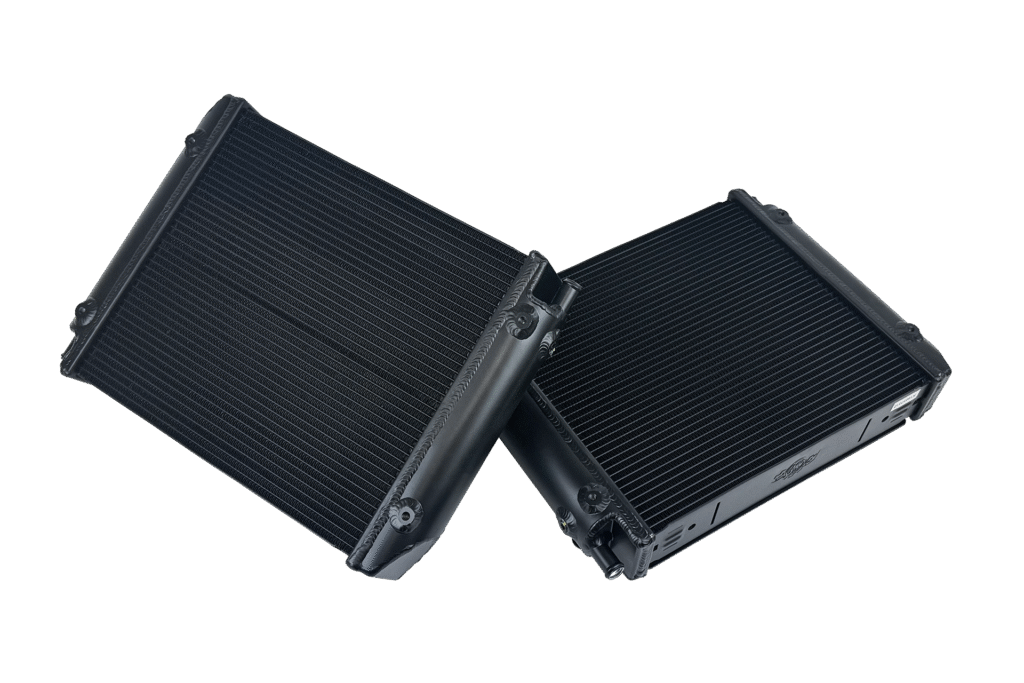

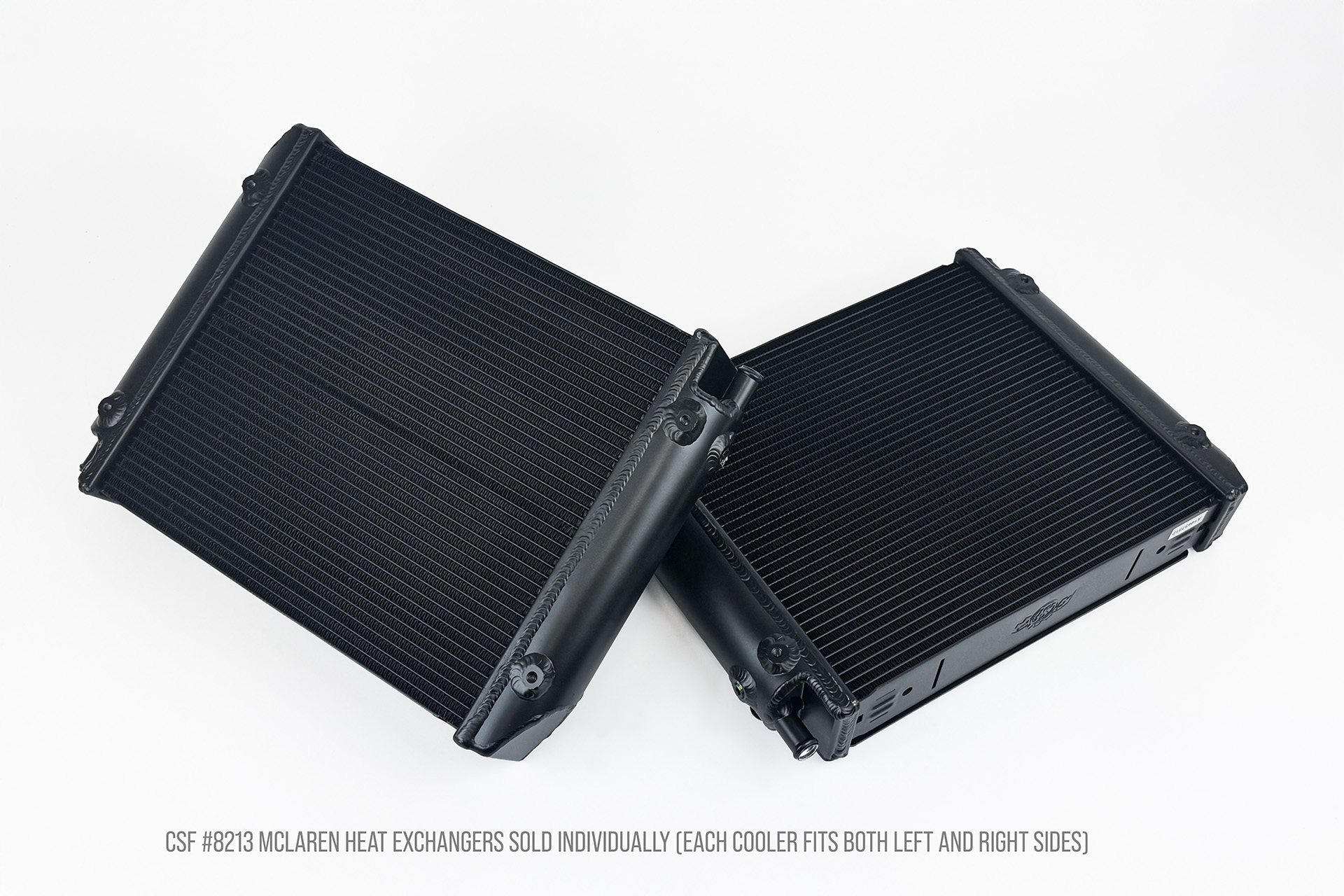

Product Images ( CSF #8213)

CSF McLaren 12C / 650S / 675LT / 570s / 600LT / 720S / 765LT / 750S / GT / GTS High-Performance Heat Exchangers Features (CSF #8212 & #8213):

• Sold individually – all applications require two Heat Exchangers (Left & Right)
• Significantly Reduces Intake Air Temperatures (IATs) for Maximum Performance (with Faster Heat Soak Recovery)
• 2-Row – 54mm Ultra-High-Performance Core
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design
• Ultra High-Performance 5-Pass Core Design & OEM Style Inlet/Outlet connections
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• Pre-plugged 1/8th NPT temperature sensor / bleeder ports
• 100% All Aluminum TIG-Welded Construction
• Includes Detachable Rock Guards
• Satin Black Finish for OEM+ Look
• True Plug-and-Play “Drop-in Fitment”

• CSF #8212 Applications:
  • 2015-2016 McLaren 650S (incl. Spider) *check VIN with Dealer – See Fitment Note*
  • 2016 McLaren 675LT (incl. Spider) *check VIN with Dealer – See Fitment Note*
  • 2016-2021 McLaren 570S (incl. Spider)
  • 2017-2019 McLaren 570GT
  • 2019-2021 McLaren 600LT (incl. Spider)
  • 2018-2023 McLaren 720S (incl. Spider)
  • 2021-2024 McLaren 765LT
  • 2024-2026 McLaren 750S (incl. Spider)
  • 2019-2023 McLaren GT
  • 2024-2026 McLaren GTS

• CSF #8213 Applications:
  • 2012-2014 McLaren MP4-12C (incl. Spider)
  • 2015-2016 McLaren 650S (incl. Spider) *check VIN with Dealer – See Fitment Note*
  • 2016 McLaren 675LT (incl. Spider) *check VIN with Dealer – See Fitment Note*

• CSF #8212 OEM Part Numbers:
  • 13L0183CP (Left & Right)
  • 11L0375CP (Left & Right)

• CSF #8213 OEM Part Numbers:
  • 11L0241CP (Left & Right)

• CSF #8212 MSRP/MAP: $1,395.00 USD each – Sold individually – all applications require two Heat Exchangers (Left & Right)

• CSF #8213 MSRP/MAP: $1,249.00 USD each – Sold individually – all applications require two Heat Exchangers (Left & Right)
